Esko Kongsberg BLD-DR6160 Knife Blades For Sale G42445510

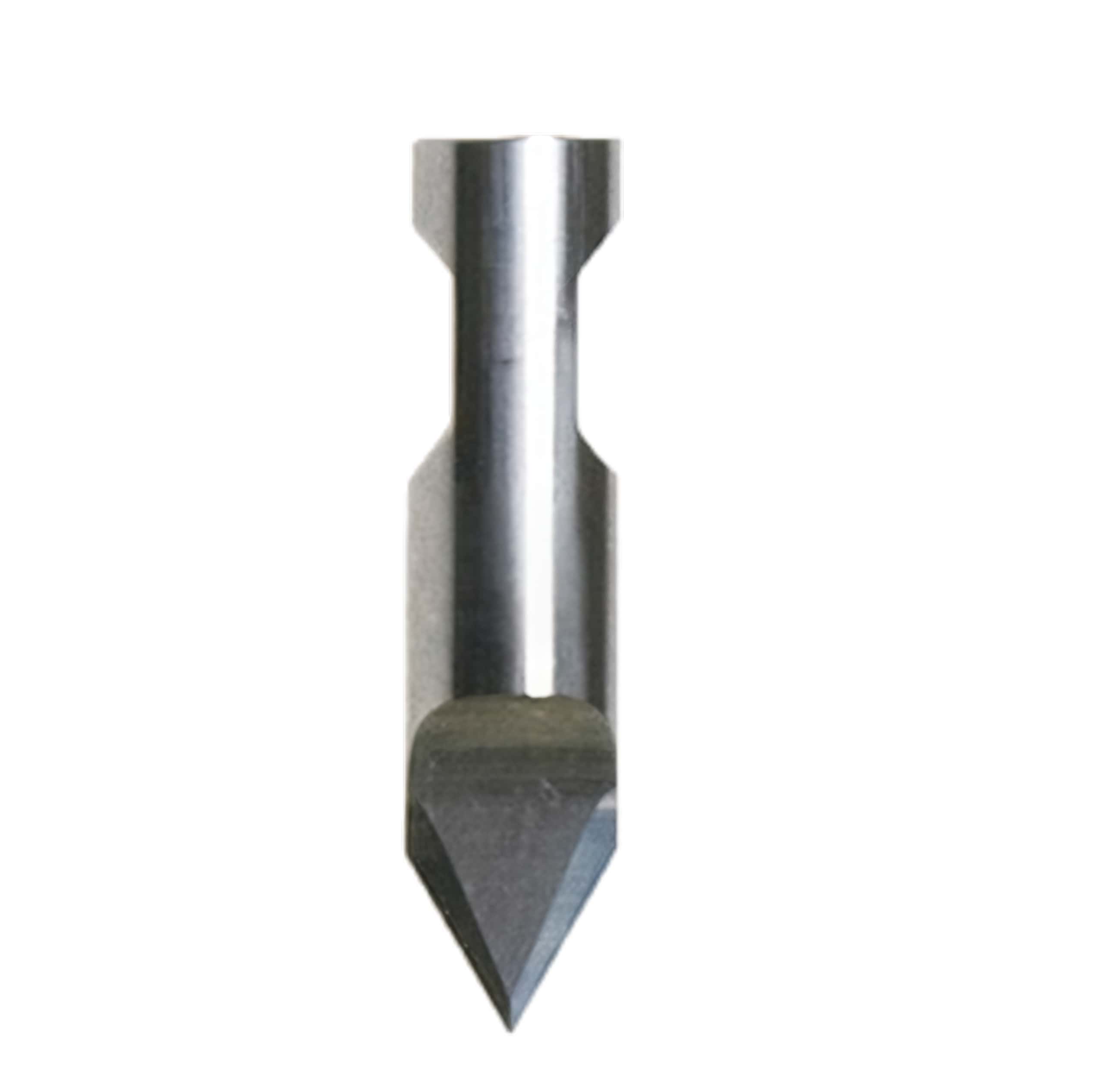

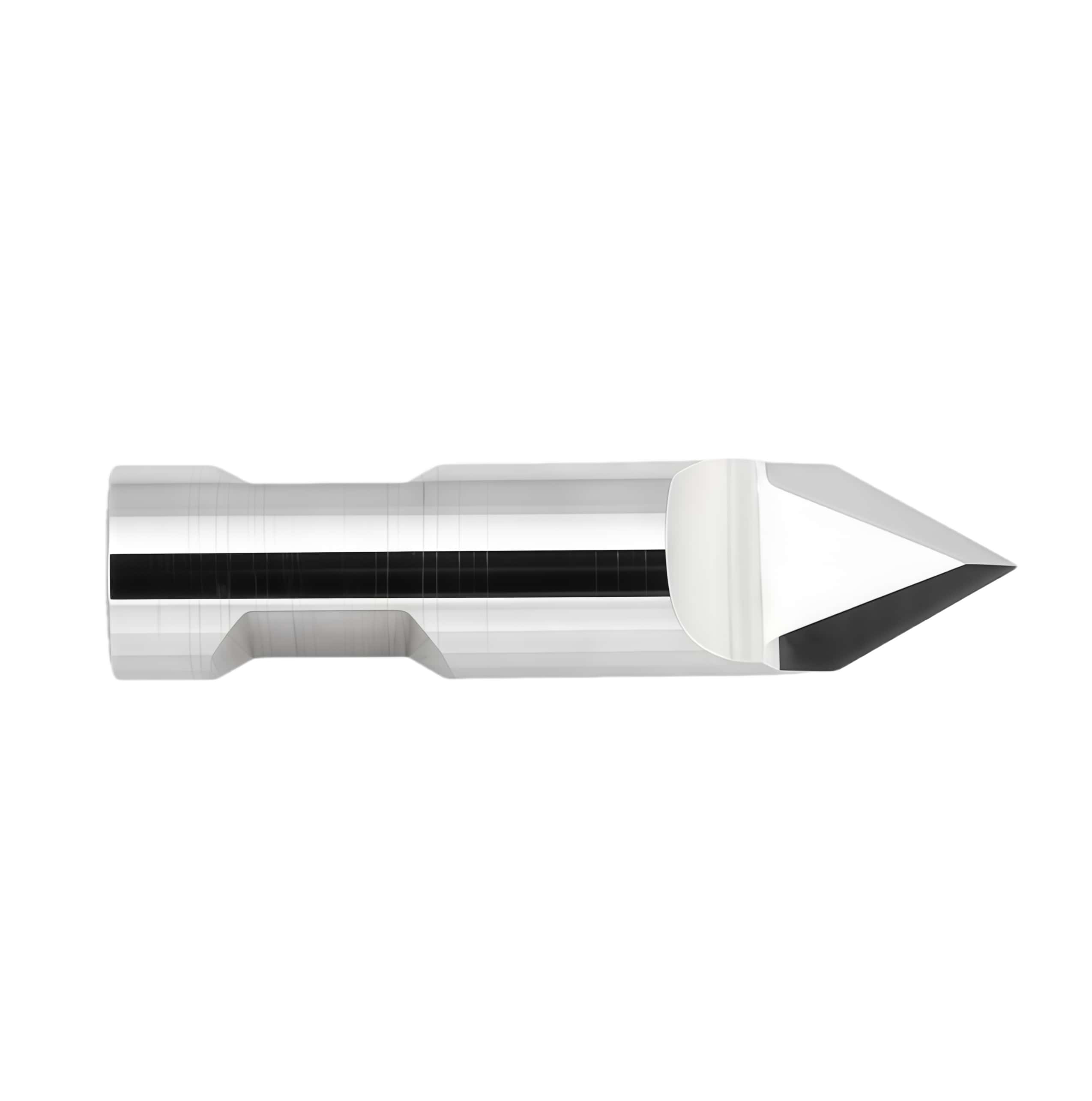

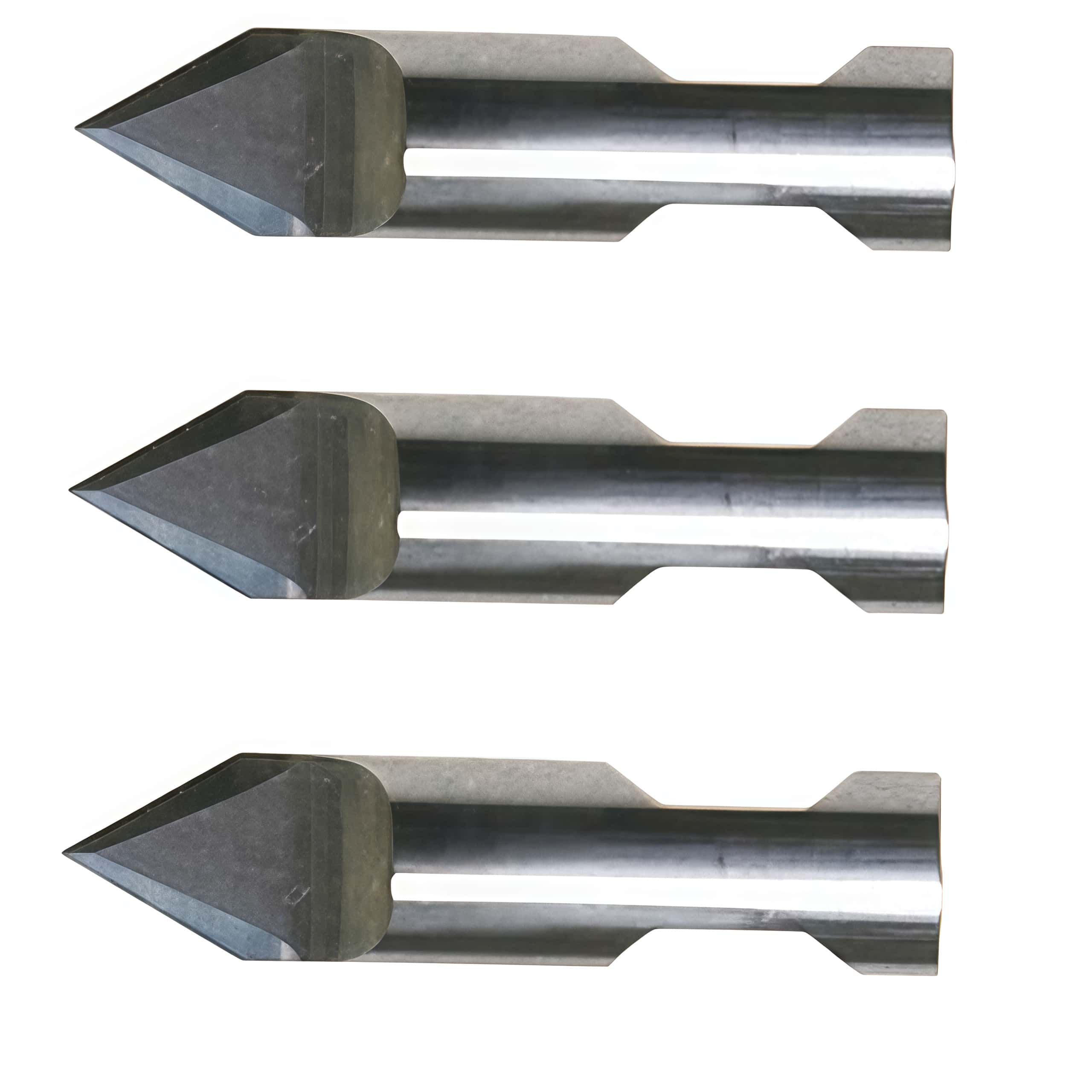

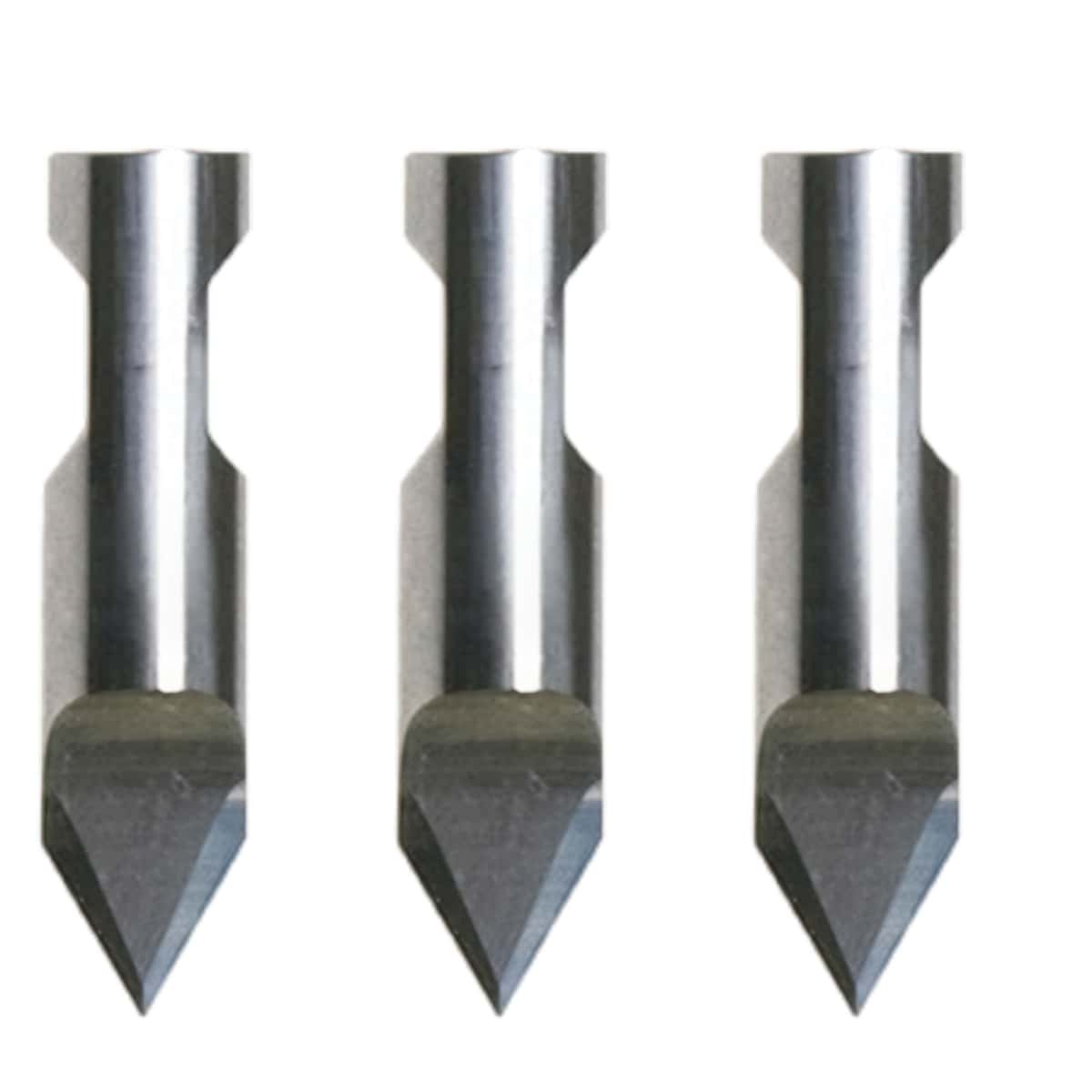

Esko Kongsberg BLD-DR6160 (part number G42445510 or 42445510) is a premium tungsten carbide double-edged static/drag cutting blade engineered for digital cutting tables. It is primarily manufactured for high-precision processing of thinner flexible or rigid materials, delivering long-lasting sharpne… Inquiry Now

Description

Esko Kongsberg BLD-DR6160 Cemented Carbide Knife Blades For Sale G42445510

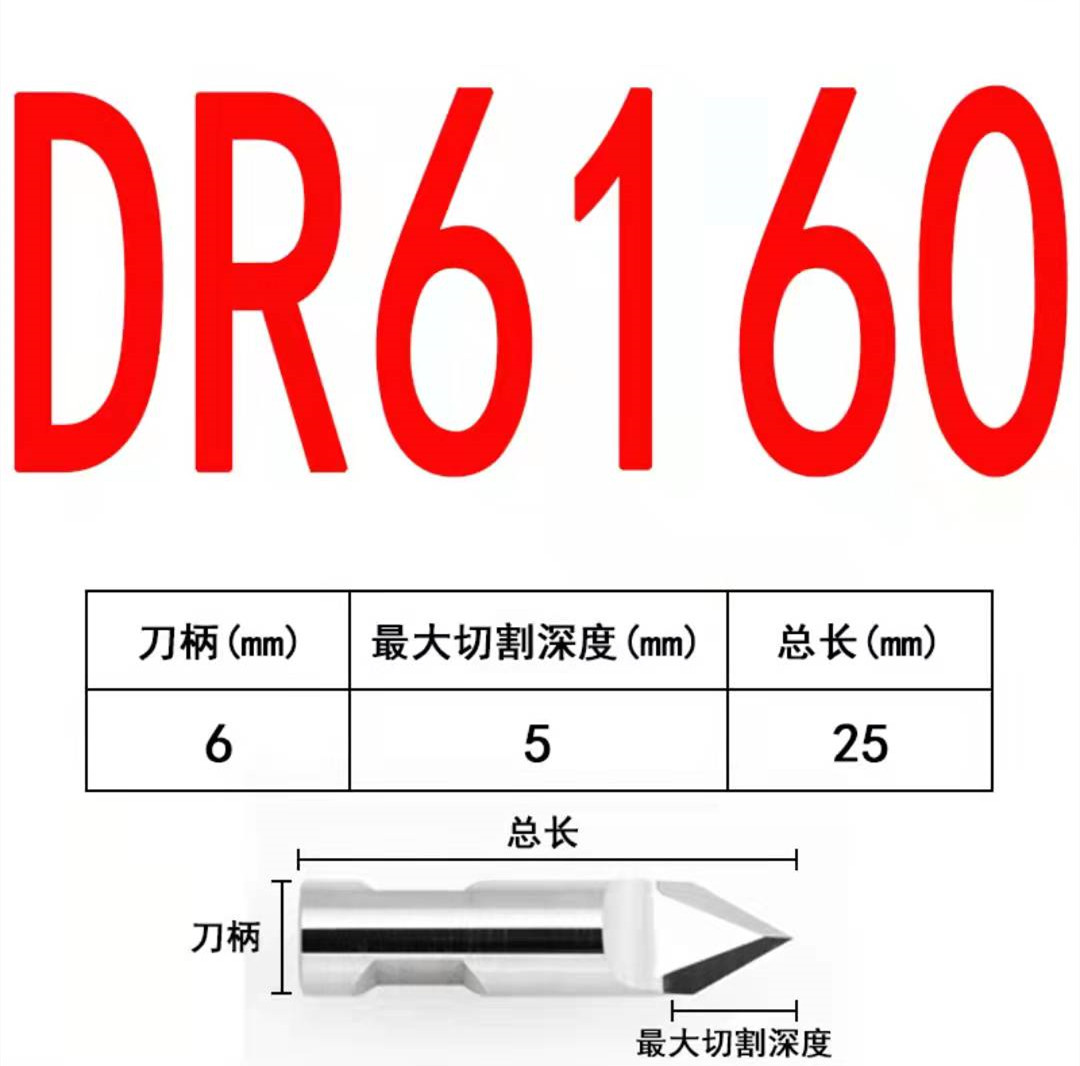

Technical Specifications

Material: High-purity Tungsten Carbide (HRA 89~92.5)
Blade Shape: Spear-headed
Cutting Angle: 2 x 30°
Shank Diameter: 6 mm
Maximum Cutting Thickness: 5 mm (3/16")

Recommended Materials

This blade is optimized for a clean finish on thin, dense substrates, including:

Solid folding cartons
Vinyl film and graphics
Thin plastics and styrene
Paper and leather

Machine Tool Configurations

To deploy the BLD-DR6160 blade on a Kongsberg Precision Cutting Systems table, you must match it with the correct tool head and adapter configuration:

Hi-Force Knife Tool: Supported on C, XP, and XE series using adapter 34068759.
VariCut Knife Tool: Supported on XE series tables using adapter 34061135.
Static Knife Tool: Supported on XE series tables using adapter 34061135.
Psaligraphy Knife Tool: Supported on C, XP, XL, XN, X, V, and XE series (no adapter required).
