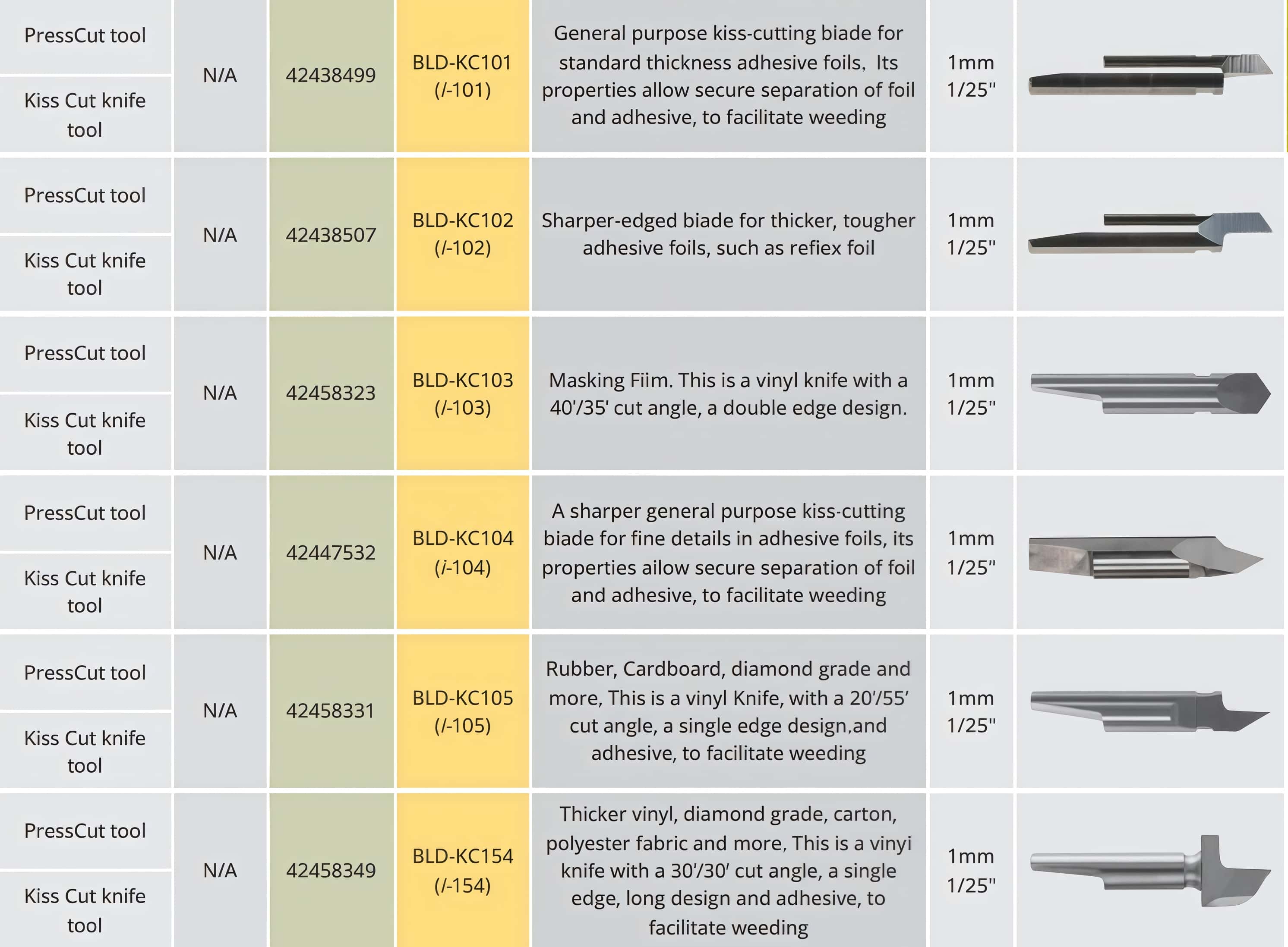

specifications:
|
Blade Model |
Knife Type |
Angle |
Height (mm) |
Width (mm) |
Thickness (mm) |
Max Cutting Depth (mm) |
Recommended Materials |
Notes |
|
Drag blade, Kiss Cut |
35° |
18.5 |
3.0 |
3.0 |
1.0 |
Folding carton, magnetic foil, masking film, polycarbonate, vinyls |
General purpose blade for standard thickness adhesive foils |
|
|
Drag blade, Kiss Cut |
35° |
18.5 |
3.0 |
3.0 |
1.0 |
Cardstock, magnetic foil, masking film, polycarbonate, reflective/self-adhesive vinyls |
Sharper-edged for tougher adhesive foils |
|
|
Drag blade, Kiss Cut |
35° |
18.5 |
3.0 |
3.0 |
1.0 |
Folding carton, magnetic foil, masking film, polycarbonate, reflective/self-adhesive foil |
Drag and light cut design |
|
|
Not clearly detailed |
- |
- |
- |
- |
- |
- |
No detailed specs found |
|
|
Not clearly detailed |
- |
- |
- |
- |
- |
- |
No detailed specs found |
|
|
Not clearly detailed |
- |
- |
- |
- |
- |
- |
No detailed specs found |
Most BLD-KC101 to BLD-KC103 blades share similar dimensions: 18.5 mm height, 3 mm width and thickness, 35° angle, and max cutting depth of 1 mm. They differ mainly in cutting edge characteristics and recommended material focus (e.g., tougher adhesive vinyls for BLD-KC102). There is limited publicly available detailed info on BLD-KC104, BLD-KC154, and BLD-KC105 blades.
