Key features of the iEcho E76 blade:

· Material: Tungsten steel (high-performance, wear-resistant)

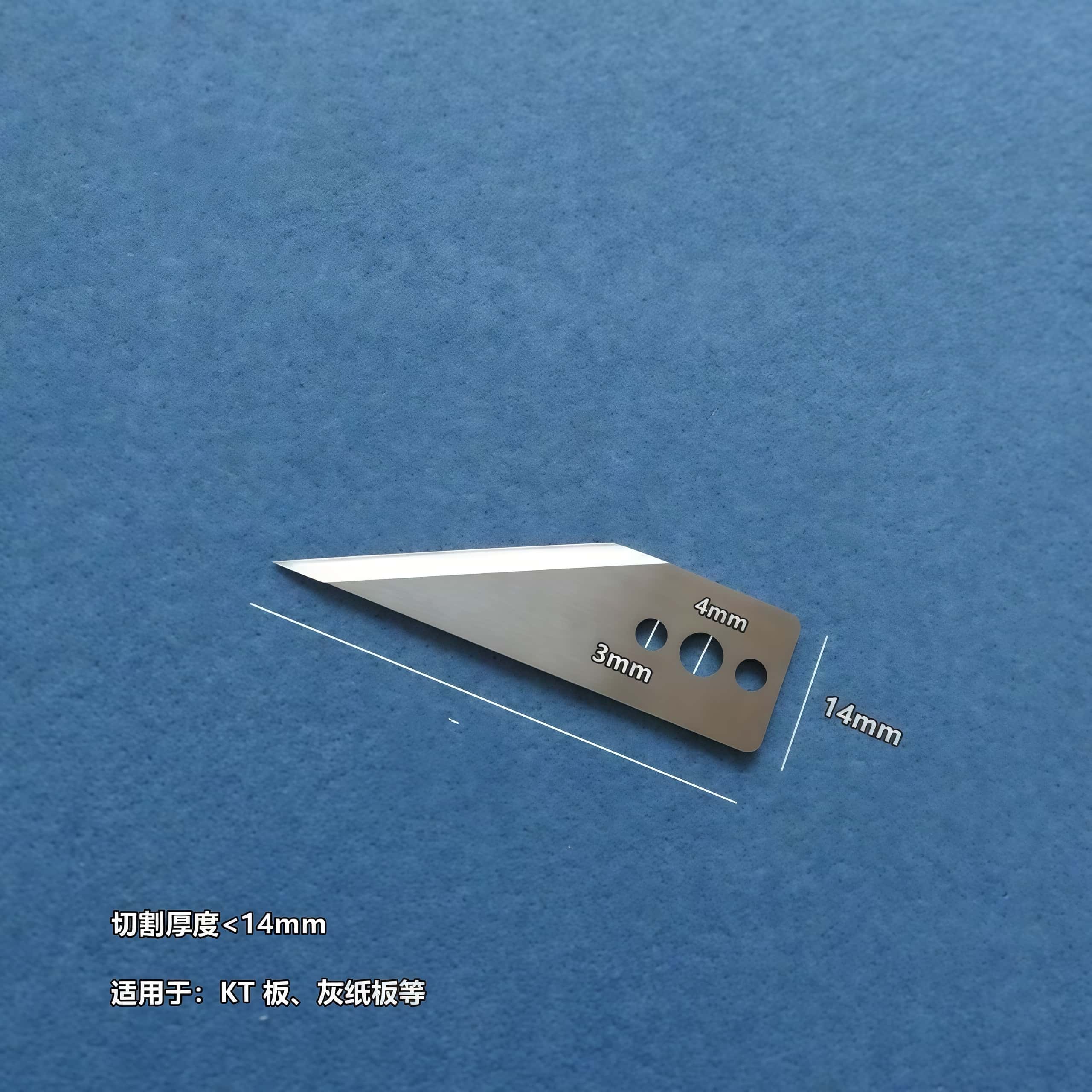

· Dimensions: 1 mm thickness, 14 mm width, 48 mm total length

· Maximum cutting thickness: 14 mm

· Applications: KT board, grey board, carbon fiber, corrugated cardboard, glass fiber, leather, non-woven, technical fabric, polyester, rubber

· Blade type: V-Cut, for making precise bevels and channels (common in signage/graphics and packaging)

Variants:

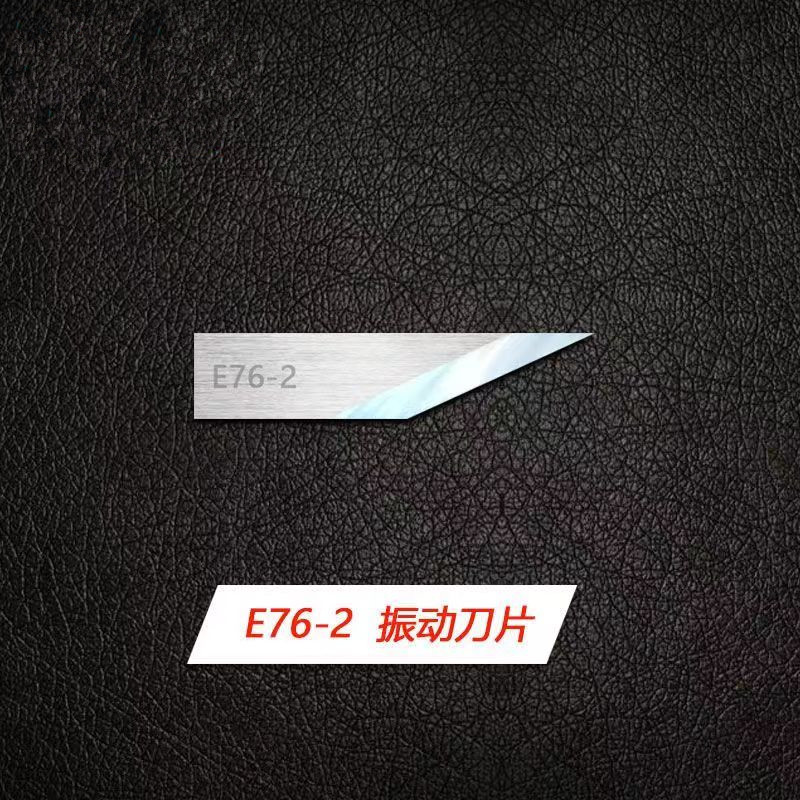

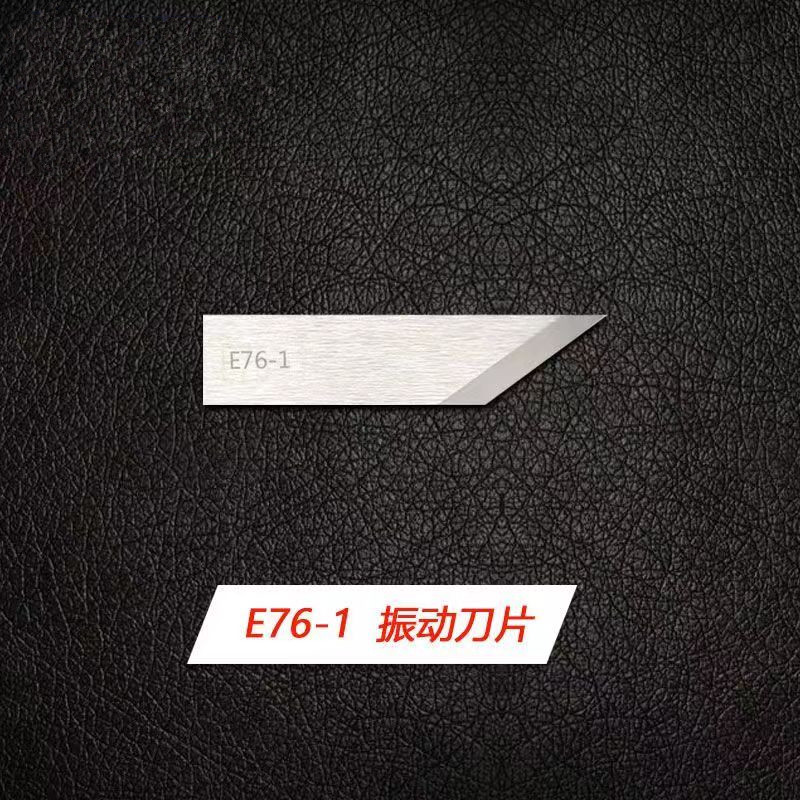

· E76-1 and E76-2 blades are oscillating knife variants suited for demanding industrial applications. All three (E76, E76-1, E76-2) are referenced as compatible and used within the same OEM standards for leather, technical textiles, and composites.

Comparison/Compatibility:

· The E76 V-Cut blade is optimized for V-Cutting, while E76-1 and E76-2 are likely oscillating blades, differing slightly in geometry or application specifics but all designed for iEcho machines.

· These blades are typically used in V-Cut modules and oscillating knife holders, ensuring compatibility across a range of iEcho automatic digital cutter platforms.

Ordering and Replacement:

· Multiple suppliers offer these blades, usually sold individually or in packs, and are produced to exceed OEM requirements for quality and durability.

Summary Table: iEcho E76 Series Knife Blades
