This list decodes and breaks down the specifications for the Esko Kongsberg 6mm multi-purpose milling and router bits provided. All these items are 6mm shank diameter, single-flute, down-cut (MDS series) industrial tools, despite being labeled as "up-cut" in some generic descriptions.
Part Number Naming Convention
· BIT-MDS06: 6mm Shank Diameter, Multi-Purpose Down-Cut Series.
· First 2 Digits (e.g., 20, 30, 40): Cutting Edge / Tip Diameter (2.0mm, 3.0mm, 4.0mm).
· Next 2 Digits (e.g., 04, 06, 11): Flute Length / Max Cutting Depth (4mm, 6mm, 11mm).
· Final 2 Digits (e.g., 50, 64): Overall Tool Length (50mm, 64mm).

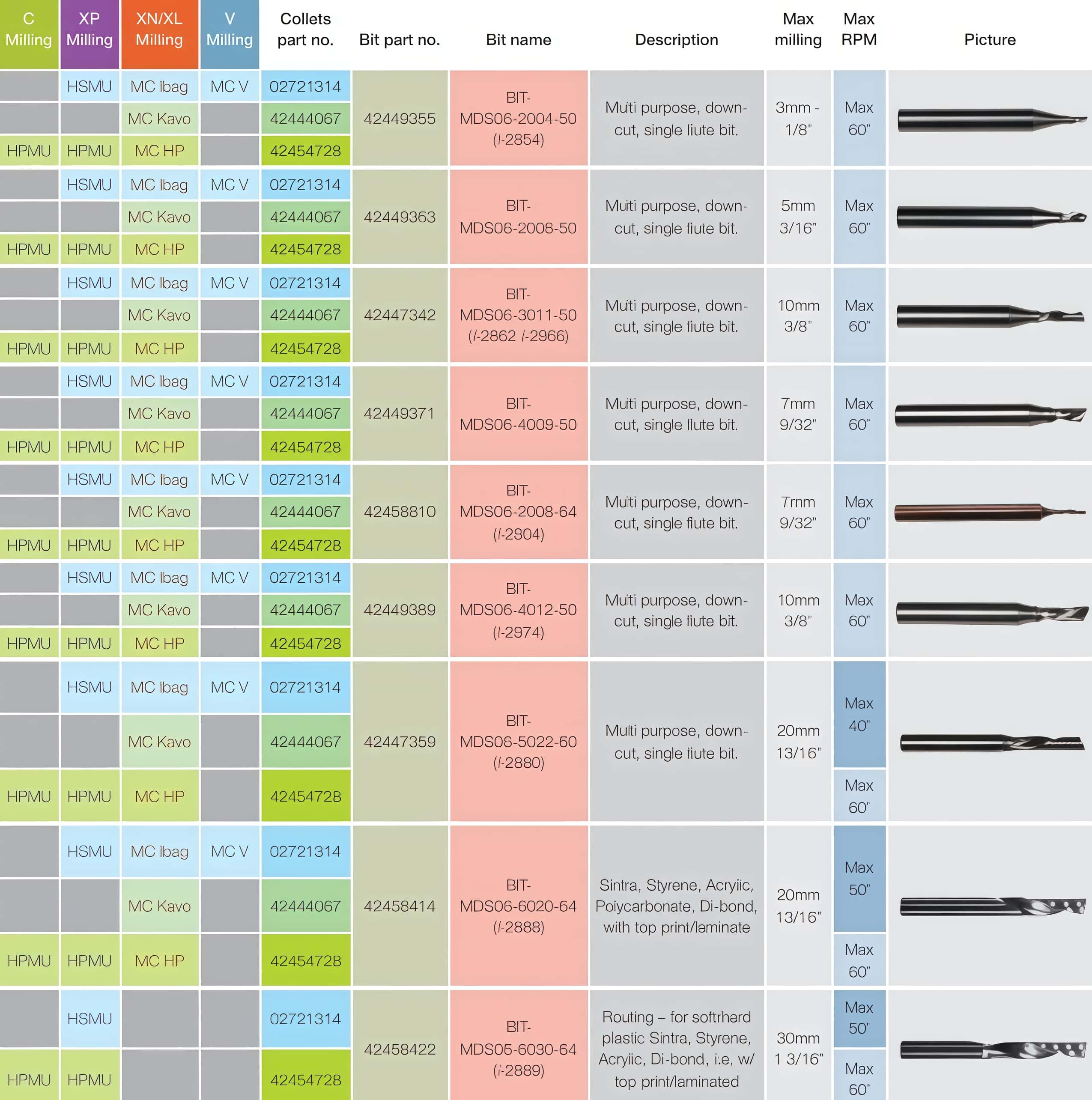

Specifications by Part Number
|
Esko Part Number |
Global Product Code |
Tip Diameter |
Flute Length (Max Depth) |
Overall Length |
Official Replacement & Source |
|
2.0 mm |
4 mm |
50 mm |
View series at China-Oyea Industrial |
||
|
3.0 mm |
6 mm |
50 mm |
|||
|
3.0 mm |
11 mm |
50 mm |
|||
|
4.0 mm |
8 mm |
50 mm |
|||
|
2.0 mm |
8 mm |
64 mm |
|||
|
4.0 mm |
12 mm |
50 mm |
|||
|
6.0 mm |
20 mm |
64 mm |
|||
|
6.0 mm |
30 mm |
64 mm |
|||
|
5.0 mm |
22 mm |
60 mm |
Key Application Guidance
· MDS Down-Cut Action: These push chips downward into the cut. This leaves a flawless top surface edge but requires efficient extraction underneath or shallow passes to manage chip load.
· Target Materials: Best optimized for running on sandwiches, foams, thin plastics, and materials where top-layer delamination or fraying must be avoided.
