ANGLE
3°
KNIFE HEIGHT
52,00 mm
THICKNESS
1,50 mm
MAX. CUTTING DEPTH
35,00 mm
KNIFE TYPE
Oscillating blade, Weldon
KNIFE/BLADE MOUNTING
round Ø 6 mm

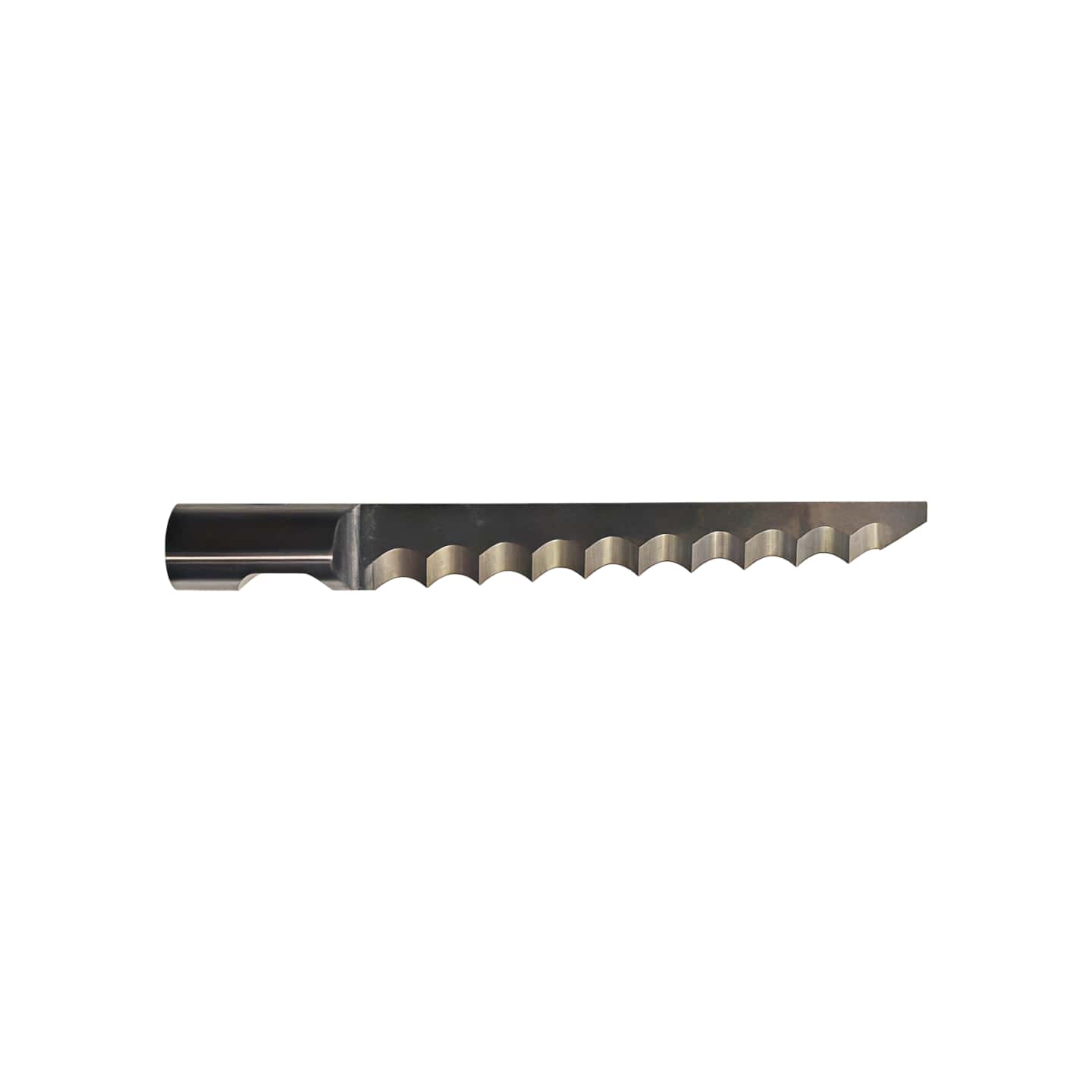

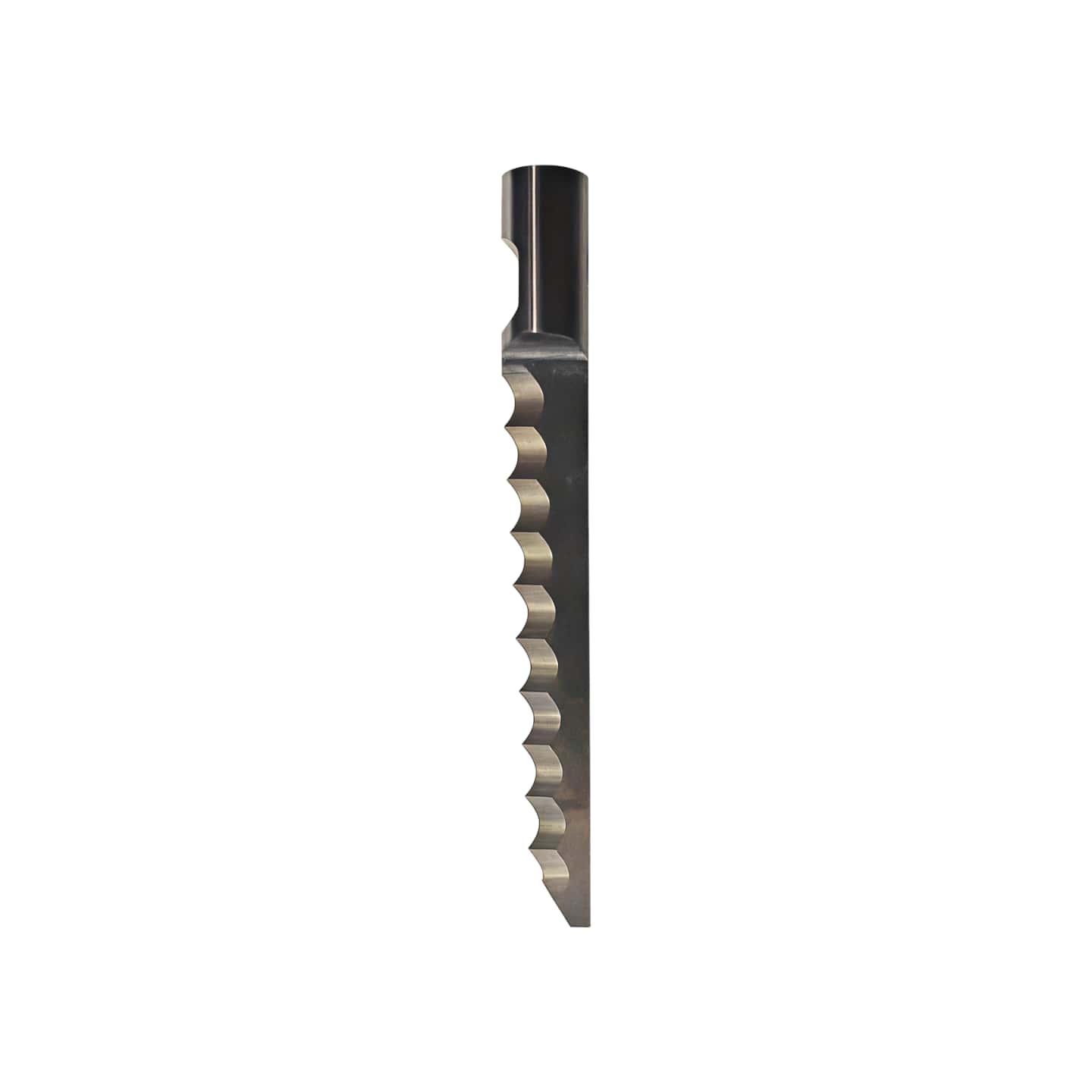

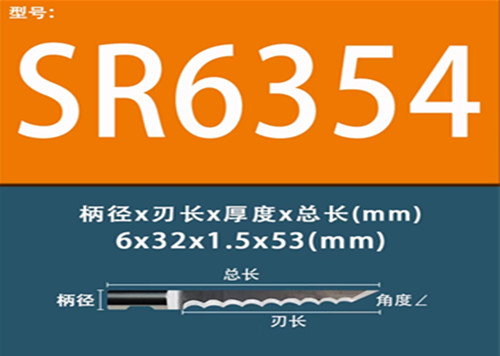

Key Specifications

• Blade Geometry: Single-edge round (SR) with an offset tip (lag).
• Shank Type: 6 mm cylindrical shank (Weldon-style mounting) providing high stability and minimal vibration.
• Blade Thickness: 1.5 mm (,006").
• Overall Length: 53 mm (52-53 mm depending on aftermarket measurement tolerances).
• Cutting Edge: Serrated edge designed to minimize heat generation and friction.
• Tip Profile: Flattened tip, which increases maximum cutting speed while actively protecting underlying PVC cutting mats and underlays.
• Material Composition: Premium Tungsten Carbide (Hard Metal) for maximum structural rigidity and extended tool lifespan.

Recommended Target Materials

Because of its serrated geometry and thick profile, it slices through dense, flexible, and sandwich-structure media without binding:

• Paper Honeycomb Panels and thick display carton
• Dense Foams (e.g., Polyethylene foam, foam board)
• Heavy Corrugated Cardboard and fluted packaging substrates
• Tough Industrial Textiles and composite fibers
