This is the technical specification list for the Esko Kongsberg 6mm Multi-Purpose Down-Cut Milling Router Bits line.

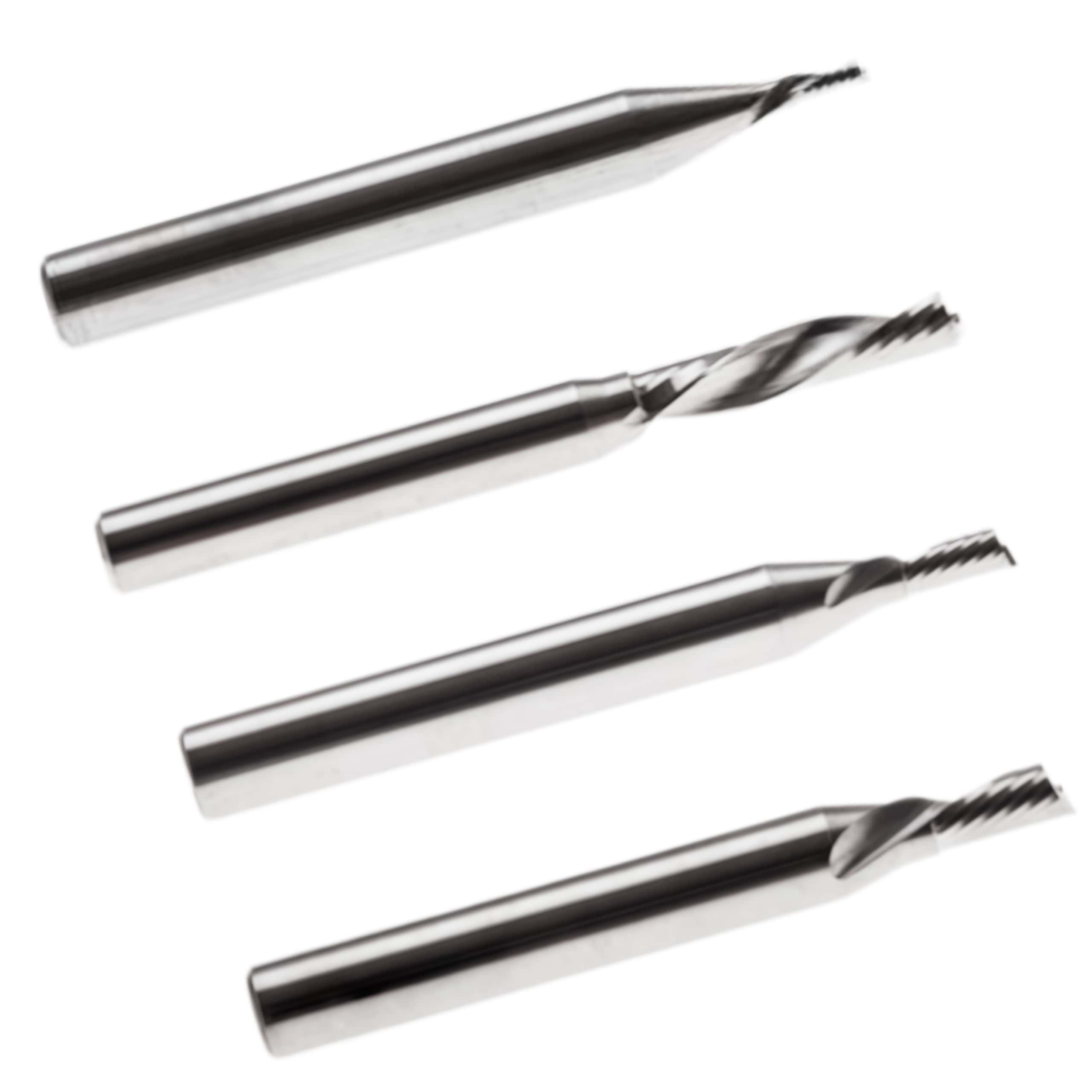

These bits feature a 6mm shank diameter and a single-flute solid carbide down-cut spiral geometry. The downward chip removal forces the material down against the table surface, which guarantees a cleaner top edge finish and prevents shifting on vacuum beds when cutting thin or flexible substrates like sandwich panels, plastics, MDF, ACM, and aluminium.

The complete breakdown of your part numbers, official Esko code matrices, and exact physical dimensions is detailed in the reference table below:

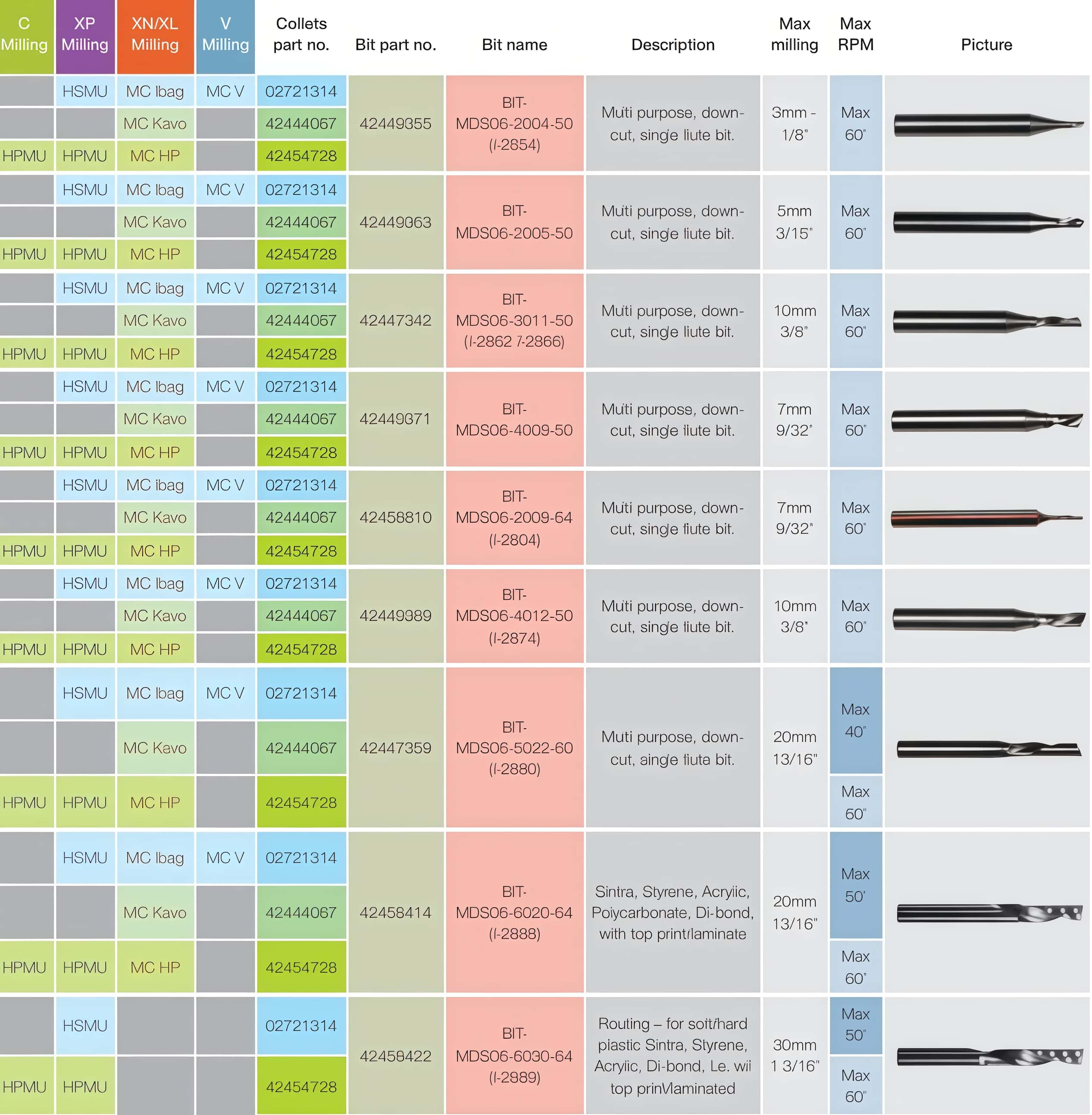

Esko Kongsberg 6mm Down-Cut Specification Matrix

Understanding the Esko Part Number Code (BIT-MDS06-XXXX-XX)

· BIT: Tooling category (Milling Bit).

· MDS: Multi-purpose, Down-cut, Single flute.

· 06: 6.0 mm Shank Diameter.

· XXXX: First two digits specify Cutting Diameter (e.g., 20 = 2.0mm); last two digits specify Flute Cutting Length (e.g., 11 = 11mm).

· XX (End suffix): Overall physical tool length in millimetres (e.g., 50 = 50mm, 64 = 64mm).
