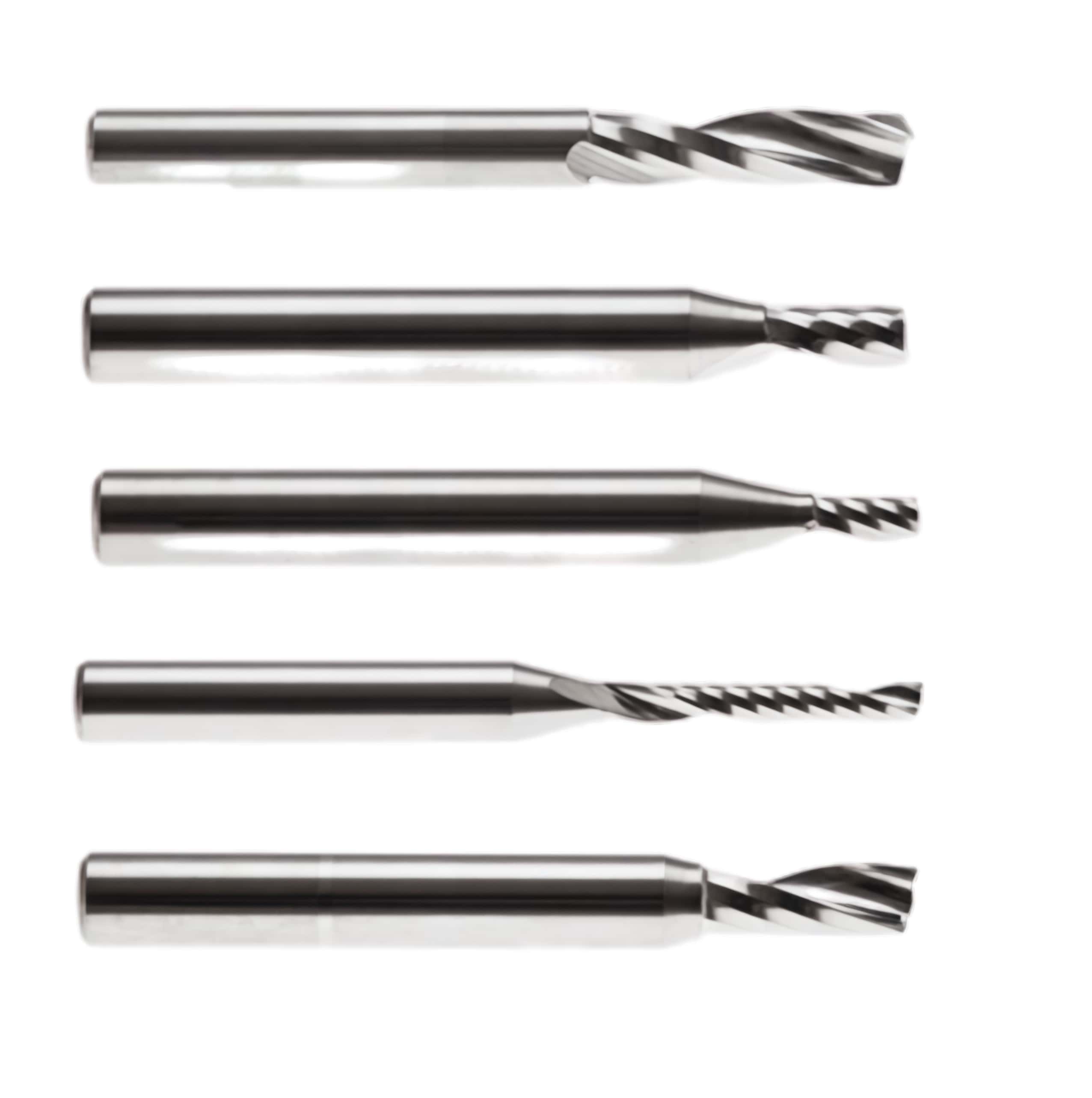

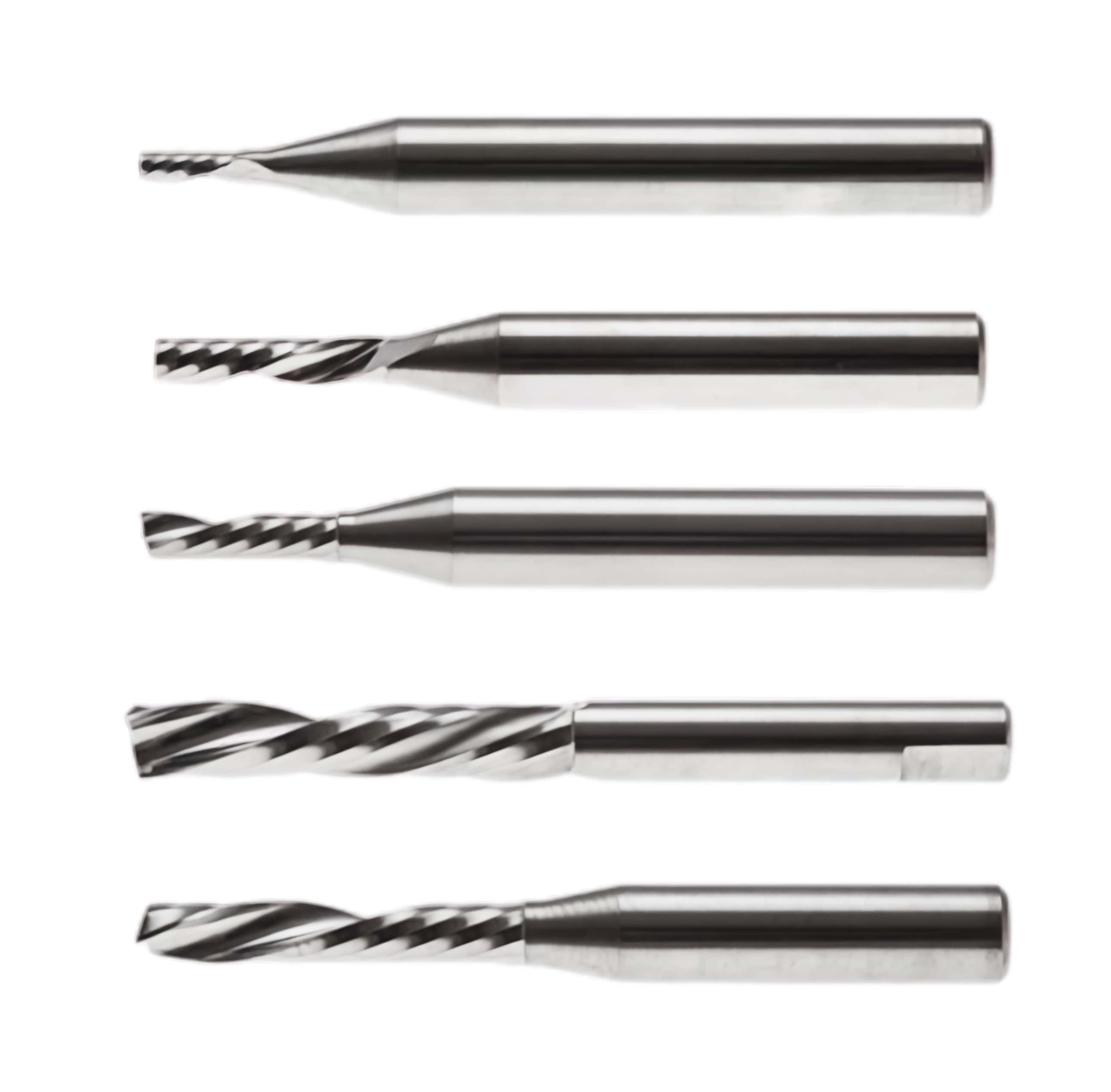

Esko Kongsberg 6 And 8mm Super Sharp Up Cut Milling Router Bits

Esko Kongsberg 6mm and 8mm Super Sharp Up-Cut Milling Router Bits are high-performance solid carbide tools designed specifically for industrial CNC finishing tables. The right-hand up-cut spiral design rapidly clears chips upward, reducing heat and friction when milling thick or dense materials like… Inquiry Now

Description

Esko Kongsberg 6 And 8mm Super Sharp Up Cut Milling Router Bits

Esko Kongsberg 6 And 8mm Super Sharp Up Cut Milling Router Bits

The provided data contains a catalog list of Esko Kongsberg Super Sharp Acrylic Up-Cut Single Flute Milling Router Bits. These specialized CNC tools are engineered for high-clarity edge finishing on materials like acrylic, plastic, and wood.

The technical specifications embedded within the Kongsberg part numbering convention decode as follows:

· BIT-AUS: Acrylic Up-cut Single flute.

· 06 / 08: Shank diameter in millimetres (6mm or 8mm).

· First two digits after shank: Cutting tip diameter in millimetres (e.g., 20 = 2.0mm, 30 = 3.0mm).

· Next two digits: Flute length / max milling thickness in millimetres (e.g., 06 = 6mm, 22 = 22mm).

· Final two digits: Total length of the bit in millimetres (e.g., 50 = 50mm).

Kongsberg 6mm & 8mm Up-Cut Routing Bit Catalog

Kongsberg Bit Code	Esko Material ID	Legacy / i-Cut Code	Tip Diameter	Flute Length	Total Length
BIT-AUS06-2006-50	G42437897	—	2.0 mm	6 mm	50 mm
BIT-AUS06-3006-50	G42445916	i-8008	3.0 mm	6 mm	50 mm
BIT-AUS06-3011-50	G42437889	i-8005	3.0 mm	11 mm	50 mm
BIT-AUS06-3014-50	G42458992	—	3.0 mm	14 mm	50 mm
BIT-AUS06-3022-50	G42449439	—	3.0 mm	22 mm	50 mm
BIT-AUS06-4008-50	G42445924	i-8011	4.0 mm	8 mm	50 mm
BIT-AUS06-4012-50	G42437848	—	4.0 mm	12 mm	50 mm
BIT-AUS06-4022-50	G42442665	—	4.0 mm	22 mm	50 mm
BIT-AUS06-5012-50	G42451047	—	5.0 mm	12 mm	50 mm
BIT-AUS06-5022-58	G42443762	—	5.0 mm	22 mm	58 mm
BIT-AUS06-6012-50	G42451054	—	6.0 mm	12 mm	50 mm
BIT-AUS06-6022-58	G42442707	—	6.0 mm	22 mm	58 mm
BIT-AUS06-6032-64	G42438069	—	6.0 mm	32 mm	64 mm
BIT-AUS08-8042-76	G42454561	—	8.0 mm	42 mm	76 mm
BIT-AUS08-8055-90	G42454579	—	8.0 mm	55 mm	90 mm
