Esko Kongsberg 6mm Down Cut Milling Router Bits For Kongsberg Cutting Systems

Esko Kongsberg 6mm milling router bits represent a specific series of solid carbide cutters engineered for high-precision CNC routing. These "ADS" family bits feature a 6mm shank and a specialized geometry optimized for clean finishes on hard plastics, acrylic, wood, aluminum, and dense protective f… Inquiry Now

Description

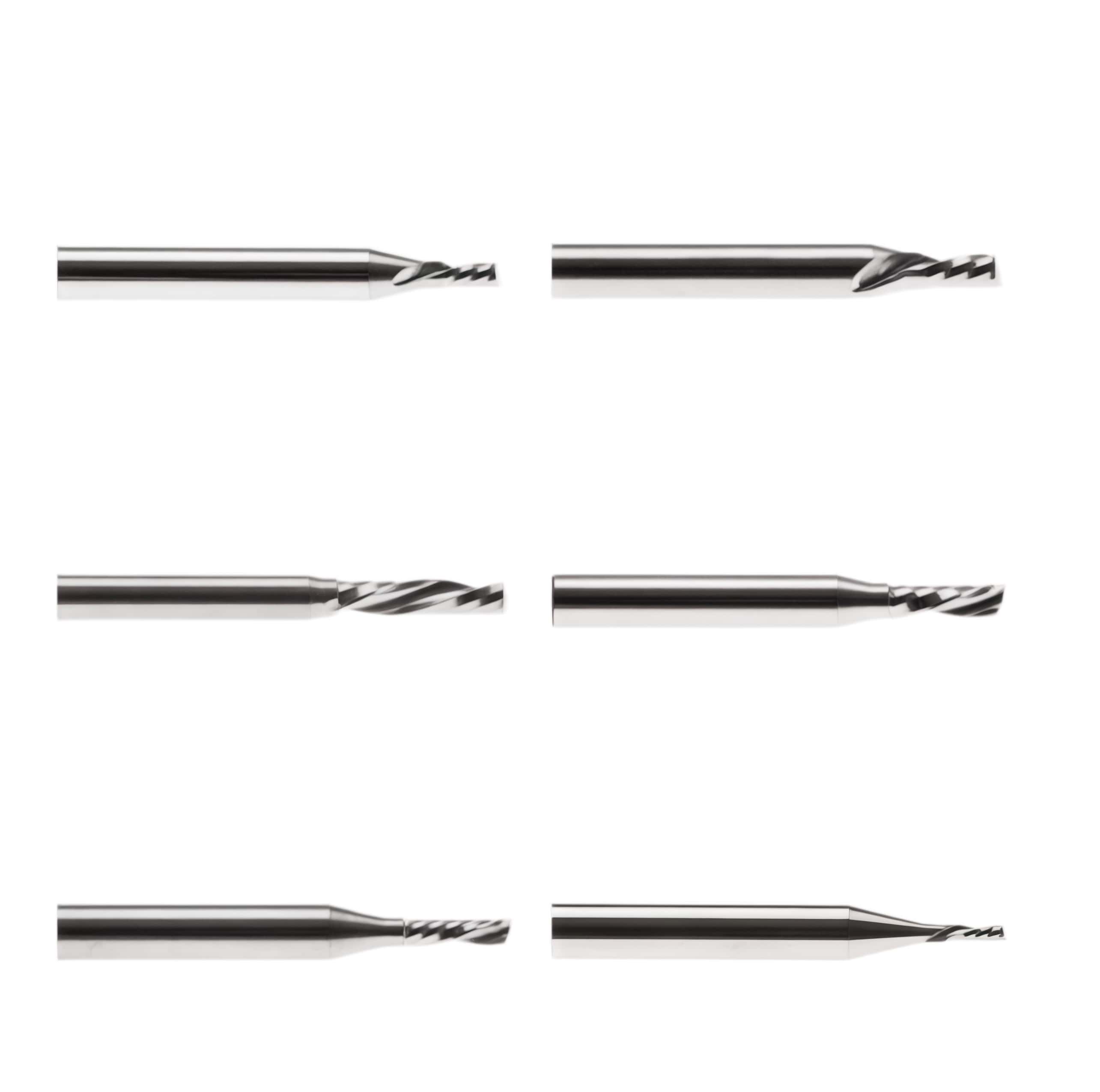

Esko Kongsberg 6mm Down Cut Milling Router Bits For Kongsberg Cutting Systems

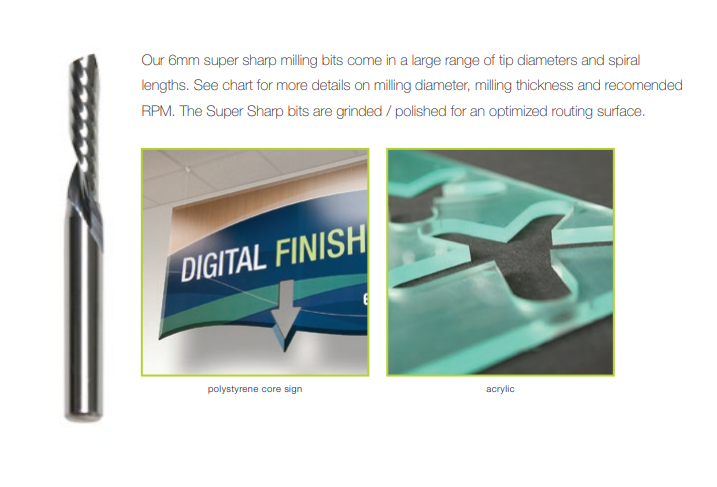

Esko Kongsberg 6mm Super Sharp Down Cut Milling Router Bits are high-performance solid carbide tools engineered specifically for precision CNC routing on Esko Kongsberg digital cutting tables. Manufactured by specialized engineering firms such as Shenzhen Oyea Machinery, these premium aftermarket and OEM-grade bits feature a downward spiral flute geometry. This design forces cutting chips and material downwards, securing thin or flexible substrates against the vacuum matrix while delivering a flawless, burr-free top surface edge.

Technical Specifications Breakdown

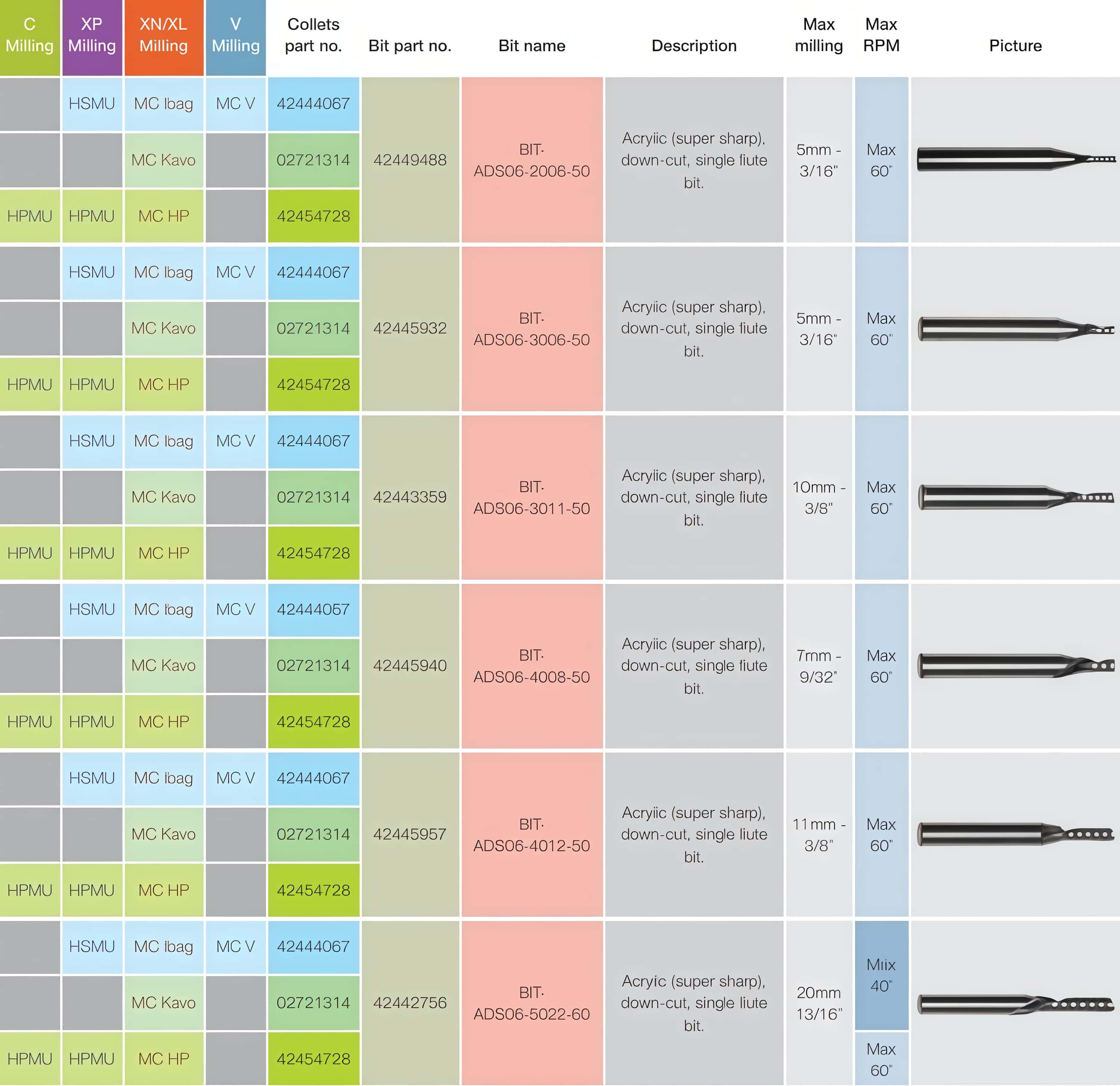

The part numbering convention encodes critical technical parameters: BIT-ADS06-[Cutting Diameter][Cutting Length]-[Total Length].

Part Number	OEM Part Code	Cutting Dia. (mm)	Cutting Length (mm)	Max Material Thickness / Primary Application
BIT-ADS06-2006-50	G42449488	2.0 mm	6 mm	6mm max thickness; precision deeper details
BIT-ADS06-3006-50	G42445932	3.0 mm	6 mm	6mm max thickness; medium-depth plastic & aluminum
BIT-ADS06-3011-50	G42443358	3.0 mm	11 mm	11mm max thickness; deep slotting in composites
BIT-ADS06-4008-50	G42445940	4.0 mm	8 mm	8mm max thickness; balance of speed and rigid finish
BIT-ADS06-4012-50	G42445957	4.0 mm	12 mm	10mm–12mm acrylic sheets & dense foam
BIT-ADS06-5022-60	G42442756	5.0 mm	22 mm	Deep, heavy-duty routing in multi-layered rigid materials

Key Tool Features

· Material Composition: Engineered from industrial-grade tungsten carbide to maintain structural sharpness under high thermal loads.

· Up-Cut Spiral Geometry: Actively pulls chips upward out of the path, preventing melting or edge welding in acrylics.

· Machine Compatibility: Directly compatible with Kongsberg MultiCUT (1kW) heads using standard 6mm chucks (Part 02721314) and high-power HPMU (3kW) units.
