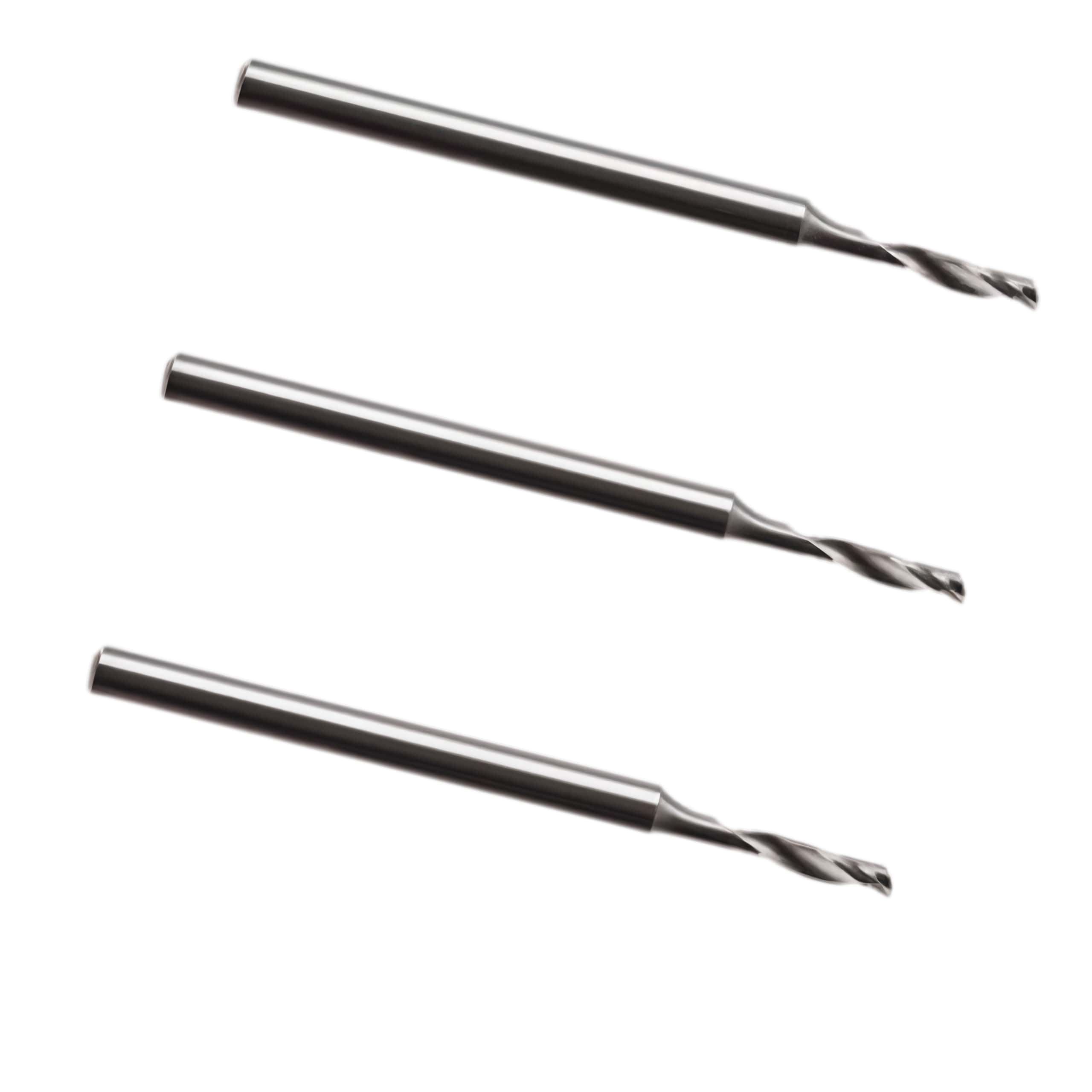

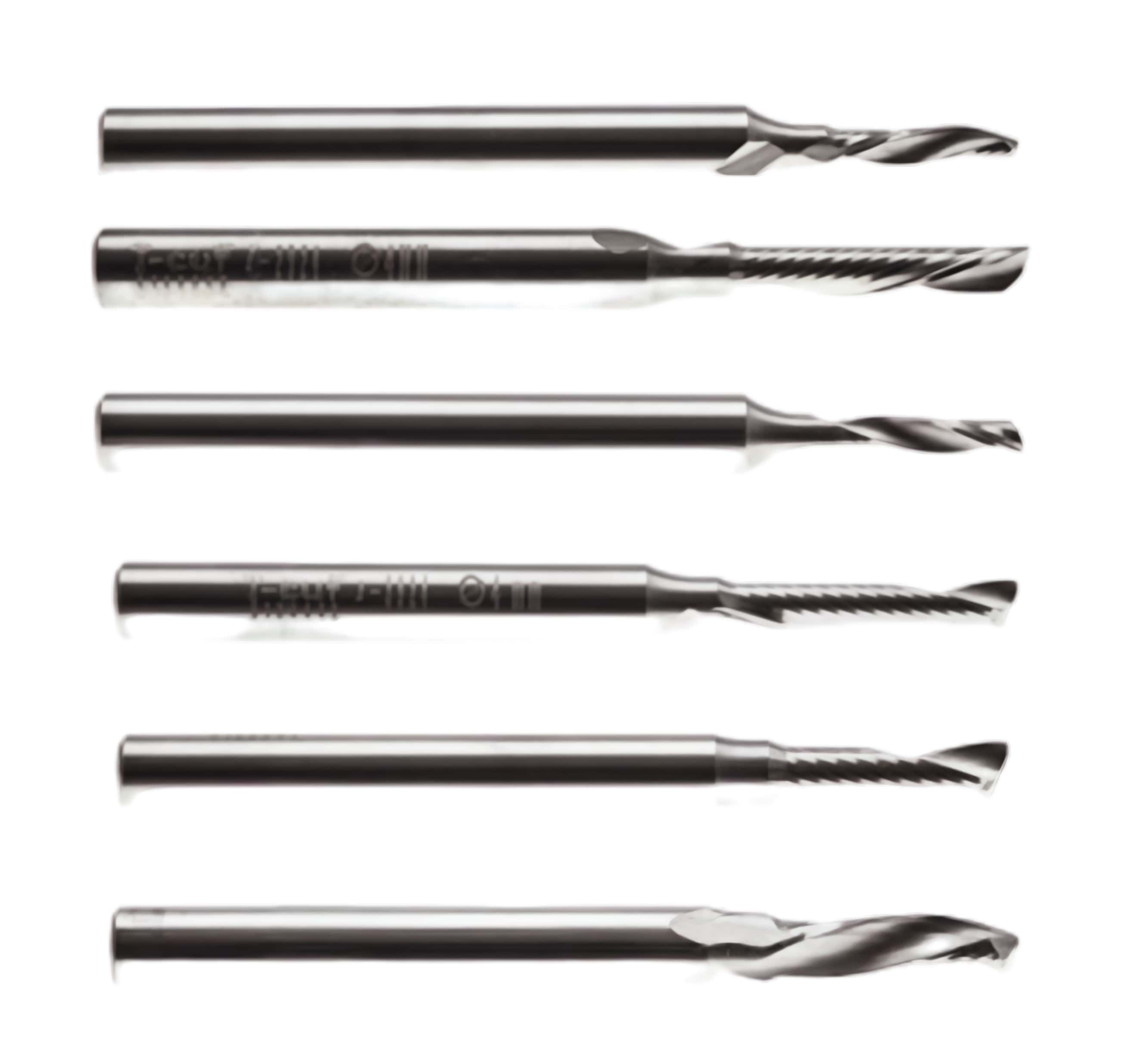

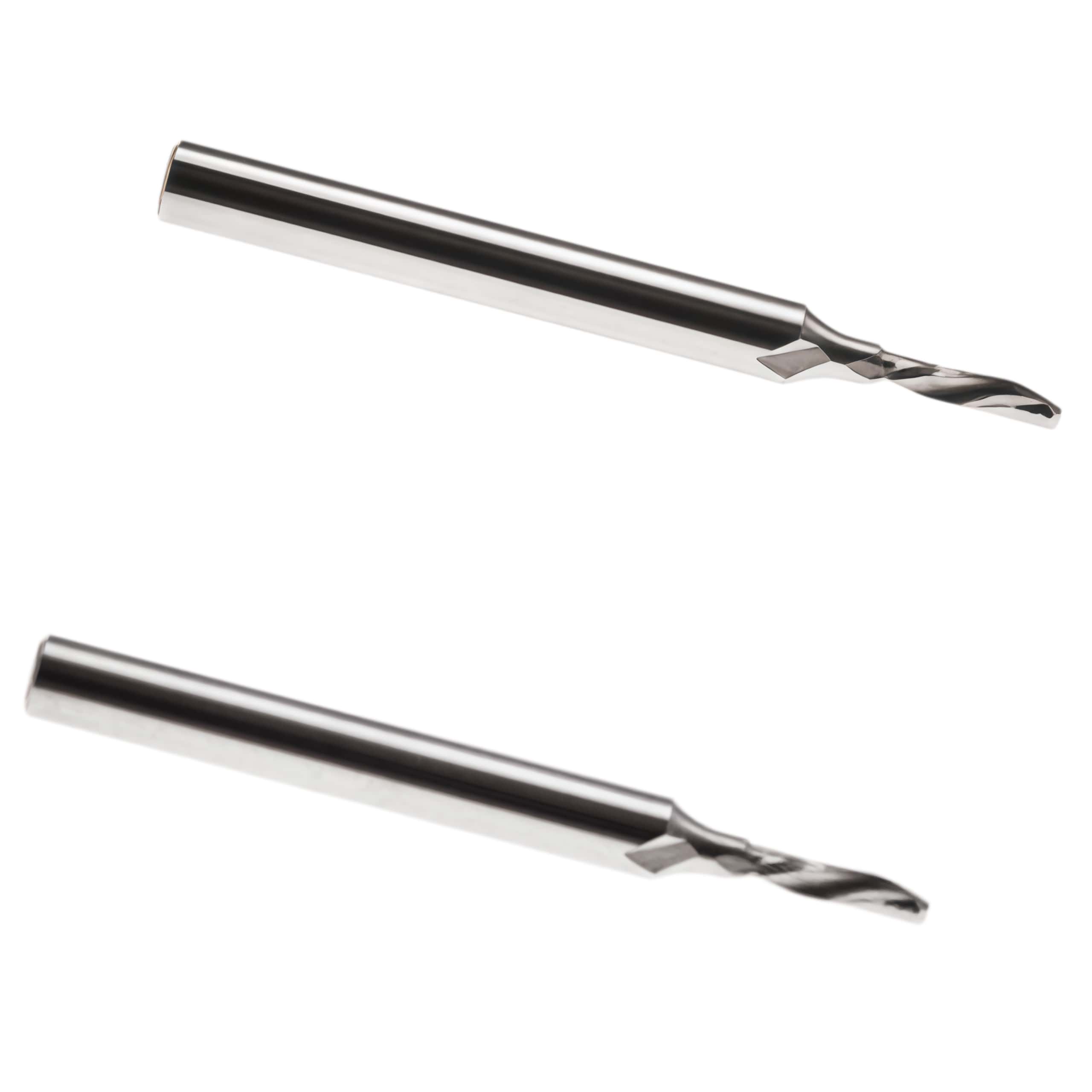

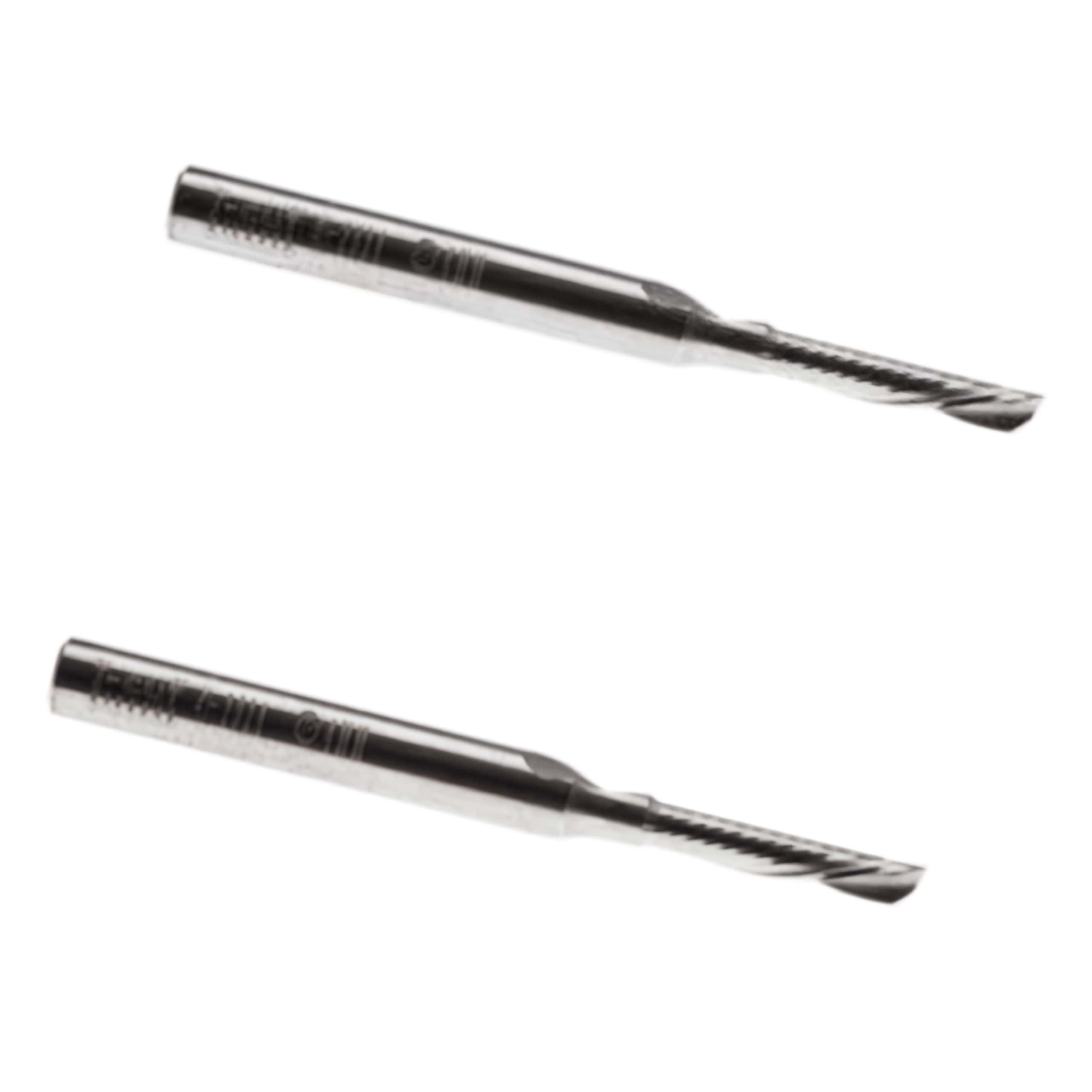

Esko Kongsberg 6mm Soft Metal Single Flute Milling & Router Bits

Esko Kongsberg 6mm soft metal single flute milling and router bits are highly specialized tungsten carbide CNC cutting tools. They are engineered for processing non-ferrous metals like aluminum and brass on digital finishing tables. Inquiry Now

Description

Esko Kongsberg 6mm Soft Metal Single Flute Milling & Router Bits

The provided codes represent professional Esko Kongsberg 6mm solid carbide single-flute milling and router bits. These bits are explicitly engineered for processing soft metals (such as aluminium and brass) on CNC digital cutting tables.

Decoder for Esko Kongsberg Part Numbers

The technical specifications of each bit are embedded directly within its model name:

· BIT-S: Single-flute architecture.

· US / DS: Flute direction. US denotes Up-cut (pulls chips upward for rapid chip clearing); DS denotes Down-cut (pushes chips down to prevent top-edge fraying).

· 06: 6mm Shank Diameter.

· 3012 / 4020 / 5016: The cutting geometry. The first two digits represent the Cutting Diameter (e.g., 30 = 3.0mm), and the last two digits indicate the Cutting Length (e.g., 12 = 12mm).

· 64: 64mm Total Tool Length.

· (i-xxxx): Legacy Esko identifier code.

· G4245xxxx: Universal OEM SAP part code.

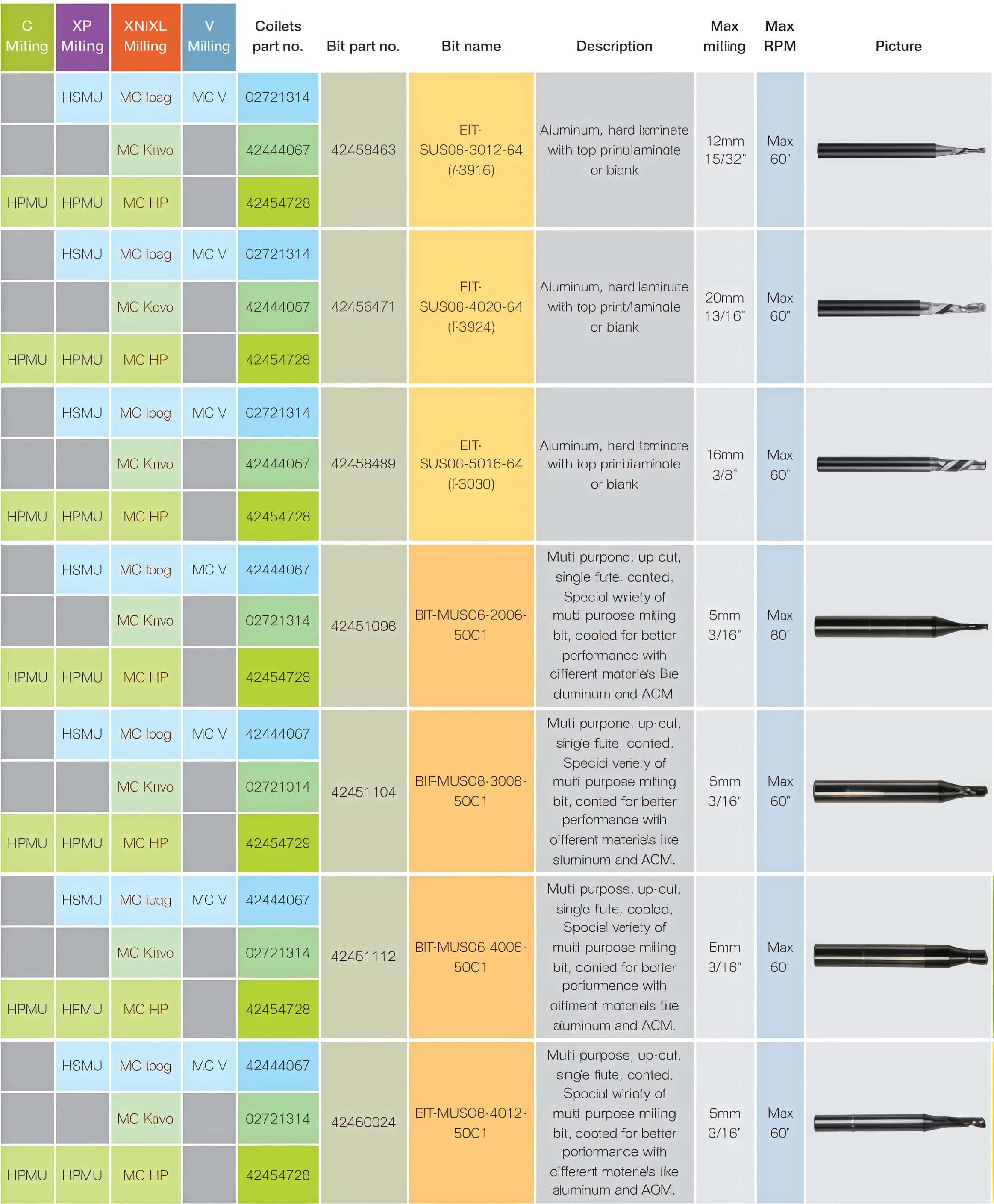

Technical Specification Table

Model Number	Flute Style	Cut Type	Cutting Ø	Cut Depth	Shank Ø	Total Length	OEM Part Code
BIT-SUS06-3012-64	Single Flute	Up-Cut	3.0 mm	12 mm	6.0 mm	64 mm	G42458463
BIT-SUS06-4020-64	Single Flute	Up-Cut	4.0 mm	20 mm	6.0 mm	64 mm	G42458471
BIT-SUS06-5016-64	Single Flute	Up-Cut	5.0 mm	16 mm	6.0 mm	64 mm	G42458489
BIT-SDS06-3012-64	Single Flute	Down-Cut	3.0 mm	12 mm	6.0 mm	64 mm	G42458430
BIT-SDS06-4020-64	Single Flute	Down-Cut	4.0 mm	20 mm	6.0 mm	64 mm	G42458448
BIT-SDS06-5016-64	Single Flute	Down-Cut	5.0 mm	16 mm	6.0 mm	64 mm	G42458455

Common Product Variants & Applications

The bits vary by cutting depth and direction to handle specific non-ferrous and composite materials:

Up-Cut Spiral Bits: These pull chips upward out of the cut zone. They are best for thick aluminum sheets, copper, brass, and Aluminum Composite Materials (ACM / Dibond).
Down-Cut Spiral Bits: These push chips downward while applying downward pressure on the material. They prevent lifting on thin-gauge foils or very small, lightweight parts.
Straight Flute Bits (e.g., MSD06 series): Designed for neutral forces. They balance clean edge finishes on soft metals with layered polymer cores.
