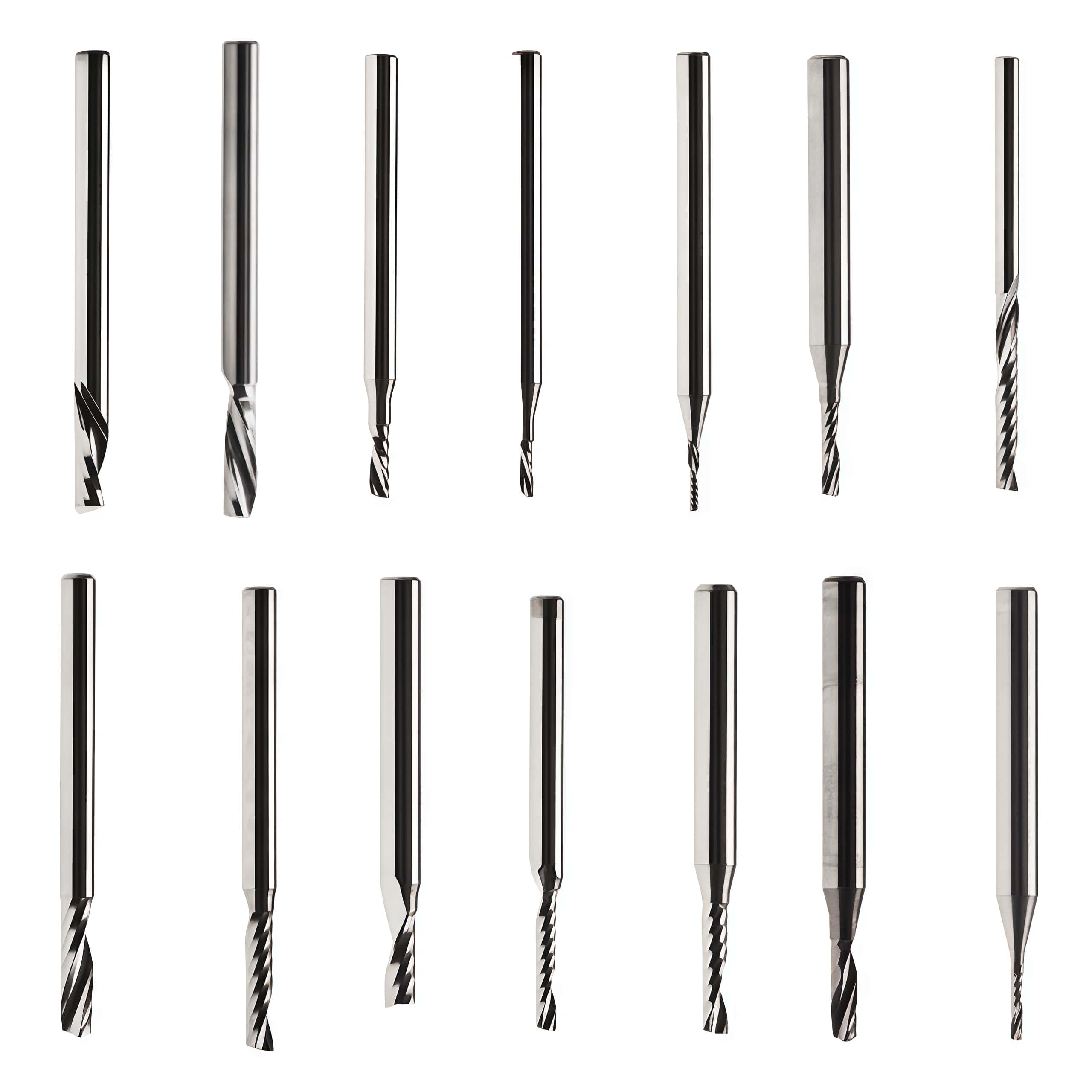

Esko Kongsberg 3mm Super Sharp Up Cut Down Cut Milling & Router Bits

Esko Kongsberg 3mm Super Sharp milling and router bits are highly specialized tungsten carbide cutting tools designed for precision digital cutting tables, such as the Kongsberg X, V, and C-Series. These 3mm bits are primary assets for sign making, display production, and packaging fabrication when … Inquiry Now

Description

Esko Kongsberg 3mm Super Sharp Up Cut Down Cut Milling & Router Bits

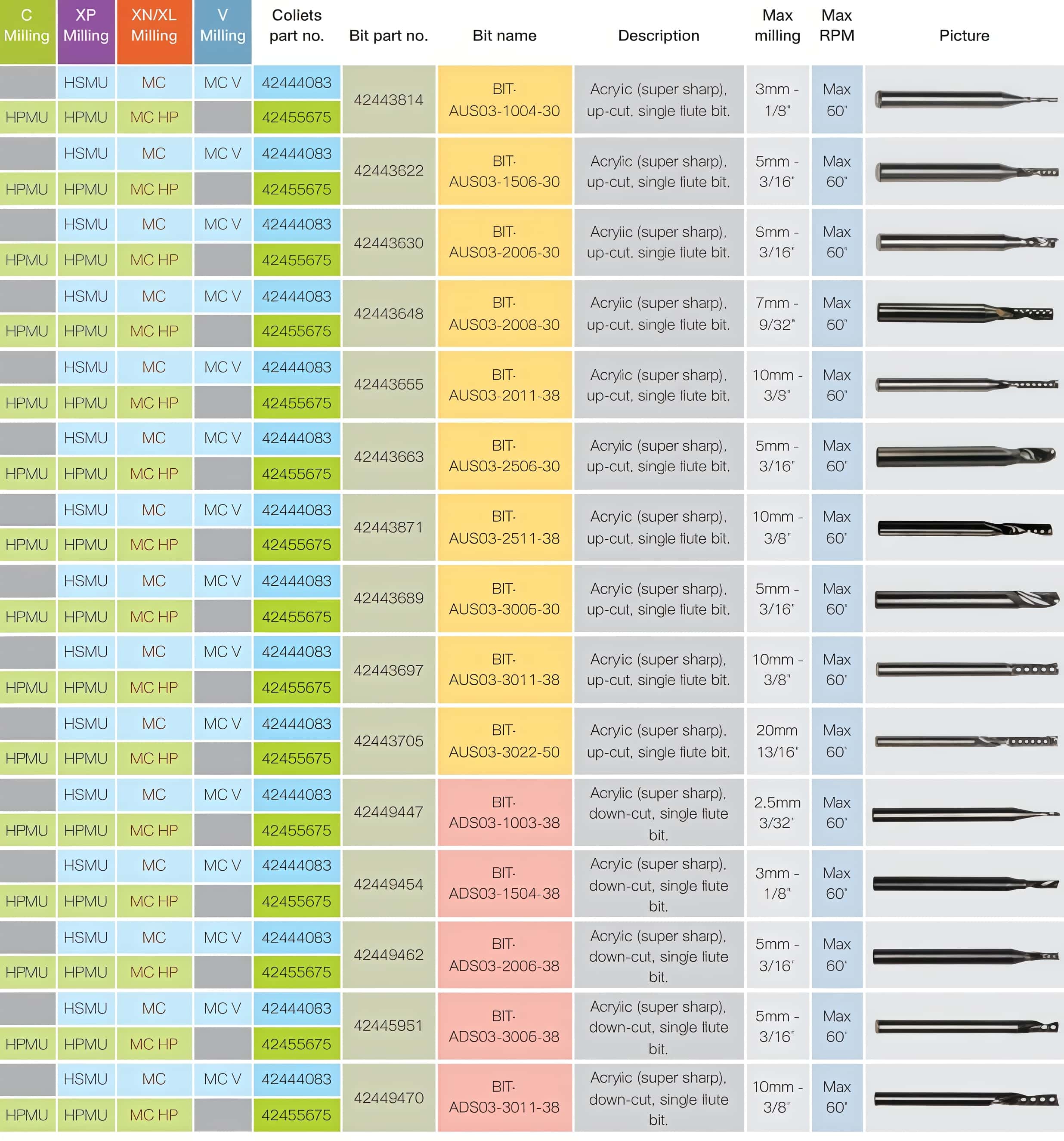

Technical Specifications Matrix

This complete breakdown maps every part number and identifier from your list to its mechanical parameters:

Kongsberg Product ID	Esko OEM Part Number	Series / Cut Type	Tip Diameter	Flute Length	Total Length	Best Used For
BIT-AUS03-1004-30	G42443614	Acrylic Up-Cut	1.0 mm	4 mm	30 mm	Fine detail acrylic & soft plastics
BIT-AUS03-1506-30	G42443622	Acrylic Up-Cut	1.5 mm	6 mm	30 mm	Detailed plastic engraving & profiling
BIT-AUS03-2006-30	G42443630	Acrylic Up-Cut	2.0 mm	6 mm	30 mm	General engraving & thin sheet plastics
BIT-AUS03-2008-30	G42443648	Acrylic Up-Cut	2.0 mm	8 mm	30 mm	Mid-depth plastic profiling
BIT-AUS03-2011-38	G42443655	Acrylic Up-Cut	2.0 mm	11 mm	38 mm	Deep channel plastic & wood routing
BIT-AUS03-2506-30	G42443663	Acrylic Up-Cut	2.5 mm	6 mm	30 mm	Intricate sign-making channels
BIT-AUS03-2511-38	G42443671	Acrylic Up-Cut	2.5 mm	11 mm	38 mm	Intermediate rigid sheet processing
BIT-AUS03-3006-30	G42443689	Acrylic Up-Cut	3.0 mm	6 mm	30 mm	Standard 3mm acrylic cutout
BIT-AUS03-3011-38	G42443697	Acrylic Up-Cut	3.0 mm	11 mm	38 mm	Deep 3mm contouring & wood letters
BIT-AUS03-3022-50	G42443705	Acrylic Up-Cut	3.0 mm	22 mm	50 mm	Extra-deep multi-pass cuts
BIT-ADS03-1003-38	G42449447	Aluminum Down-Cut	1.0 mm	3 mm	38 mm	Ultra-fine aluminum/ACM detailing
BIT-ADS03-1504-38	G42449454	Aluminum Down-Cut	1.5 mm	4 mm	38 mm	Small-text aluminum engraving
BIT-ADS03-1006-38	G42449462	Aluminum Down-Cut	1.0 mm	6 mm	38 mm	Narrow-groove metal composite routing
BIT-ADS03-3006-38	G42445981	Aluminum Down-Cut	3.0 mm	6 mm	38 mm	Regular aluminum & ACM perimeter cuts
BIT-ADS03-3011-38	G42449470	Aluminum Down-Cut	3.0 mm	11 mm	38 mm	Deep aluminum sheets & sandwich panels

Machine Setup Requirements

Because these tools use a thin 3mm shank, they cannot be mounted directly into standard 6mm or 8mm milling spindles without adapters:

· Chucks and Adapters: If running an HSMU (1kW) spindle, use adapter 42444083. If running an HPMU (3kW) or MultiCUT-HP unit, use adapter 42455675 to avoid excessive tool runout or snapping.

· Operating RPM: The 1.0mm and 1.5mm micro-tips require high spindle speeds (40,000 to 60,000 RPM) with conservative feed rates to prevent lateral stress breakage.
