1. Material Focus:
- Zund ACM router bits are specifically designed for aluminum composite materials (ACM) such as Dibond and Alucobond. These materials have a sandwich structure with thin aluminum sheets bonded to a core, requiring specialized routing to avoid vibrations and damage.
- Aluminum router bits, or multipurpose bits including aluminum, are typically intended to cut solid aluminum or a variety of materials, including plastics, acrylics, and composites.
2. Design and Geometry:
- Zund ACM bits feature optimized shear cut geometry and a helical cutter design to reduce cutting forces and minimize vibrations during routing of ACM panels. This leads to smoother, burr-free edges and superior surface quality.
- Aluminum router bits for solid aluminum often focus on chip evacuation and durability but might not have the same vibration-minimizing design elements needed for thin aluminum composite panels.
3. Performance:
- ACM bits from Zund ensure burr-free edges and extend bit lifespan due to their geometry tailored to reduce vertical forces and vibrations that affect the thin aluminum skins.
- Multipurpose aluminum bits provide versatility across several materials but may require adjustments in feed rate and lubrication and might not deliver the same level of finish quality and bit longevity on ACM panels.
4. Application:
- ACM bits are specialized for clean, precise cutting and milling of sandwich panels without causing delamination or damage to the decorative aluminum surfaces.
- Aluminum bits can be used more generally and often require additional considerations such as lubrication and speed control to avoid overheating and tool wear.
In summary, Zund ACM router bits are specialized tools optimized for aluminum composite materials, focusing on vibration control, edge quality, and bit life, while aluminum router bits tend to be more general-purpose bits for solid aluminum and a range of other materials, sometimes including acrylic and plastics depending on the model

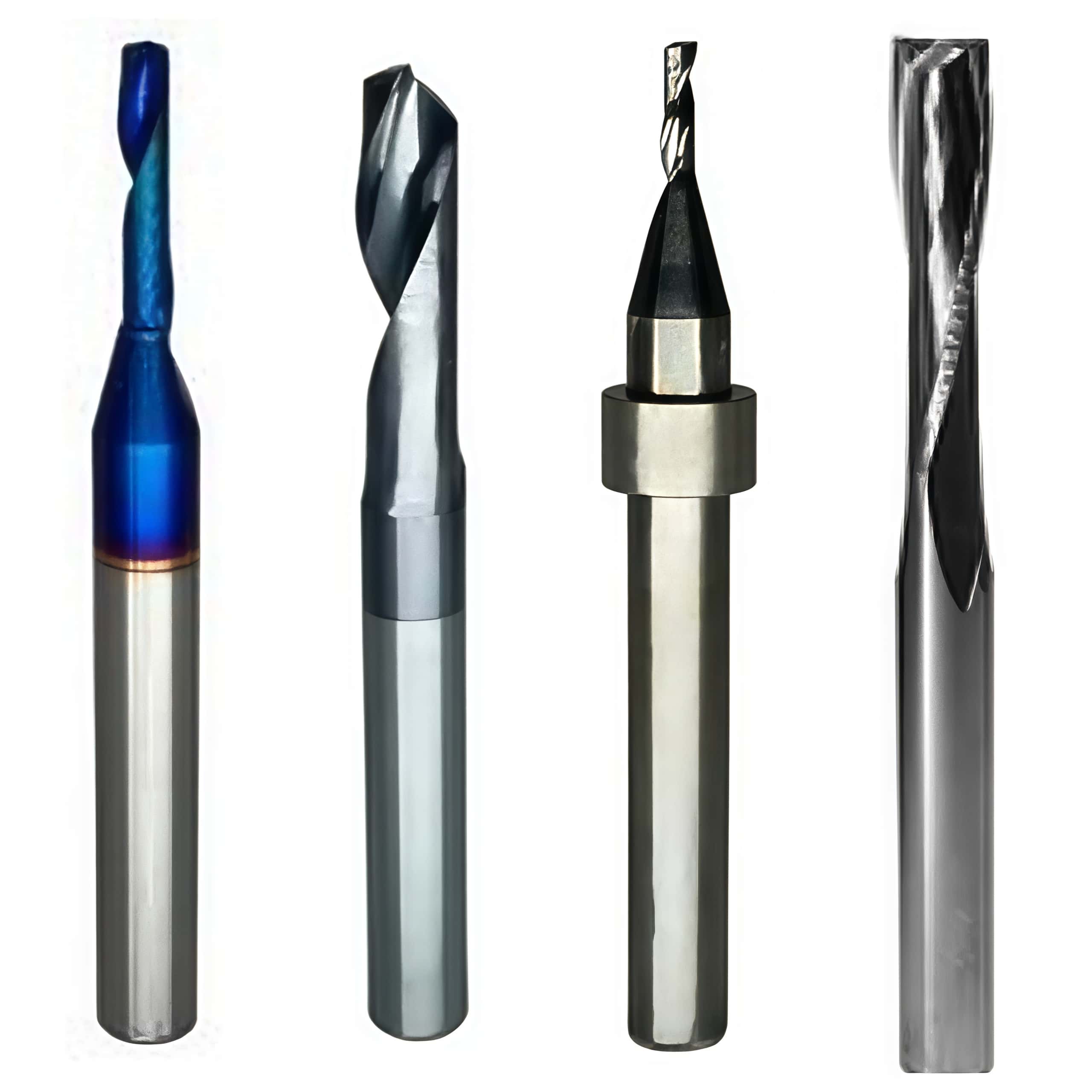

Here is a main comparison table for Zund ACM and Aluminum router bits and related models based on typical specifications, materials, and purposes:
|
Router Bit Type |
Zund Model Example(s) |
Diameter (mm) |
Max Cutting Depth (mm) |
Material Focus |
Key Features/Applications |
|
Multipurpose Router Bits |
3.0 - 4.0 |
6 - 14 |
Acrylic, Aluminum, Plastics, MDF |
Versatile for soft/hard materials, engraving, routing |
|
|
Acrylic Router Bits |
2.0 - 3.0 |
5 - 6 |
Acrylic, Dibond |
Fine-detail routing, engraving, V-groove |
|
|
ACM Router Bits |
3.0 - 4.0 |
8 |
Aluminum Composite Material |
Spiral milling for burr-free, clean ACM cuts |
|
|
Single O-Flute, Up-Cut Bits |
Various (e.g., R102) |
2.0 - 3.0 |
6 - 11 |
Acrylic, Aluminum, Dibond |
Fine-detail routing, drilling, efficient chip evacuation |
|
Coated Multipurpose Bits |
R203 (coated) |
3.0 |
11 |
Soft and hard materials |
Extended life multipurpose routing |
Additional Points:
· Zund router bits have different geometries optimized to reduce vibration and improve surface quality especially for ACM (Aluminum Composite Material).
· ACM bits ensure burr-free edges and are designed for routing aluminum composite panels like Dibond.
· Multipurpose bits cover a broad range of materials and are suitable for efficient high-quality cuts on acrylic, aluminum, plastics, and MDF.
· Zund router modules (such as RM-A with 1kW spindle power) are commonly paired with these bits to handle materials up to 50 mm thick and enhance cutting speed with optional lubrication systems.
· The Zund G3 cutter series is popular for industrial applications utilizing these router bits and modules.
This summary synthesizes key differences and uses for the main Zund router bit models tailored to ACM and aluminum routing tasks, helping choose the appropriate bit based on material and milling needs
