Here are summary specifications and applications for the ARISTO oscillating-knife blades you listed:

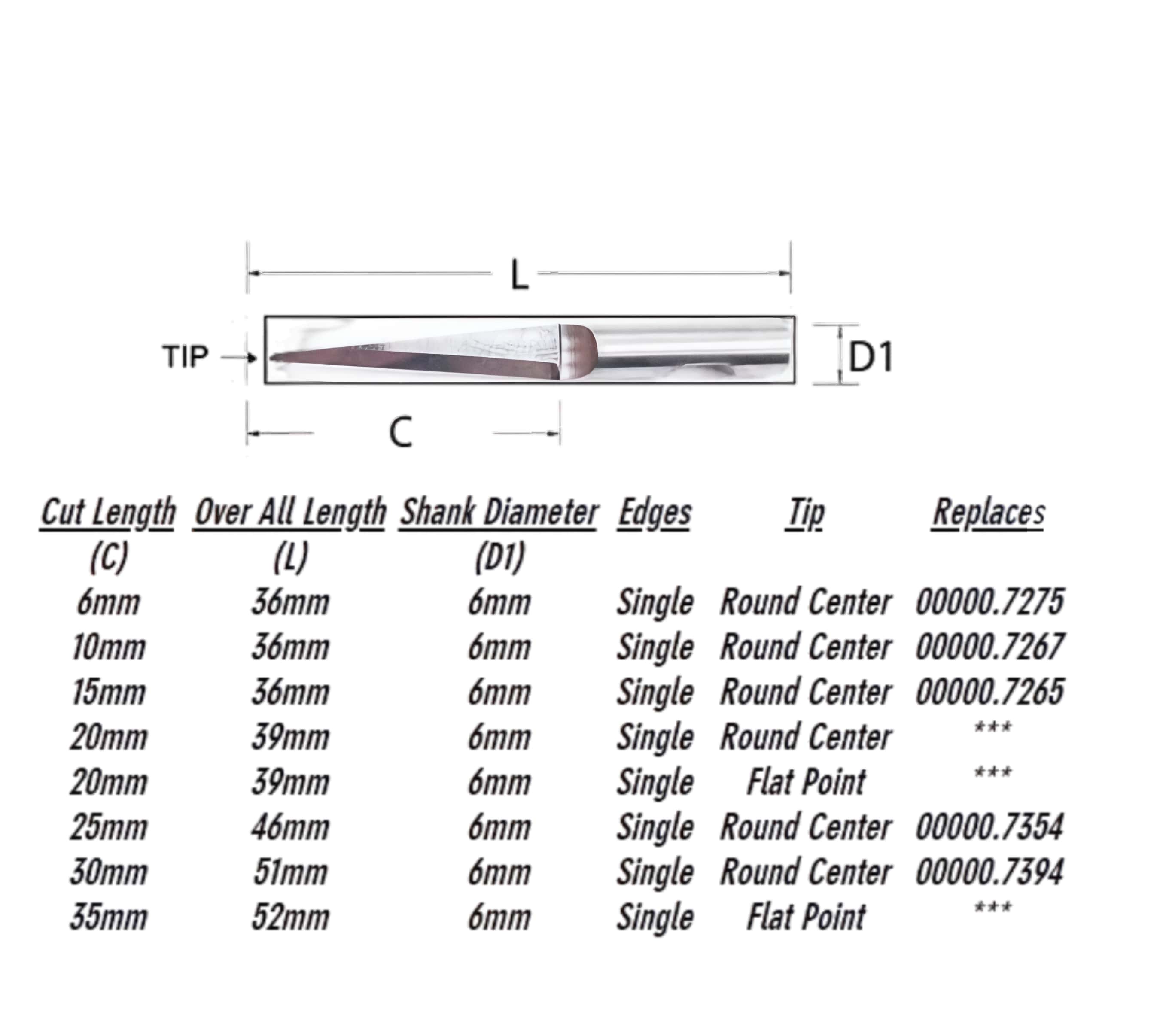

| Part Number | Cutting Depth | Shank / Mount | Notes / Applications |
|---|---|---|---|
| ARISTO 0000 07275 | ~5 mm | Ø6 mm round shank | Suitable for gasket materials, corrugated board, foam board, packaging materials. SN-spec lists 5 mm depth for this model. |
| ARISTO 0000 07267 | ~10 mm | (Likely Ø6 mm similar family) | Mid-depth cutting for medium materials, as per ARISTO listing table. |
| ARISTO 0000 07265 | ~15 mm | (Likely same shank) | Deeper cut variant for thicker or more dense materials. |
| ARISTO 0000 07354 | ~25 mm | Ø6 mm (table states same) | For significantly deeper cuts – thicker substrates such as corrugated, foam, etc. |
| ARISTO 0000 07394 | ~30 mm | Ø6 mm round shank | Higher depth with 6 mm shank; used also for tougher materials (foam, textiles, honeycomb) according to one source. |
| ARISTO 0000 07395 | ~35 mm | (Shank likely 6 mm) | For very deep cutting needs. |
| ARISTO 0000 07728 | ~38 mm | Ø8 mm shank: designed for deeper cuts and more demanding stability. | Highest depth in table; larger shank suitable for heavier duty materials. |
Key Additional Notes & Application Guidance
-
The table from ARISTO’s “DIRECT” document lists the cutting depths clearly: 5 mm for 0000 07275; 10 mm for 0000 07267; 15 mm for 0000 07265; 25 mm for 0000 07354; 30 mm for 0000 07394; 35 mm for 0000 07395; 38 mm for 0000 07728.
-
For the 0000 07275 model: one vendor lists total length 36 mm, cutting depth 5 mm, shank 6 mm.
-
For 0000 07275, example material recommendations include gasket, foam board w/ paper surface, corrugated board, soft foams.
-
For 0000 07394, one vendor indicates “broad range of materials including aramid fibers, canvas, carbon fibers… corrugated cardboard, foam board… etc.”
-
The 0000 07728 with 8 mm shank is stated (in one reference) to support “deeper cuts; larger shank diameter allows for increased stability for demanding cuts”.
Recommendations for Use
-
Match the blade depth to the material thickness. If you are cutting a thin material (e.g., foam board, light corrugated), use the 5 mm or 10 mm blade (07275 or 07267).
-
For thicker materials, use the 15 mm to 38 mm range depending on how deep you need to cut.
-
Shank diameter matters: for standard tasks the 6 mm shank (for models up to ~30 mm depth) is common; for heavy duty deeper cuts the 8 mm shank (e.g., 07728) gives more rigidity and stability.
-
Material type & machine compatibility: Some references indicate that certain models (e.g., 7394) are particularly suited for wide variety of materials including textiles, honeycomb, etc., and may require specific machine features. Ensure your cutting machine (oscillating knife system) supports the model.
-
Check blade geometry/angle: For 07275 one source lists angle 25° (wedge angle) for improved stability and reduced breakout.
-
Always verify with the manufacturer’s official documentation, as third-party vendors may provide approximate specs; the ARISTO official “DIRECT” PDF is a good reference.
