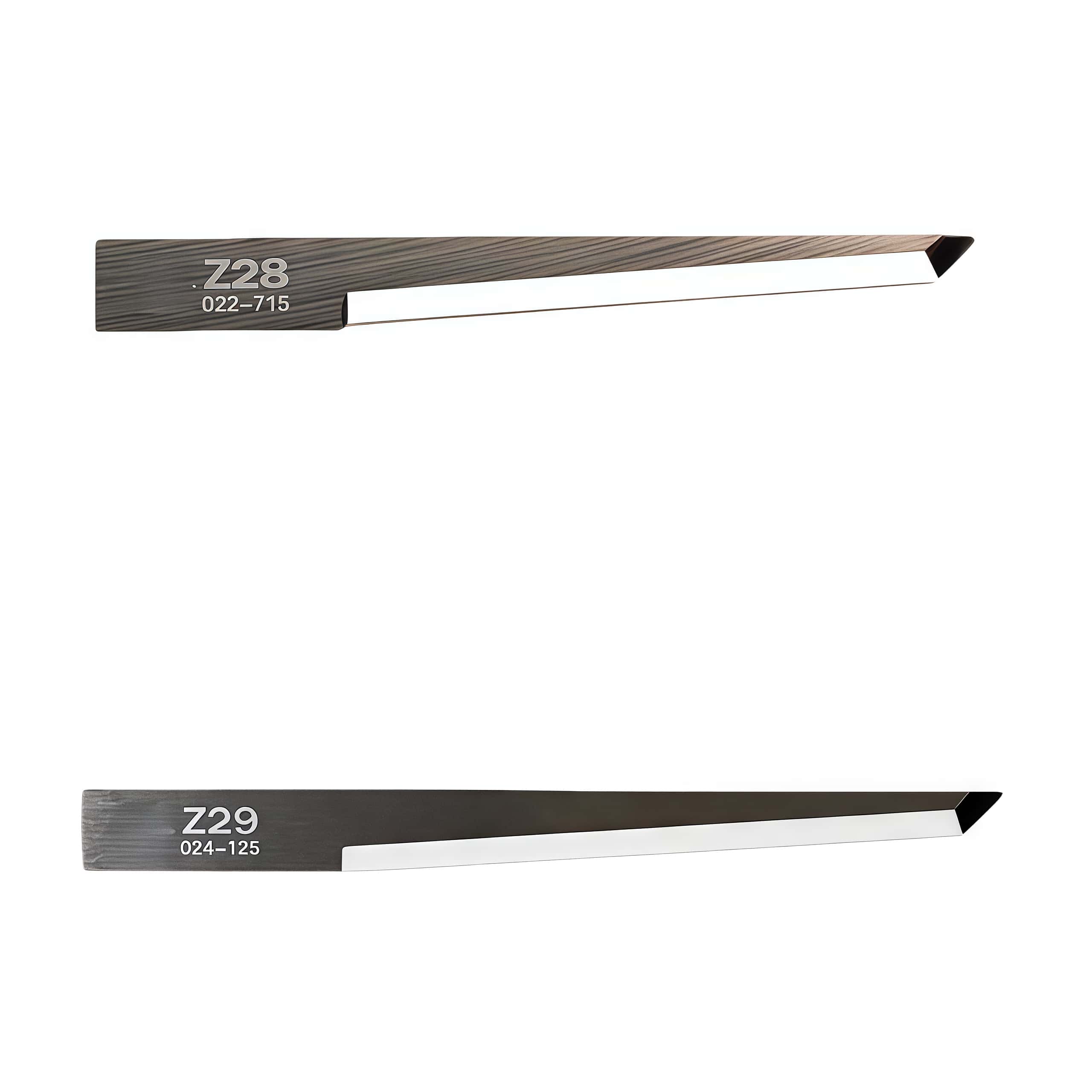

Zund Z29 Z28 tungsten carbide oscillating knife blade

Zund Z29 and Z28 are tungsten carbide oscillating knife blades designed for Zund digital cutting systems, used for slicing soft, thick materials like foam and insulating mats.

Z29 Specifications

These blades feature a pointed design with a 45°/86.3° angle, 43 mm height, 4 mm width, 0.63 mm thickness, and maximum cutting depth of 31 mm. The part number is 3910319, and they suit EOT, EOT-250, and POT oscillating tools.

Z28 Specifications

Z28 blades share a similar 45°/86° angle, 4 mm width, and 0.63 mm thickness but have a 38 mm height and 26 mm maximum cutting depth. The part number is 3910318.

Key Differences

Z29 blades are longer than Z28 blades, enabling deeper cuts (31 mm vs. 26 mm).

Feature	Zund Z29	Zund Z28
Max. Cutting Depth	31 mm	26 mm
Blade Length	43 mm	38 mm
Cutting Angle	45°/86.5°	45°/86°
Ideal Materials	Softer, thicker materials like foam boards and insulating mats	More versatile, including corrugated boards, foam rubber, and leather
Precision	Suited for thicker materials rather than intricate cuts	Designed for detailed patterns and smaller radius cuts
Zund Part Number	3910319	3910318

Zund Z29 Carbide Oscillating Replacement Knife Blades For Zund Cutting Systems 3910319

Zund Z28 Cnc Arbide Oscillating Replacement Knife Blades For Zund Cutting Systems 3910318
