Esko Kongsberg Bld-Sr8160 Sr8124 Sr8180 Sr8184 Carbide Blade Overview

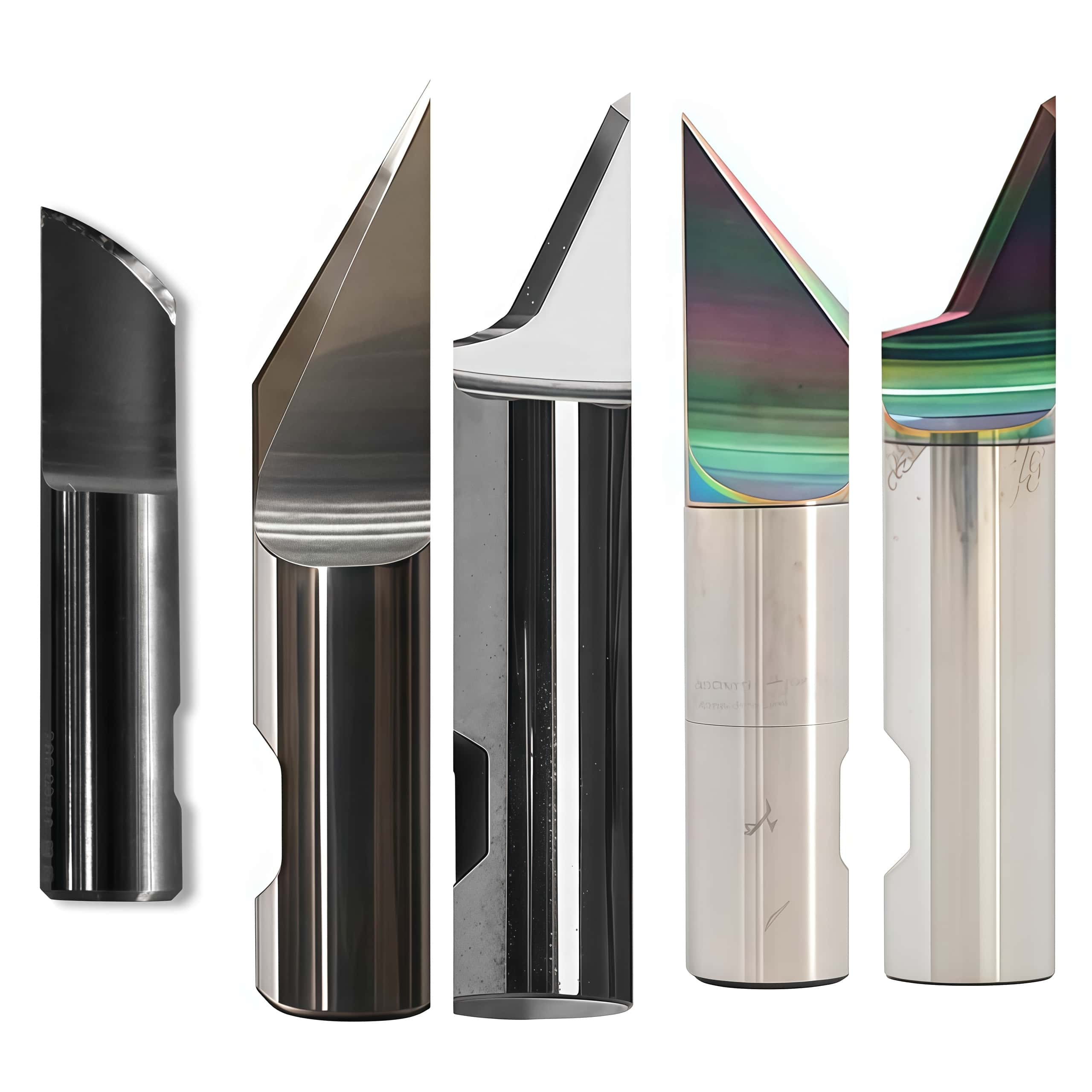

Esko Kongsberg Bld-Sr8124, Bld-Sr8160, Bld-Sr8180, and Bld-Sr8184 blades are tungsten carbide oscillating knife blades designed for precision cutting on Kongsberg tables, primarily differing in cutting depth, materials, and geometry.
Key Specifications
All models feature an 8mm shank diameter, 40mm total length, and round mounting for compatibility with Kongsberg X, XF, XT, and K-series tables. They excel in dry-cut environments up to 400°C with high Rockwell hardness (HRA 90+).
Comparison Table
|
Feature |
||||
|
Max Cutting Depth |
N/A (foam cores, ~4mm lag) |
6.5-13mm |
~5-6mm |
5mm |
|
Primary Materials |
Foam cores |
Rigid foams, corrugated plastic, PVC, polycarbonate |
Corrugated board, foam, textiles |
Thin paper, folding carton, foil, fragile/porous paper |
|
Angle/Lag |
N/A |
60° / 4mm lag |
Optimized oscillating |
4mm lag, drag blade |
|
Part Number Example |
341183?? |
G42447235 |
34118331 C2 |
G34104398 |
|
Price Range (est.) |
~$55-100 |
~$26-55 |
~$100 |
N/A |
Usage Notes
Bld-Sr8160 suits thicker rigid materials with deeper cuts, while Bld-Sr8184 targets delicate substrates like beer coasters. Bld-Sr8124 and Bld-Sr8180 handle foams and boards effectively. Clean after use and store dry for longevity.
