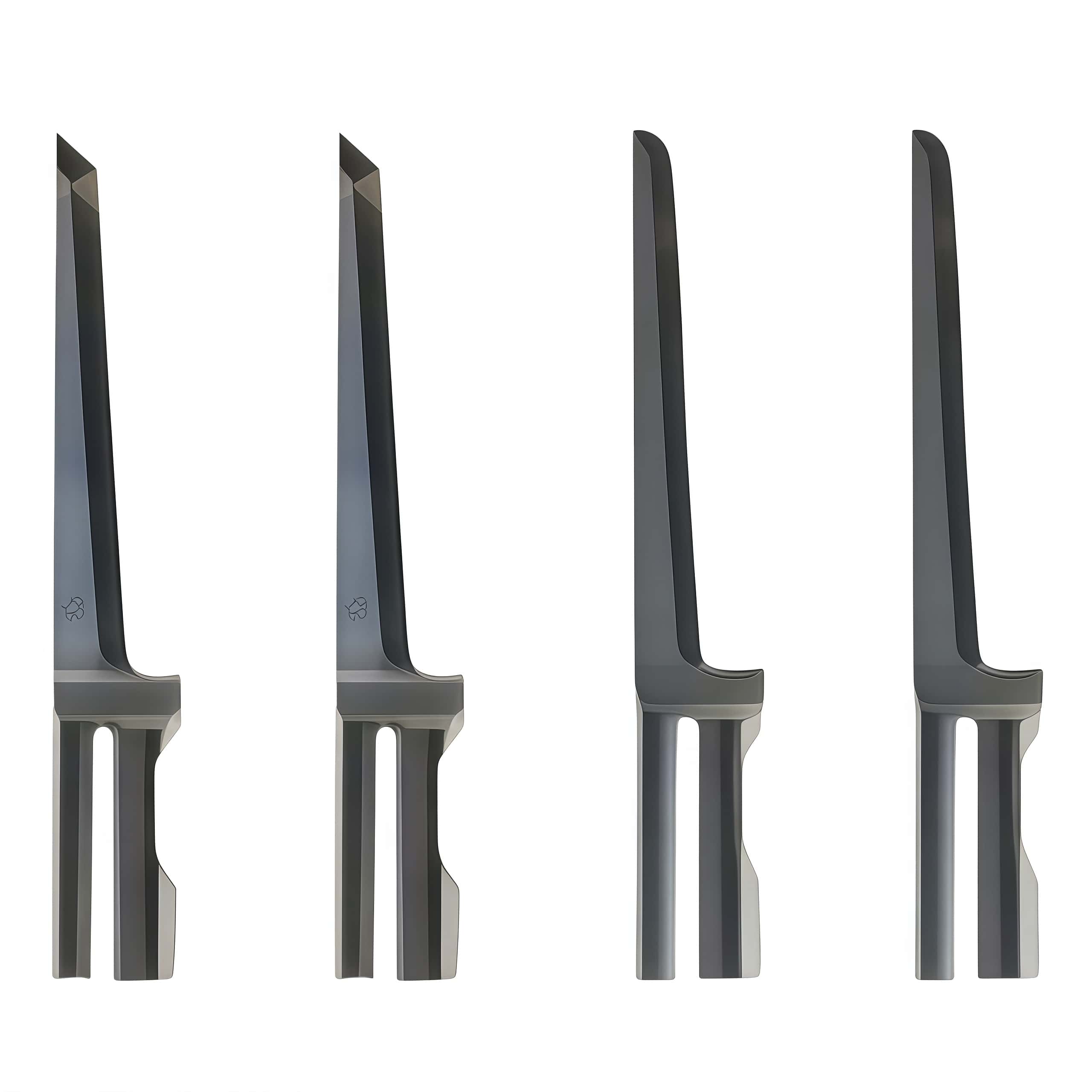

Esko Kongsberg Bld-Sr6303 Bld-Sr6375 Round Oscillating Blade
Key Specifications and Differences
|
|
|
|
Blade Type Oscillating, Single Edge, Round |
Blade Type Oscillating, Single Edge, Round |
|
Material Tungsten Carbide (HM) |
Material Tungsten Carbide (HM) |
|
Shank Diameter 6 mm |
Shank Diameter 6 mm |
|
Total Length ~39 mm |
Total Length ~39 mm |
|
Max. Cutting Depth ~20 mm (or 15-20mm foam board) |
Max. Cutting Depth ~23 mm |
|
Max. Cut Length N/A (Standard) |
Max. Cut Length ~25 mm |
|
Angle N/A (Standard) |
Angle 86.5° |
|
Optimized Materials Foam board (soft, hard), other sandwich materials, rubber, corrugated plastic |
Optimized Materials Die-ejection rubber, die-pushing rubber, rubber for dies |
|
Compatible Tools Multi-purpose High-Frequency Tool (MP HF/Vibracut) |
Compatible Tools Oscillating knife tools (accepts SR63xx style blades) |
Summary of Usage
·
· : This blade is generally used for cutting lighter, less dense materials, specifically various types of foam board, soft foam, and corrugated plastic up to approximately 20mm thick. Its design focuses on precision and speed for these specific substrates.
·
· : This blade is designed for more specialized, dense rubber materials, specifically die-ejection and die-pushing rubber used in the diemaking industry. It handles slightly greater material thicknesses than the SR6303, with a maximum cutting depth around 23mm.
Both blades are compatible with the oscillating knife tools on Esko Kongsberg digital cutting tables (such as the C-series, X-series, XP, etc.) that accept the standard 6mm round shank blades.
