Esko Kongsberg Bld-Sf429 Flat Knife Blades G42458315-Replacement

Esko Kongsberg Bld-Sf429 Flat Knife Blade For Kongsberg Cnc And Digital Cutting Technolog G42458315 Suitable for machine manufacturer:BT-2329 Esko Kongsberg G42458315 42458315 BLD-SF429 i-429,iEcho E29,Mécanuméric 100610430,Zund 3910319 Z29,Blackman & White BW29,Gerber MCT SE29 895029,Summa 500-981… Inquiry Now

Description

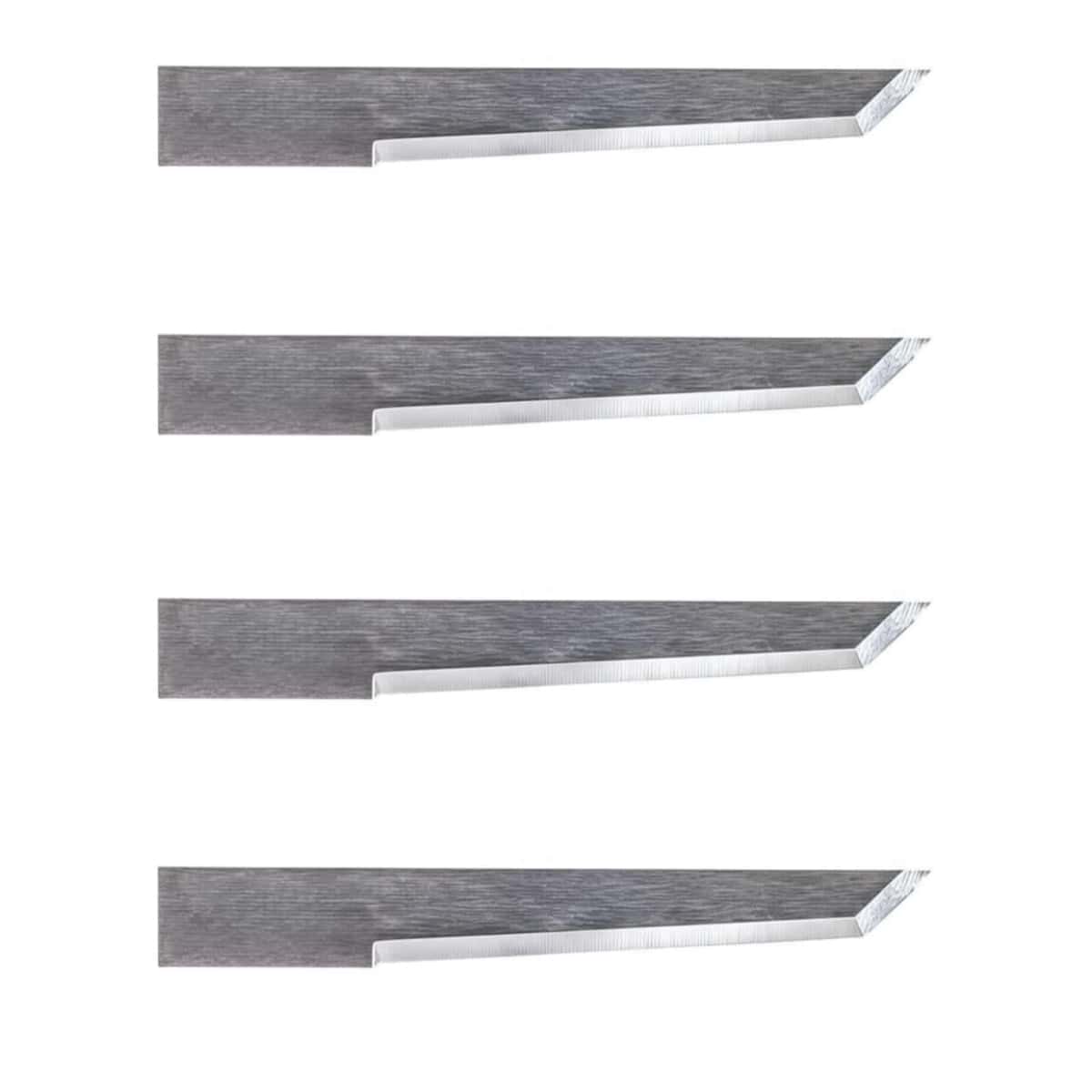

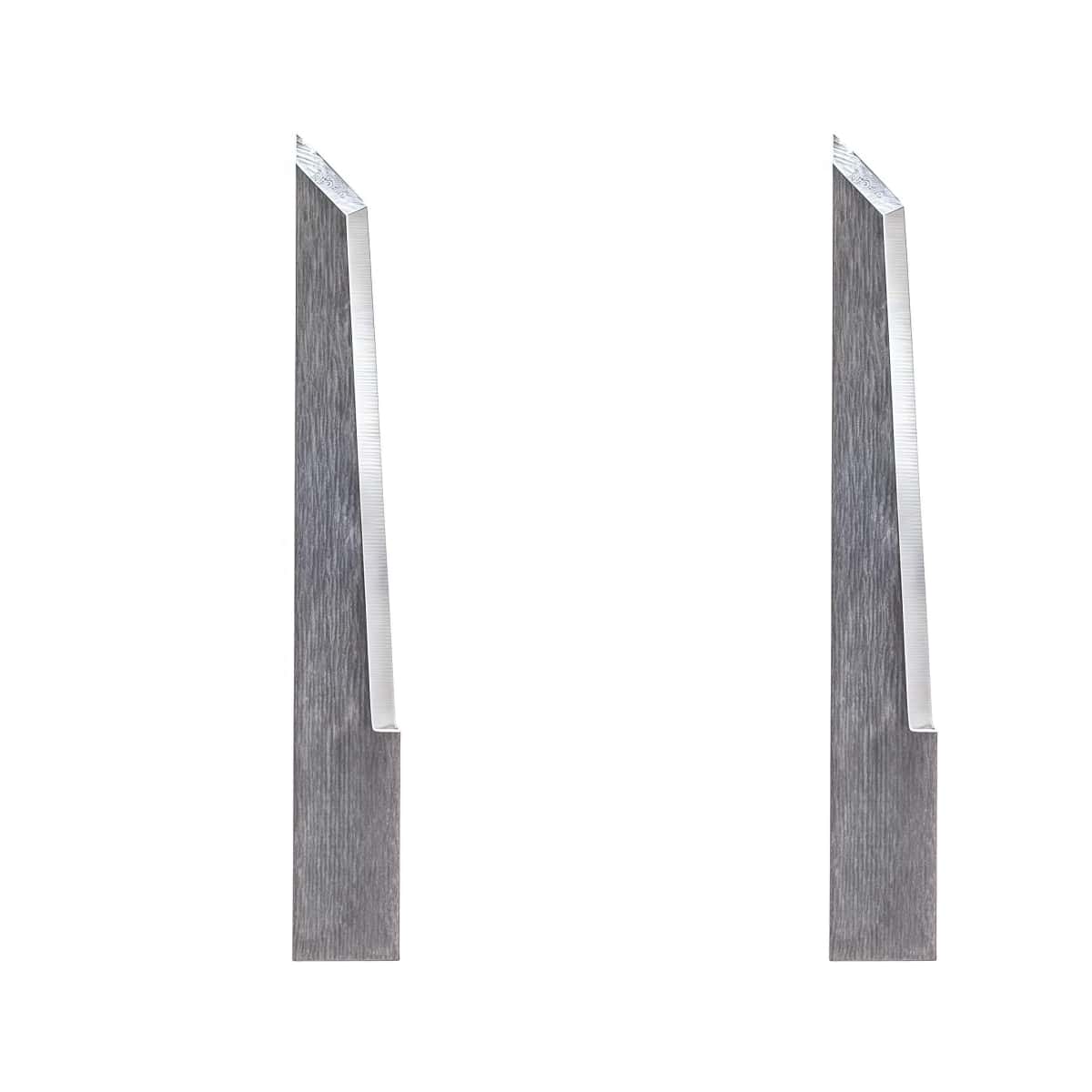

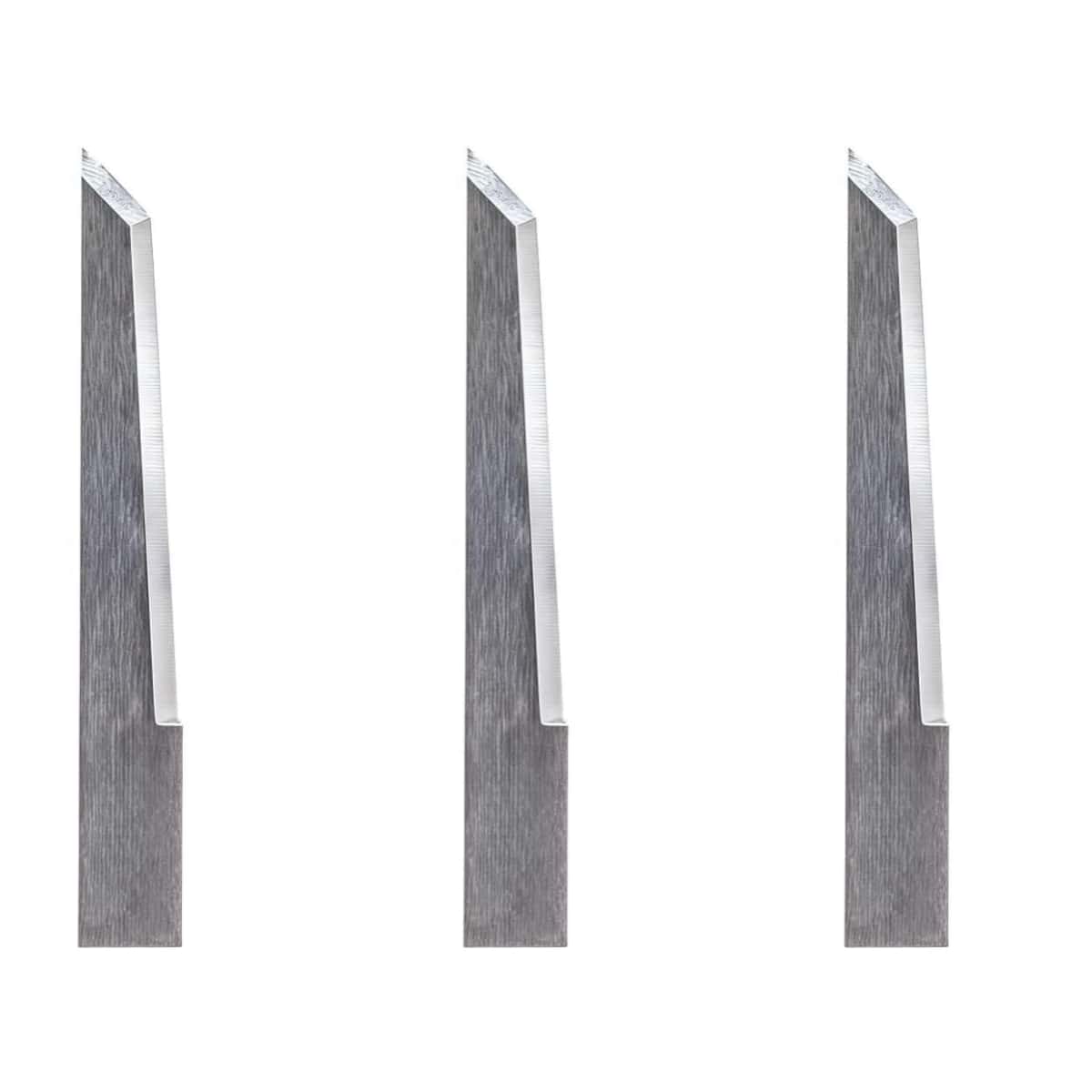

Esko Kongsberg Bld-Sf429 Flat Knife Blade G42458315

The Esko Kongsberg BLD-SF429 (Part Number: G42458315 or 42458315) is a heavy-duty, single-edge flat tungsten carbide oscillating knife blade.

Characterized by its extended length, this blade is specifically designed for slicing through thick, soft, or medium-density semi-rigid substrates that require deep vertical cuts without blade deflection.

Technical Specifications

Feature	Details
Blade Geometry	Single Edge, Flat Stock (Pointed Tip)
Material	Solid Micrograin Tungsten Carbide (Hard Metal / HM)
Blade Thickness	0.63 mm
Max. Cutting Depth	31.00 mm (~1.22 inches)
Cutting Action	High-frequency reciprocating / oscillating stroke

Compatible Tool Modules

To use the BLD-SF429 on an Esko Kongsberg table (such as the X, XL, XN, or V series), it must be installed into a high-amplitude reciprocating tool:

Oscillating Knife Tool (OKT)
High Frequency Vibracut Tool / MP HF Knife Tool (requires adapter part number 34044107)

OEM Part Cross-Reference

Because flatbed tooling shapes are highly standardized, this exact blade design shares physical compatibility with several other major digital cutter brands:

Zund: Z29 (Part No: 3910319)
iEcho: E29
Colex: T00428
Mécanuméric: 100610430

Recommended Materials & Applications

Thanks to its deep 31mm cut length, the BLD-SF429 provides clean, straight edges on porous or multi-wall materials without crushing them:

Packaging & Displays: Thick corrugated fiberboard (double and triple-wall), honeycomb boards, and heavy card stock.
Foams & Signage: Foam core boards, expanded polystyrene (EPS), polyurethane foams, and soft foam packaging inserts.
Industrial Fabrics: Thick insulating mats, heavy felt, rubber gaskets, and dense acoustic paneling.
