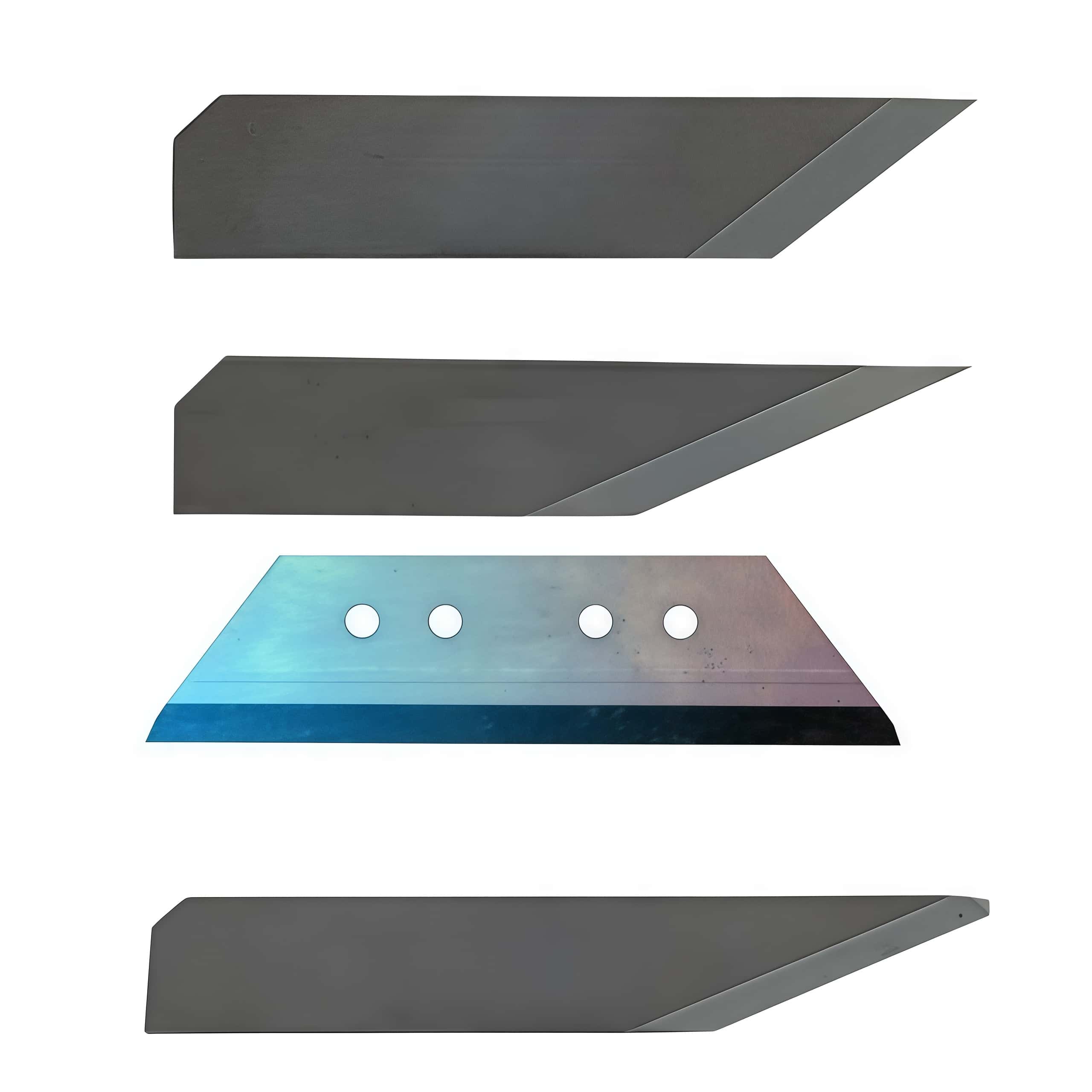

Elitron's Kombo SD/SDC and Booster series utilize specialized tungsten carbide and high-speed steel (HSS) blades designed for their multi-tool cutting heads. These machines support various cutting methods, including oscillating, drag, and V-cutting, to process materials ranging from thin films to 120mm thick rigid media.
Common Blade Types & Applications
The following table summarizes the most common blades used across Elitron series, primarily for oscillating and specialized cutting heads:
|
Blade Model |
Type |
Angle |
Max Cut Depth |
Typical Materials |
|
Oscillating |
— |
— |
Leather, Textiles, Foam |
|
|
Oscillating |
25° |
14mm |
Leather, Textiles, Cardboard, Foam |
|
|
Oscillating |
— |
— |
Tough flexible materials, Aramid fibers |
|
|
Electric/Osc. |
25° |
8mm |
Leather, Fabric, Cardboard |
|
|
V-Cut |
— |
— |
Honeycomb cardboard, Re-board |
Specialized Tooling for Series
· Kombo SD/SDC Series: Features a multi-tool head that can hold up to 5 tools. It often uses the DL 45 tool, a patented twin-blade module for creating clean 90° V-cuts in honeycomb materials in a single pass.
· Booster Series: Specifically engineered for the leather and footwear industry, its multi-tool carriage can be configured with up to 7 tools. It relies heavily on high-precision oscillating knives (like the 135502) for complex leather patterns.
· Other Tools: Besides standard knives, these systems support Kiss-cutting knives for vinyl, Rotating wheels for textiles, and Creasing wheels for packaging.
