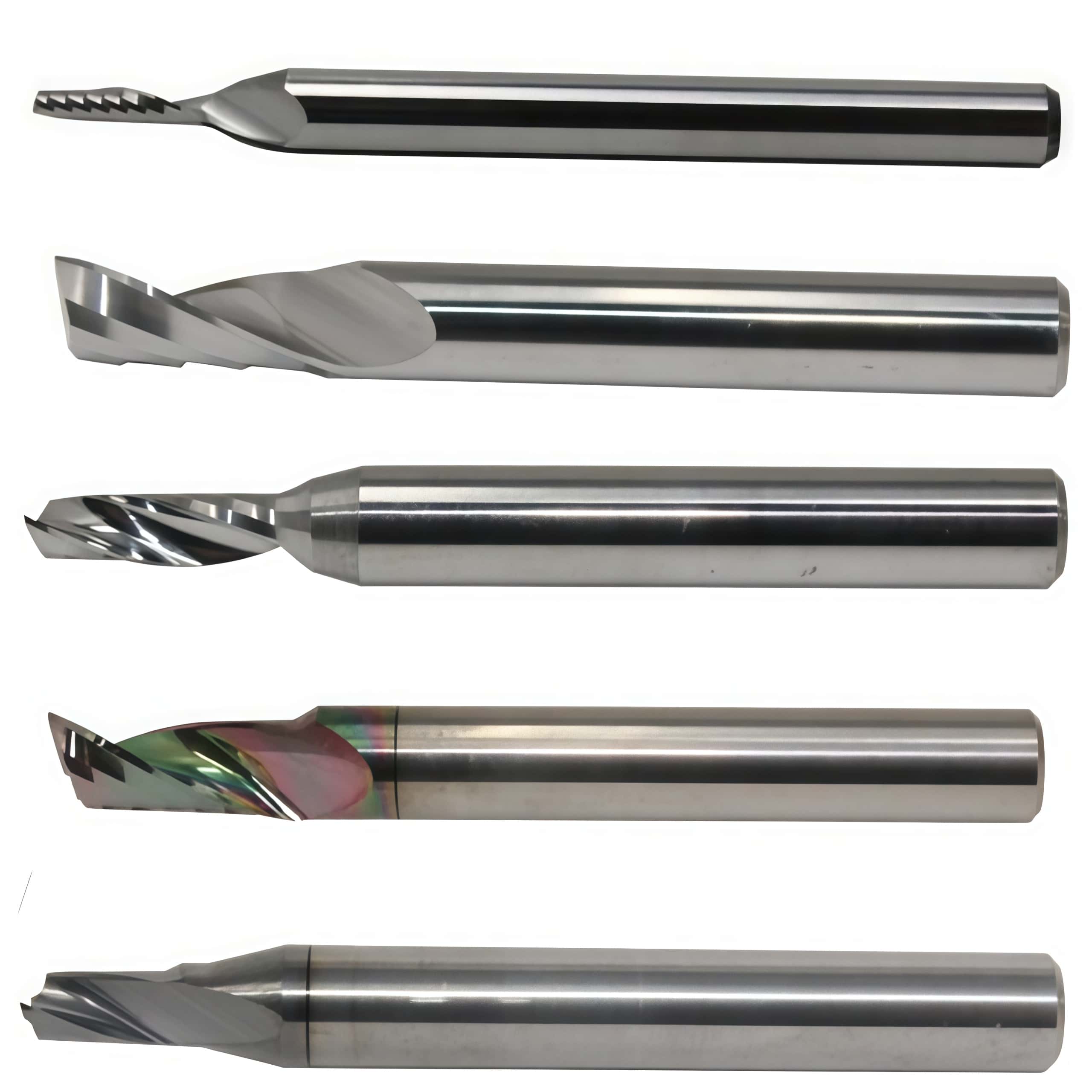

Colex T00502 T00527 T00494 T00508 T00530 Upcut Spiral Router Bits Replacement
Colex router bits you listed are primarily high-quality upcut spiral bits designed for the Colex Sharpcut Flatbed Cutter and similar CNC systems. These bits are commonly used for high-speed precision cutting of plastics, aluminum, and composite materials like ACM (DiBond).
Detailed Specifications for Each Model
|
SKU |
Type |
Cut Diameter |
Cut Length |
Shank |
Recommended Materials |
|
Upcut, 1 Flute |
6mm (~1/4") |
12mm (~7/16") |
6mm |
Soft/Hard Plastic, Polished Acrylic, ACM, Wood |
|
|
Upcut, 1 Flute (Superior Coated) |
6mm (~1/4") |
12mm (~7/16") |
6mm |
Aluminum, ACM (DiBond), Acrylic (Wet/Dry) |
|
|
Upcut, 1 Flute |
1.5mm (~1/16") |
6mm (~1/4") |
1/8" |
Soft and Hard Plastics |
|
|
Upcut, 1 Flute |
6mm (~1/4") |
12mm (~7/16") |
6mm |
Universal use: Plastics, ACM, Wood, Acrylic |
|
|
Upcut, 1 Flute (DLC Coated) |
6mm (~1/4") |
6mm (~1/4") |
6mm |
Aluminum and ACM (Superior for high-volume cutting) |
Key Application Insights
· Upcut Performance: The spiral design of these bits pulls chips upward and away from the material. This is critical for preventing heat buildup and melting when working with materials like acrylic or plastics.
· Specialized Coatings:
The T00527 features a "Superior" coating to extend tool life by up to 3x when cutting abrasive materials like aluminum.
The T00530 uses a DLC (Diamond-Like Carbon) coating, specifically engineered for dry or wet cutting of non-ferrous metals and composites without material adhesion.
· Substitution Note: If the T00508 is unavailable, Colex recommends using the T00502 as a substitute due to their nearly identical universal performance profile.
· Compatibility: Most of these bits feature a 6mm shank, which is standard for Colex’s CNC routing systems. The T00494 is the exception with a smaller 1/8" shank for fine detail work.
