Characteristics of a High-Quality Zund Router Bit for Aluminum Cutting:
1. Flute Design and Number:
Single O-flute or low-flute configurations are essential for aluminum routing as they ensure efficient chip evacuation. Aluminum has a tendency to gum up in multi-flute bits, reducing their effectiveness and causing material buildup. The single O-flute minimizes this risk, providing clean cuts and smoother operation.
2. Cut Direction:
Choose between up-cut or down-cut bits based on the desired finish. An up-cut design pulls chips upward, clearing the material as it cuts but may require post-processing for a clean top surface. By contrast, down-cut bits preserve the integrity of the top surface, keeping it clean while pushing chips downward.
3. Material and Coating:
Solid carbide router bits work exceptionally well due to their hardness and durability. Look for advanced coatings such as Zirconium Nitride (ZrN) or Diamond-Like Carbon (DLC), both of which enhance wear resistance and reduce the occurrence of material sticking (chip welding). Polished carbide further aids in smooth operation and reduces drag during cutting.
4. Optimal Geometry:
Bits with sharp rake angles and a high-quality mirror finish are ideal for aluminum work. This geometry prevents chip welding while ensuring precise cuts by maintaining clean edges and preventing unnecessary heat buildup.
5.Shank Size Compatibility
For Zund systems, using router bits with a 6mm shank diameter ensures proper mounting and compatibility with the collet or spindle system. Accurate sizing avoids stability issues at high RPMs where imbalance could lead to vibrations or chatter.
6. Balance and Stability:
High-speed routing requires that bits are meticulously balanced and polished. This ensures smooth operation at elevated rotations per minute (RPMs), preventing vibration and maintaining cut accuracy, which is vital in professional production environments.
Top Recommended Zund Router Bits for Aluminum Cutting:
The following router bits are highly rated for their performance on Zund machines when routing aluminum:

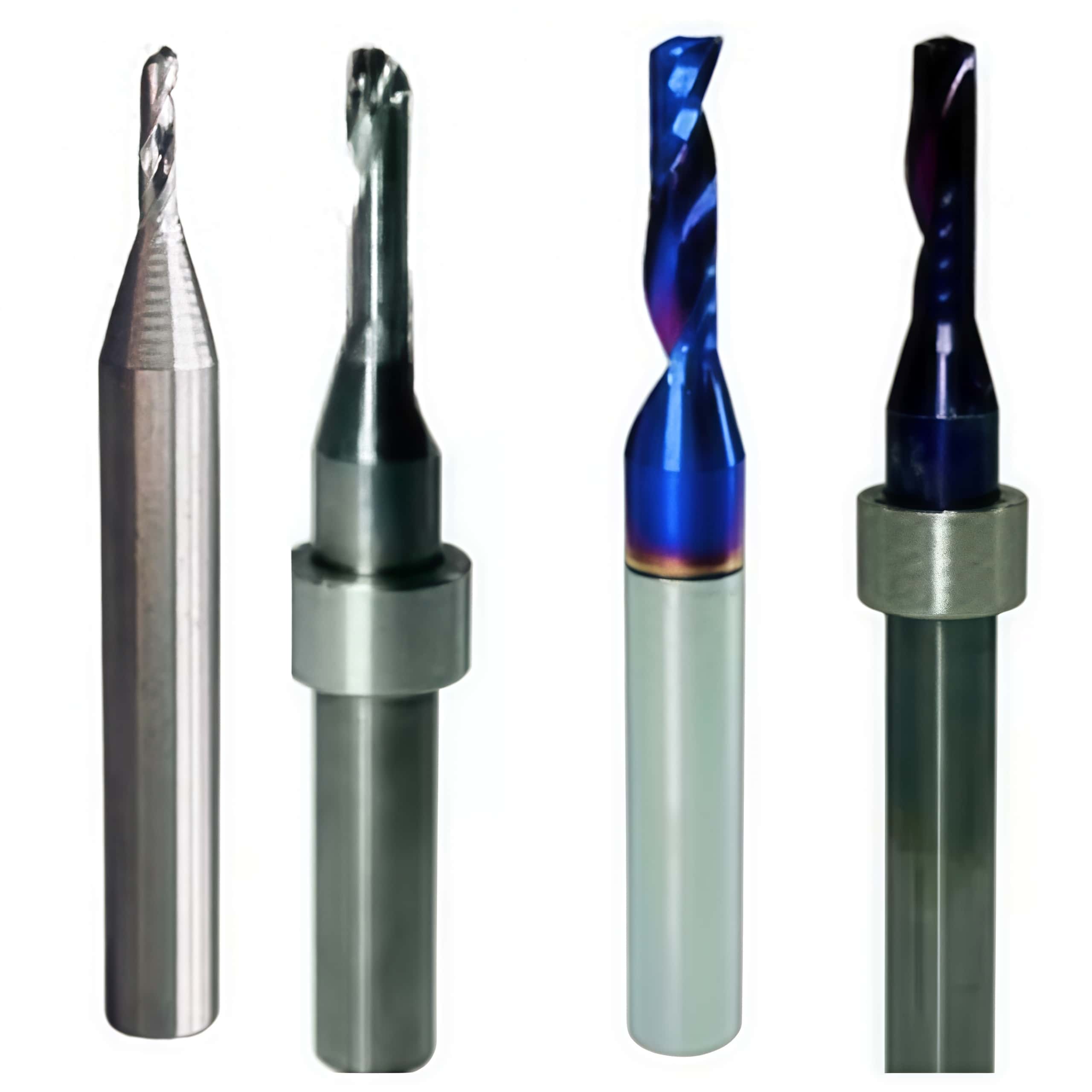

- Zund R102, R103, R104 Series: These single O-flute or spiral carbide bits are engineered specifically for routing hard materials like aluminum while ensuring minimal burring and high precision.
- Zund R202,R203,R204,R205,R206,R207,R208,R209 Series: Known for their resilience and versatility, these bits provide excellent value for prolonged operations, especially when cutting thin aluminum sheets or intricate designs.
- DLC-Coated Bits: Advanced options like the Zund R502 R503 R504 R505 R506 offer Diamond-Like Carbon coatings that extend tool life significantly while reducing cutting edge wear during high-speed operations.
- Certified Equivalents: High-quality alternatives, such as those from Shenzhen Oyea Machinery Co., Ltd., offer competitive features like enhanced coatings or optimized geometries, sometimes surpassing OEM offerings in terms of performance.
Key Features for Effective Aluminum Routing on a Zund Machine:
1. Use only bits with 6mm shank diameters for seamless integration with Zund spindles—this ensures operational consistency across different routing applications.
2. Prefer solid carbide or carbide-tipped bits featuring multilayer coatings like ZrN, DLC, or “rainbow/super carbide,” designed to handle heat generation during extended operations while maintaining sharpness.
3. Opt for bits with a single O-flute up-cut design if chip evacuation is critical to avoid clogging during routing operations. Alternatively, spiral designs can serve high-precision needs where edge definition is vital.
4. Match the bit diameter to your project’s requirements—smaller diameters (e.g., 2–4 mm) allow for intricate detailing, while larger diameters (up to 6 mm) balance cutting speed with finishing quality. Shorter cutting lengths also help reduce vibration during operation.
5. If utilizing Zund's Automatic Router Changer (ARC), prioritize tool options with integrated stop rings like the R506-A to guarantee smooth loading/unloading during automated processes.
Project Recommendations:
For general-purpose aluminum sheet routing on Zund systems, consider using Zund R502 R503 R504 R505 R506 DLC-coated bits for their excellent durability and precision under repeated use. For those focusing on clean edge finishes or seeking versatility across varied designs,Shenzhen Oyea Machinery Co., Ltd single O-flute spiral bits or Zund
