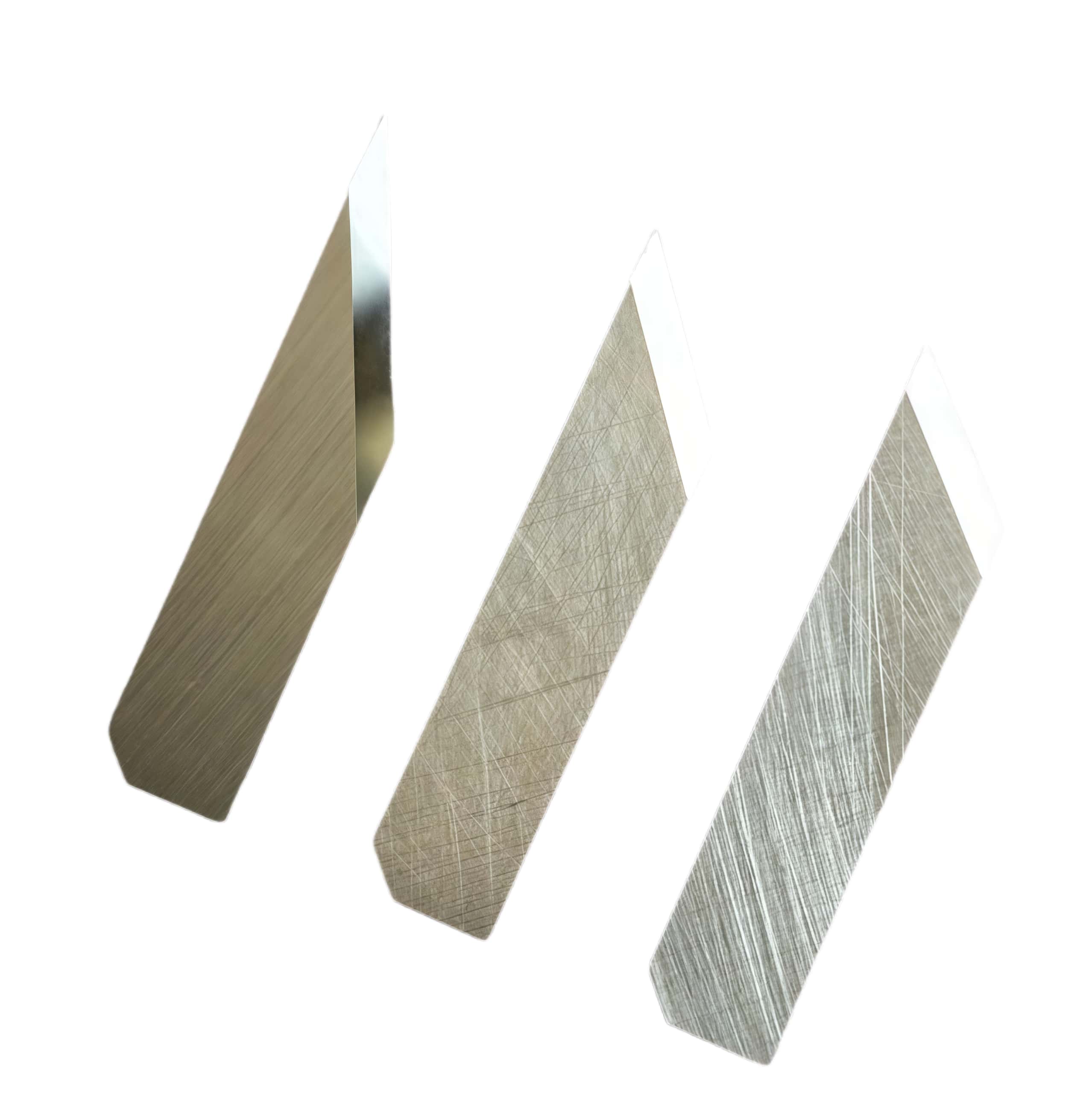

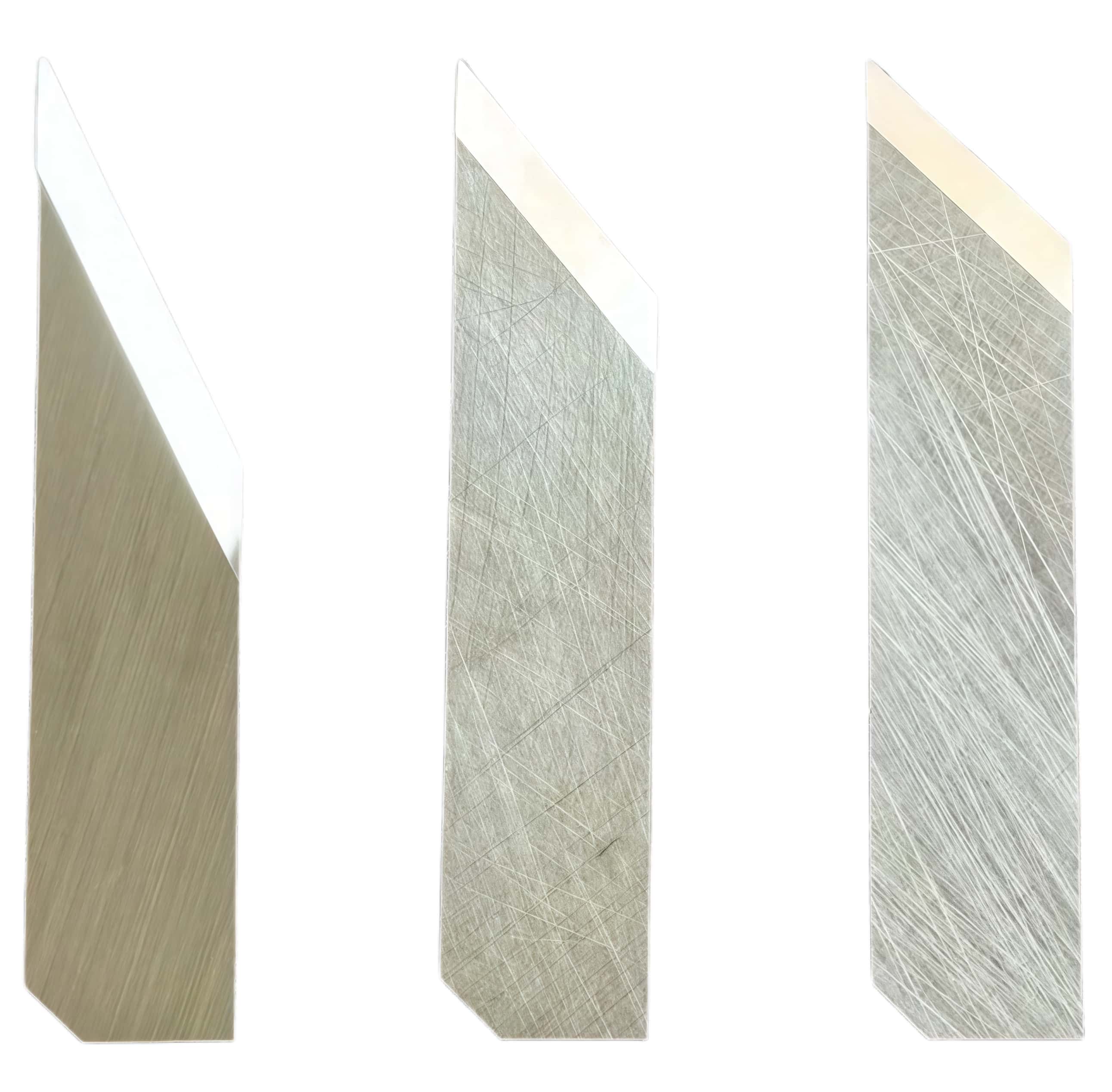

The ELITRON oscillating knife blades 135502, 135503, and 135500 are specialized cutting blades designed for Elitron automatic cutting plotters, used for cutting materials such as leather, textiles, cardboard, foam, synthetics, and eco-leather.
Here are key details for each blade type:
- ELITRON 135502:
- Dimensions: 35x7x1 mm
- Cutting angle: 25°
- Max cutting depth: 8-14 mm depending on the source
- Suitable for materials including leather, textile, cardboard, foam, and synthetics
- ELITRON 135503:
- Features a 38° cutting angle
- Thickness of 1.00 mm
- Designed for accurate cutting of materials such as folding carton, leather, and textiles
- ELITRON 135500:
- Ultra-thin oscillating knife blade
- Diameter about 110 mm with dovetail tooth form (specific function and certification details available)
- Used for precise cutting applications
Here is a comparison chart for the ELITRON 135502, 135503, and 135500 ITTA Oscillating Knife Blades based on available specifications:
|
Feature |
|||
|
Cutter Brand |
Elitron |
Elitron |
Elitron |
|
Knife Height |
35.00 mm |
35.00 mm |
Not explicitly stated, approx. 35 mm |
|
Knife Width |
7.00 mm |
7.00 mm |
Not explicitly stated, approx. 7 mm |
|
Cutting Angle |
25° |
38° |
Not explicitly stated, dovetail tooth |
|
Thickness |
1.00 mm |
1.00 mm |
Ultra-thin blade |
|
Max Cutting Depth |
8.00 mm |
9.50 mm |
Not specified |
|
Mounting |
Flat 1 mm |
Flat 1 mm |
Not specified |
|
Blade Type |
Flat, Oscillating |
Flat, Oscillating |
Oscillating |
|
Materials for Cutting |
Folding Carton, Leather, Textiles |
Folding Carton, Leather, Textiles |
Various, with precision cutting focus |
|
Material Composition |
Tungsten Carbide |
Tungsten Carbide |
Tungsten Carbide |
Summary:
The 135502 and 135503 blades are typically 35 mm in height and 7 mm in width, 1 mm thick with cutting angles suited for their respective cutting tasks. They are compatible with Elitron cutting machines and also referenced under ITTA and RuiZhou RZCUT equivalents.These blades are known for high durability and smooth, precise cutting performance, ideal for intricate and varied material usage.
If a user needs replacement or compatibility details for Elitron oscillating knives in cutting systems like Booster, Dinamo, Kombo, or others, these three blade numbers cover essential cutting blade options for various applications in digital cutting of synthetic and natural materials.
