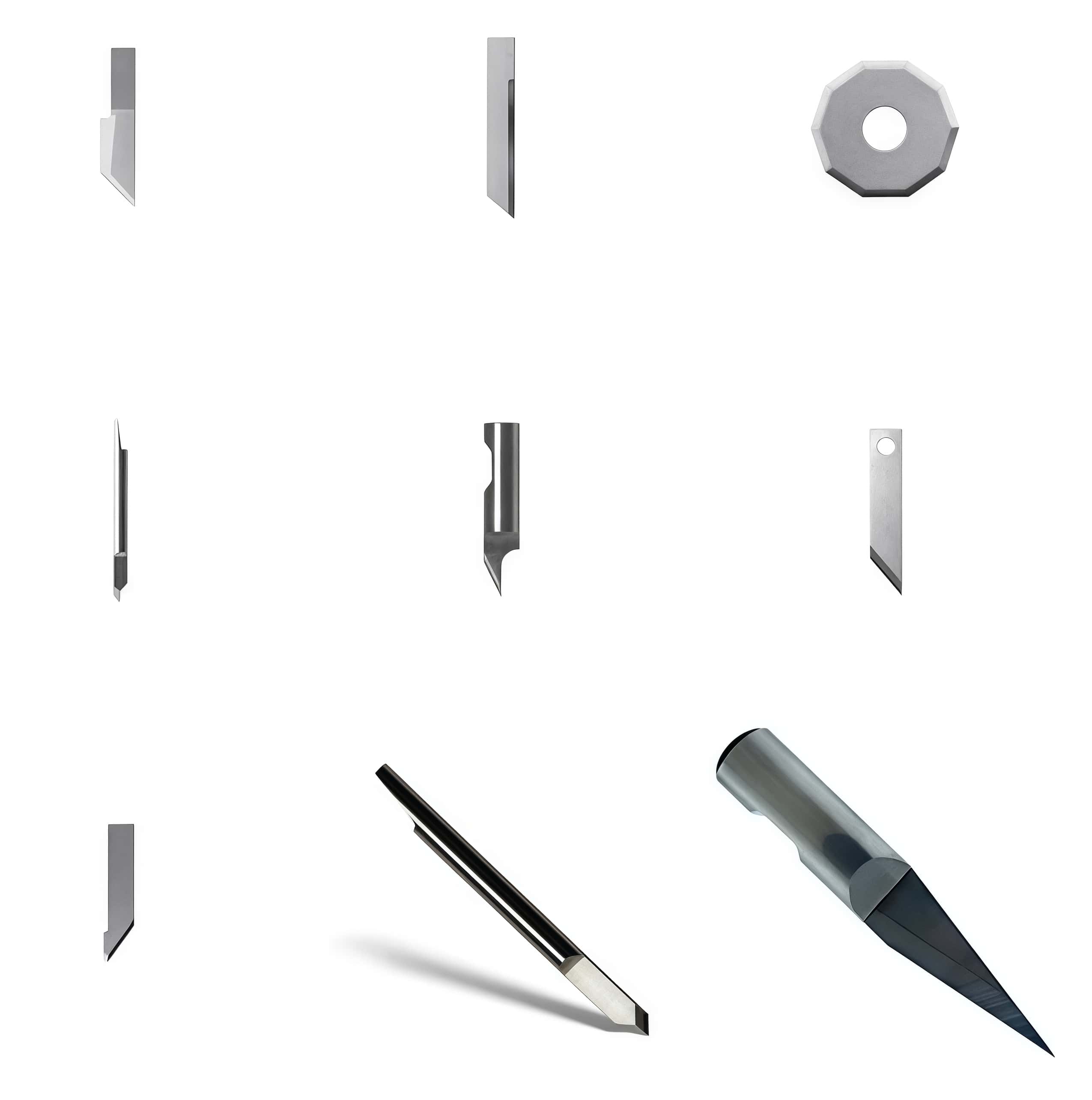

Main Types / Models of ITC CNC Knife Blades
From ITC’s catalog and catalogs of related suppliers, these are common blade types offered under the “knife blade” category.
| Blade Type | Typical ITC Model(s) | Characteristics / Use Case |
|---|---|---|
| Flat Drag Knife Blades | e.g. BDF-10, BDF-11, BDF-12DE, BDF-16, BDF-17, etc. | These are fixed-angle blades that “drag” across material. They’re good for cutting thin, flexible materials like vinyl, adhesives, foils, magnetic sheets, etc. |
|
Round Shank Drag Knife Blades |
e.g. BDR-1, BDR-2, BDR-3, BDR-116, BDR-117, etc. |
Similar to flat blades but with a round shank. Often used for kiss cuts (partial cuts) or softer to mid materials like foils, vinyl, light plastics. |
|
Oscillating Knife Blades |
e.g. BOP-20, BOP-21, BOP-22, BOP-23, etc. |
These blades oscillate (move up/down rapidly) so they slice rather than drag. They are better for thicker or more challenging flexible materials — fabrics, foam, soft plastics, etc. |
|
V-Cut / Angled / Specialty Blades |
e.g. BDF-70, BDF-71 (for V-cut) | Used when you need angular cuts (e.g. 45°, 90°) for folding, creasing, or forming corners. |
| Tangential Knife Blades |
(sometimes labeled under “T” or “SxT” variants) |
These blades can be lifted, rotated, and re-engaged by a servo mechanism. They’re good for complex cuts, thicker or stiffer materials (leather, gasket, composite) where drag knives might chatter or lose precision. |
| Rotary / Rotation Blades | e.g. BRR-25, BRR-28, BRR-32 etc. | These are blade wheels that roll over the material, useful for fabrics, carpeting, etc. |
ITC also provides shaders, lengths, lip angles, etc., which affect performance.
How to Choose Which Model to Use
When picking which ITC blade model to use for a job, consider the following:
-
Material Type & Flexibility
-
For vinyl, foils, magnetic sheets, adhesive films: Flat drag or round shank drag knives often work best.
-
For foam, rubber, fabric, soft plastics: Oscillating knives may cut more cleanly.
-
For stiffer or thicker materials (e.g. leather, gasket, composites): Tangential or specialty blades may give better control.
-
-
Material Thickness & Density
-
Thin materials → drag knife is often enough.
-
Thick or denser materials → oscillating or tangential is safer to avoid tearing or overloading the blade.
-
-
Cut Complexity and Precision
-
Simple straight or gentle curves → drag knives.
-
Intricate shapes, sharp inside corners → tangential knives since they can reorient.
-
Angular folds, V-grooves → use V-cut / specialty blades.
-
-
Machine Capability & Blade Mounting
-
Ensure your CNC has the mechanism (drag knife holder, oscillating tool head, or tangential servo) to support the blade type.
-
Check the blade’s shank size, angle, and fitting with your tool head.
-
-
Lifespan and Cost Efficiency
-
Sometimes a slightly more expensive blade is justified if it lasts significantly longer or gives better cut quality (less rework).
-
Also consider whether the blade is coated or made of carbide versus HSS.
-
Here are a few highlights:
ZUND Z16 Drag Knife Blade is a drag-knife style blade with a 55° angle, useful for angled cuts in certain materials.
Screen paper cutter knife blade is a more general-purpose blade that might suit light materials.
69 mm Double‑edge flat knife is a double-edge flat blade, useful for straight cuts in broader materials.
These help illustrate how blade geometry (edge, angle, curvature) changes their suitability.
Recommendation / Suggestion
If I were picking a “default” or “main” model to start with (for a general-purpose setup), I’d suggest:
A flat drag knife (one of ITC’s BDF models) as a go-to for thin to medium flexible materials (vinyl, foils, magnetic, adhesive sheets).
Additionally, an oscillating blade as a supplementary blade for materials that the drag knife struggles with (foam, rubber, thick plastics).
ITC CNC knife blades are designed for production manufacturing and wholesale sales, catering to industries that prioritize professional quality and optimal performance. With a focus on delivering products that balance superior craftsmanship and competitive pricing, these blades are produced with precision in state-of-the-art facilities. Originating from China, Shenzhen Oyea Machinery Co., Ltd. serves as the trusted manufacturer and supplier, ensuring reliable factory-direct supply to meet various customer needs.
