Morgana Intec ColorCut Flatbed Tools Accessories Knife Blades
A comprehensive range of tools and accessories made for ColorCut

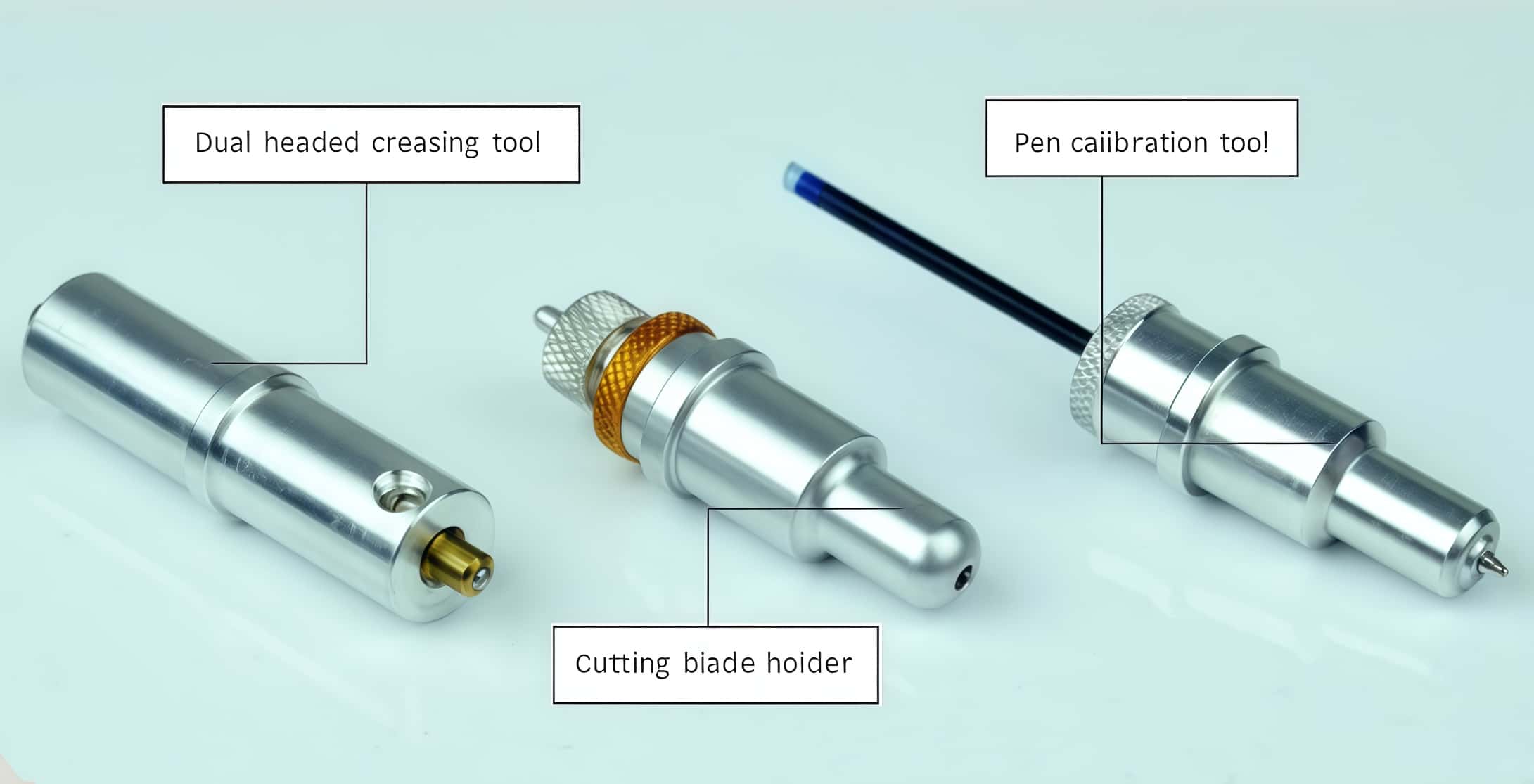

Creasing tool. This tool is double-ended,
offering a choice of tips for either wide or narrow creases, as desired. Precision engineered, this tool sits in the dual tool head.
Cutting tool. This precision engineered component sits in the dual tool head and holds the cutting blade of choice. The tool is manually adjustable to obtain the desired amount of 'blade out' for the job in hand.
Calibration tool. Used at set up and then periodically, to calibrate the cutter.
Cutting mat. This replaceable grey felt mat is ideal for achieving crisp cuts and deep creasing lines on a wide range of substrates. The natural density of the fibres allows the vacuum flow to pass through it for sheet retention. The innovative 'jigsaw' style joint makes it easy to replace.

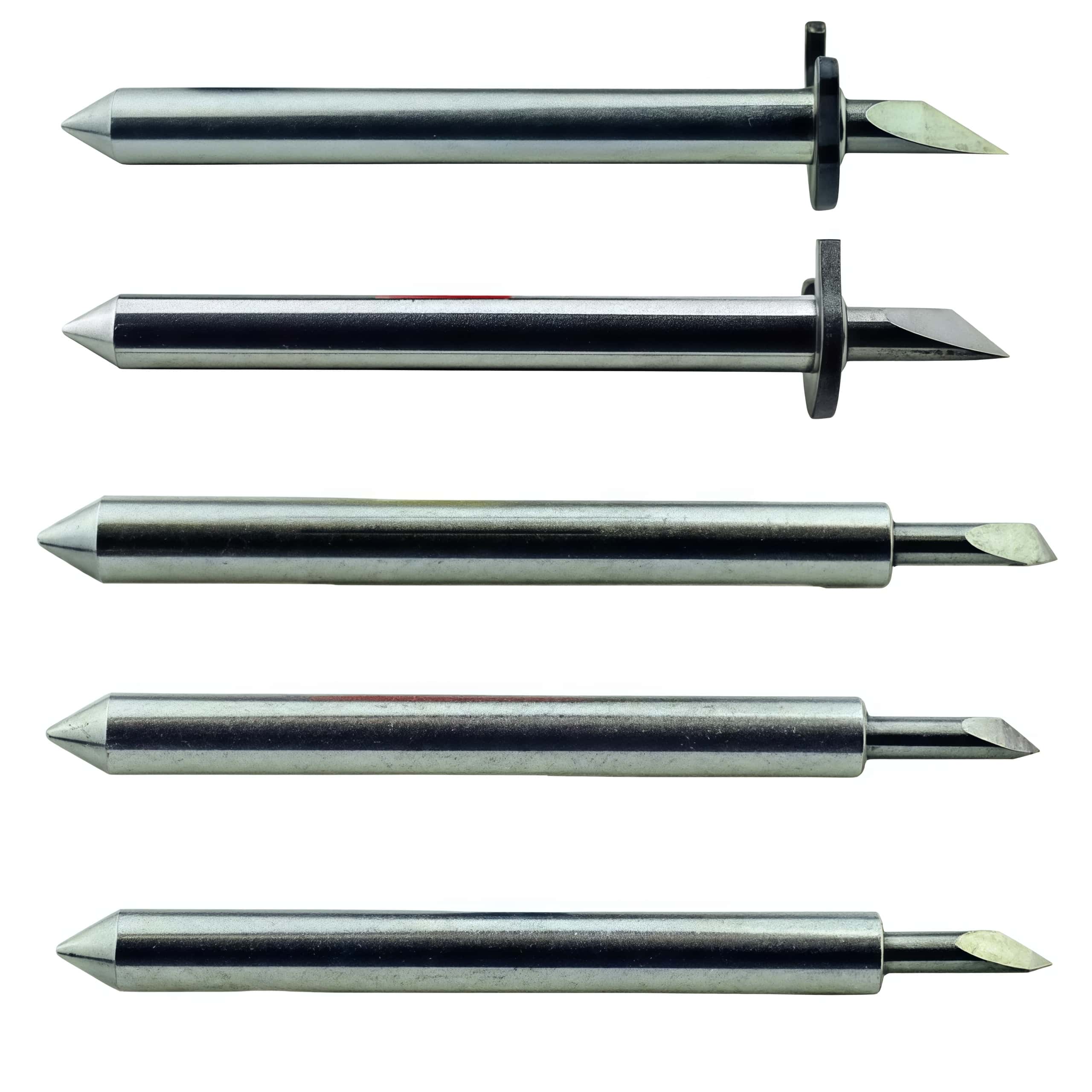

Cutting blades. Ultra-sharp and hard-wearing blades come in two types and three blade angles. Either as a pack of three of the same blade or as a mixed pack.

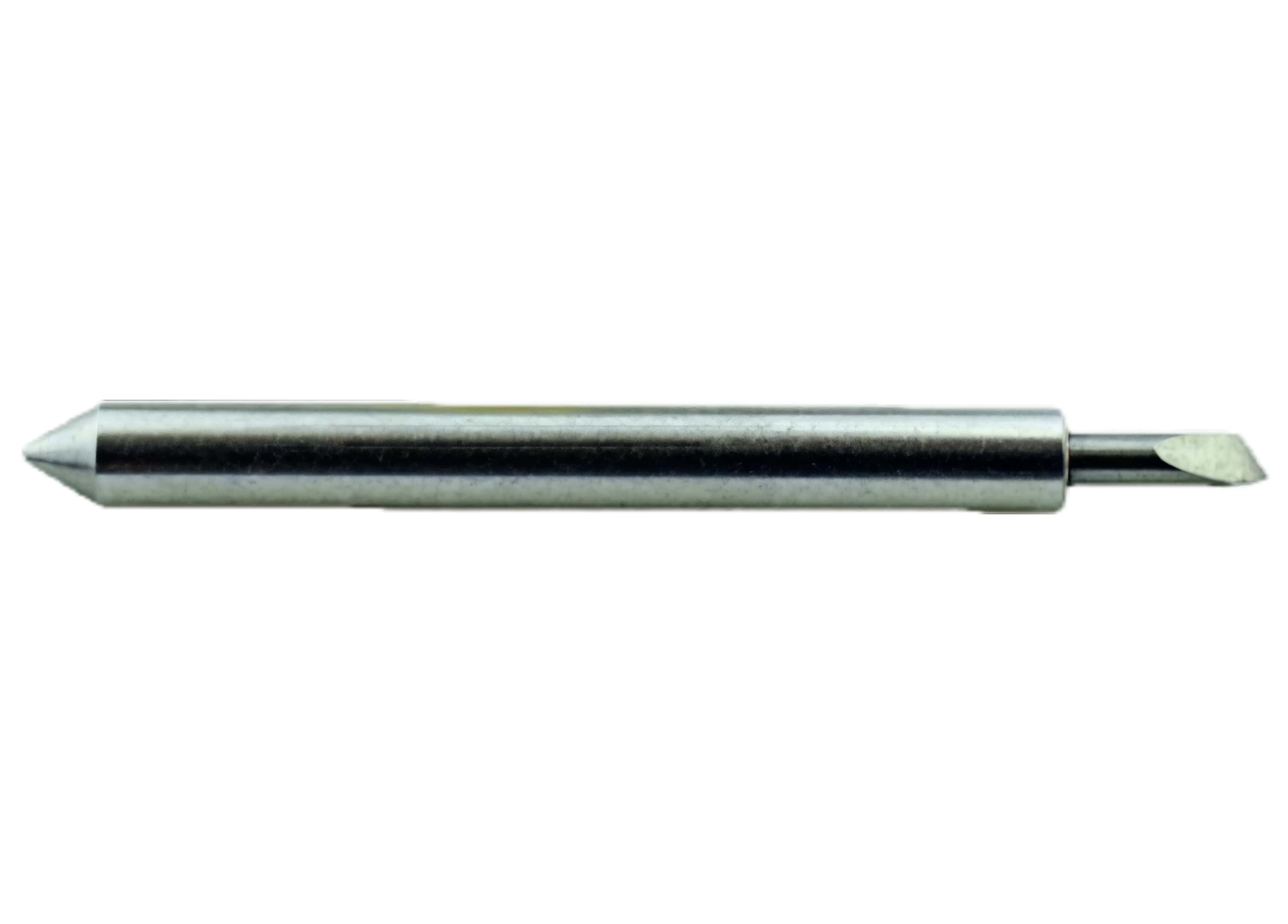

Yellow 30° 1mm ø - for film, very soft material, thin label material

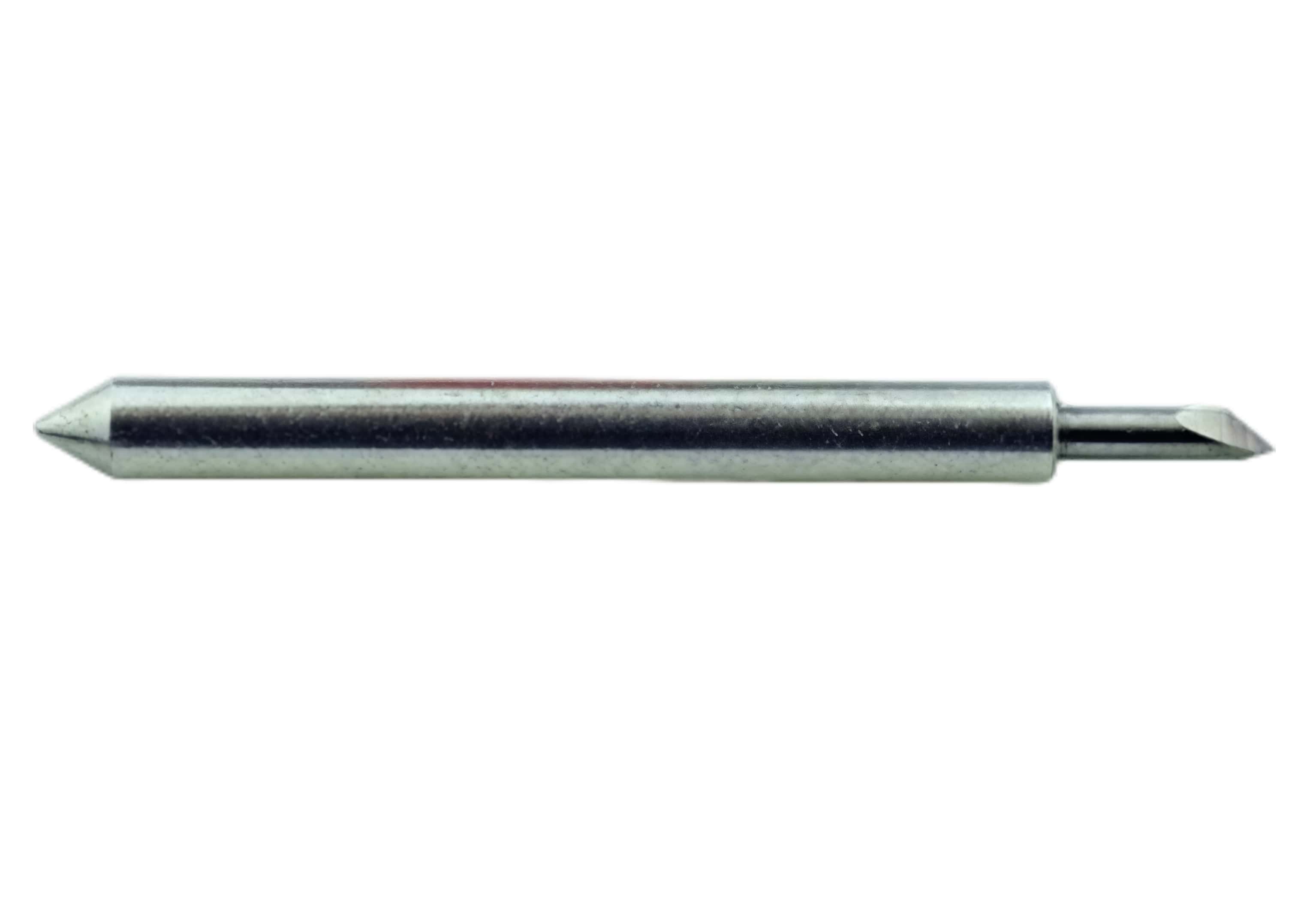

Blue 60° 1mm ø - for hard media. The sharply angled tip provides a sharper point edge. Suitable for penetrating harder media types
Circlip blades:

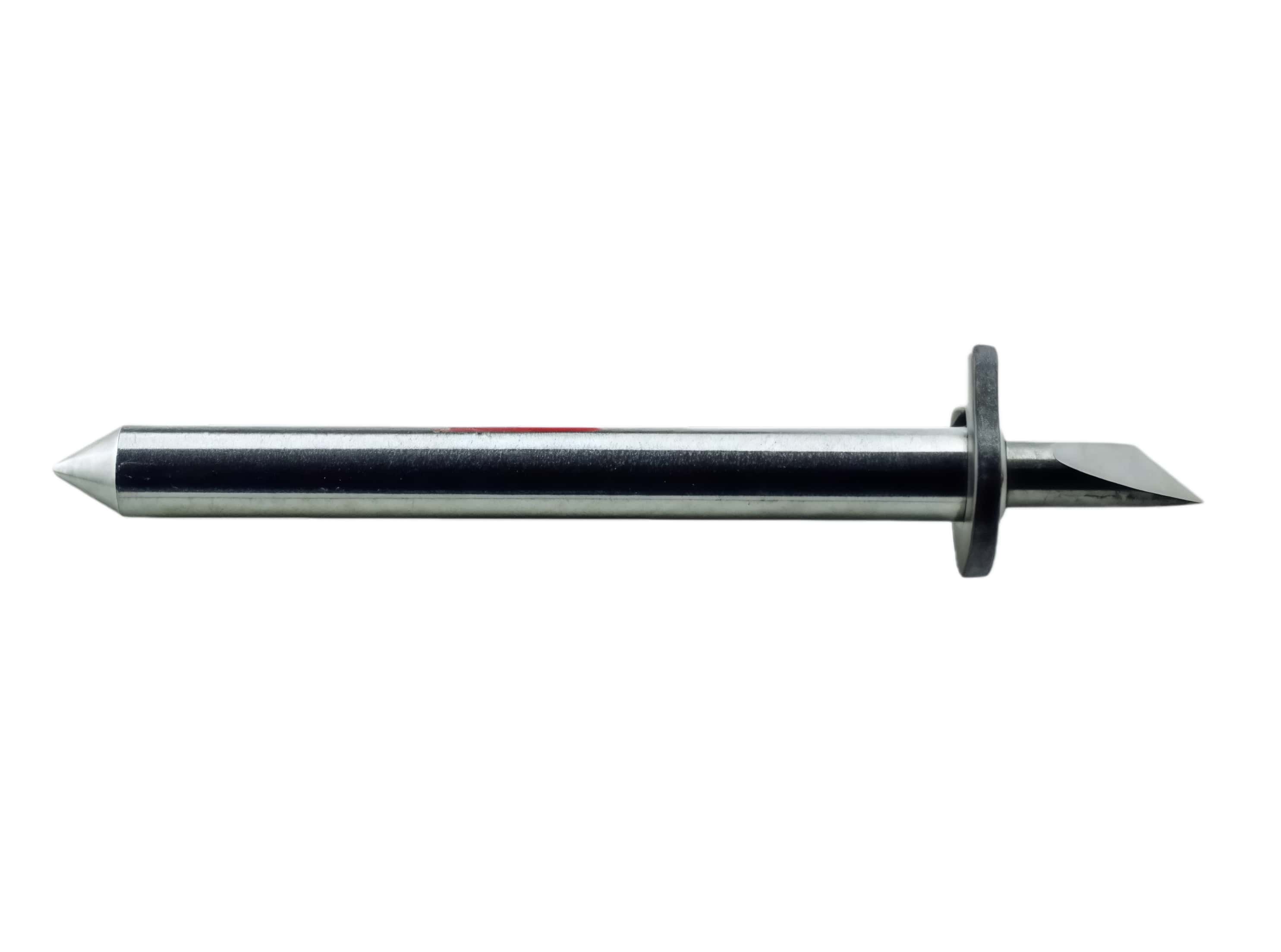

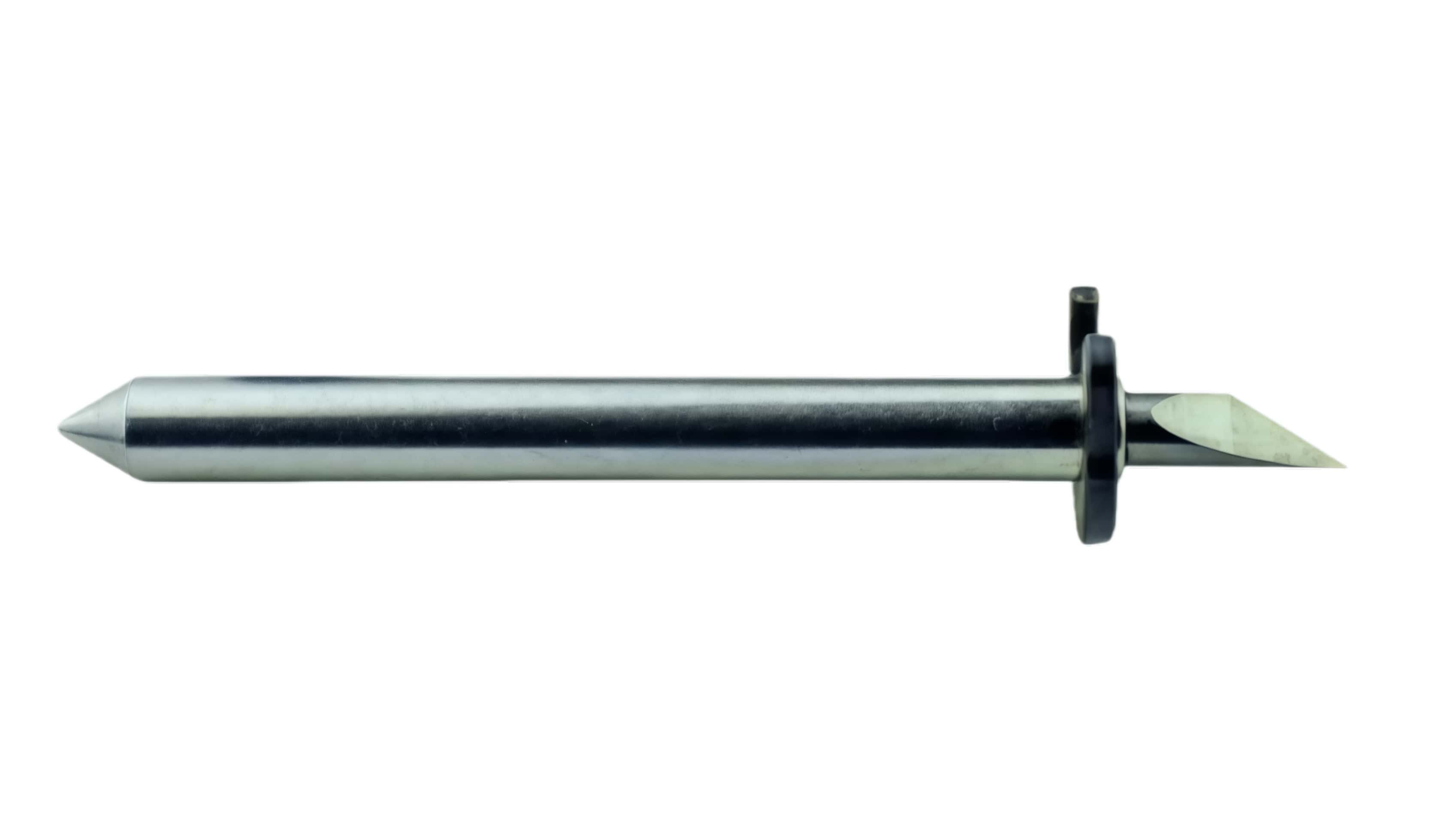

Red 45° 1.4mm ø - Most packing board up to 750 micron. Circlip provides better pressure and improves blade direction changes on dense media, from 0.25 to 0.75 mm thick
