Vinyl Plotter Cutter Machine Cutting Replacement Knife Blades Faq
1. What are vinyl plotter cutter blades?
Vinyl plotter blades are precision carbide or steel blades used in digital cutting machines to cut vinyl films, stickers, labels, heat-transfer vinyl (HTV), reflective materials, cardboard, and other thin substrates.
Common Blade Types
2. What are the main types of vinyl cutter blades?
-
30° blade – for thin films, standard vinyl, masking films
-
45° blade – all-purpose blade for most vinyl and HTV
-
60° blade – for thick, hard, or reflective materials
-

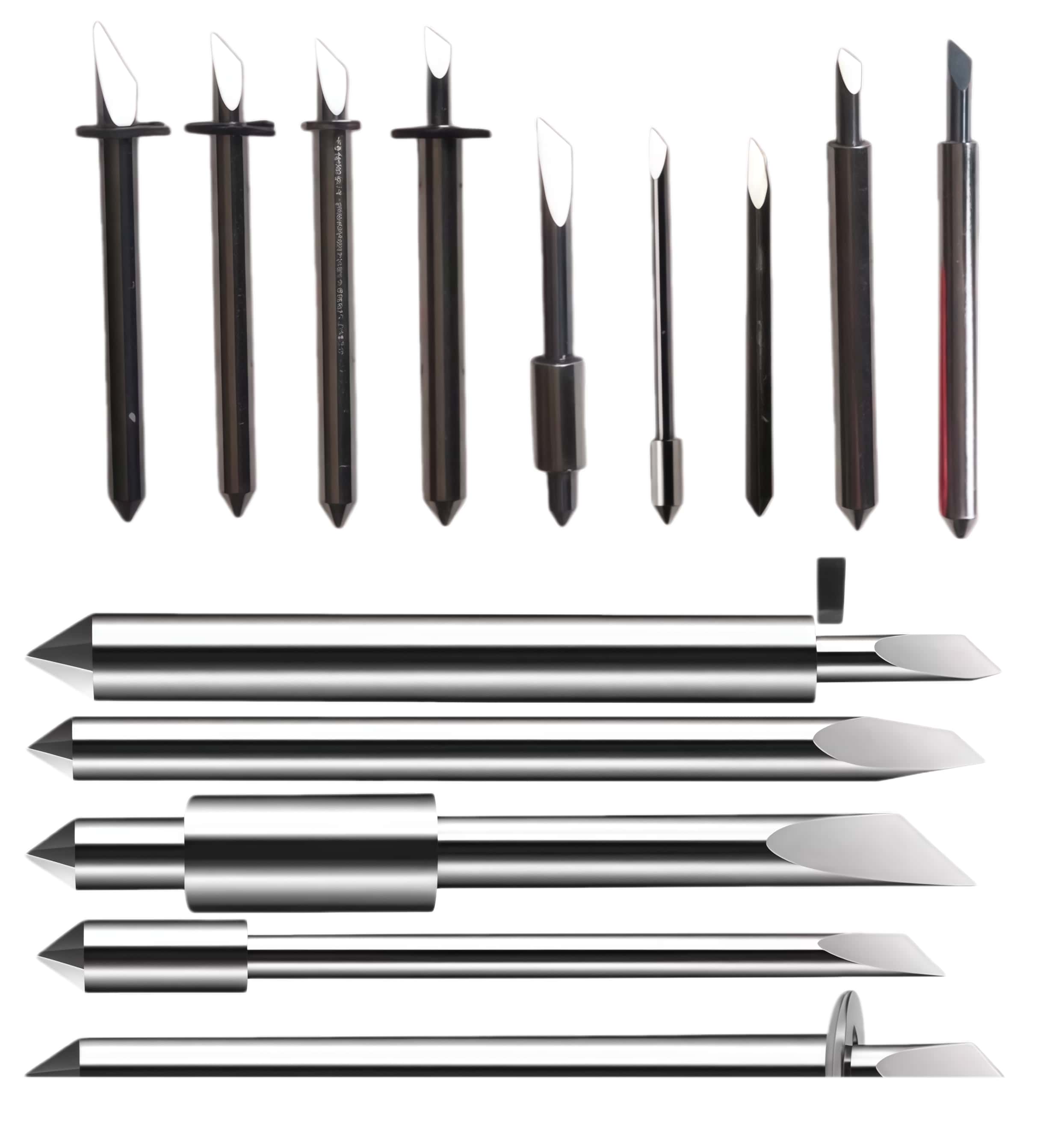

Specialty blades – fabric blade, deep-cut blade, kiss-cut blade, creasing tool, etc.
Blade Angle & Material
3. What does the blade angle mean?
The angle refers to the tip geometry:
-
Smaller angle (30°) – shallow, suited for thin materials
-
Larger angle (60°) – steeper, suited for thick or tough materials
4. What material are the blades made from?
Most quality blades are:
-
Tungsten carbide (best durability, sharpness)
-
HSS / tool steel (budget, lower lifespan)
Machine Compatibility
5. Are vinyl blades universal?
Not completely.
Blades differ by:
-
Shank diameter (e.g., 2mm, 2.5mm, 4mm)
-
Blade holder type
-
Length and seat position
-
Brand-specific housings (Roland, Graphtec, Mimaki, Summa, etc.)
6. How do I choose the right blade for my plotter?
Check:
-
Brand and model of your cutter
-
Holder type
-
Material thickness
-
Desired job (kiss-cut, through-cut, perf-cut)
Cutting Applications
7. Which blade angle should I use for different materials?
| Material | Recommended Blade |
|---|---|
| Standard self-adhesive vinyl | 45° |
| HTV | 45° / 60° |
| Reflective vinyl | 60° |
| Sandblast / thick stencil | 60° deep-cut |
| Paper & cardstock | 45° |
| Window tint film | 30° |
Blade Lifespan
8. How long does a vinyl cutter blade last?
Typical lifespan:
-
Roland/Graphtec-type blade: 500–1500 meters of vinyl
-
Reflective materials: Shorter due to abrasiveness
-
Cheap steel blades: 1/3 lifespan of tungsten carbide
Signs a blade needs replacing:
-
Jagged cuts
-
Lifting or tearing vinyl
-
Excessive force required
-
Corners not clean
Blade Setup & Force
9. How do I set correct blade depth?
Use the post-it note rule:
The blade tip should barely extend—just enough to cut a single sheet of paper.
10. What cutting force should I use?
Every machine differs, but typical ranges:
-
Standard vinyl: 60–90g
-
HTV: 100–140g
-
Reflective: 140–220g
-
Thick stencil: 250g+
(Start at lower force and increase gradually.)
Kiss-Cut & Through-Cut
11. What is kiss-cutting?
Cutting only the vinyl layer, leaving the backing intact.
Requires:
-
Proper blade depth
-
Lower cutting force
-
Sharp blade
12. What is through-cutting?
Cutting completely through the material and backing (usually with a cutting mat or perf-cut mode).
Maintenance
13. How do I maintain cutter blades?
-
Keep material clean (avoid dust, sand)
-
Use a good-quality cutting mat when needed
-
Regularly clean blade holder bearings
-
Replace worn-out holders to improve accuracy
Troubleshooting
14. Why is my vinyl not weeding properly?
Possible causes:
-
Dull blade
-
Too much force (causing lifting)
-
Too little force (not cutting corners)
-
Incorrect blade angle for material
-
Dirty or damaged blade holder
15. Why are corners rounded or incomplete?
-
Cutting speed too high
-
Dull blade tip
-
Offset setting incorrect
-
Wrong blade angle
Purchasing
16. How do I know if a blade is high quality?
Look for:
-
Tungsten carbide material
-
Mirror-polished tip
-
Precision grinding tolerance (< ±0.02 mm)
-
Trusted brands or OEM-compatible references
