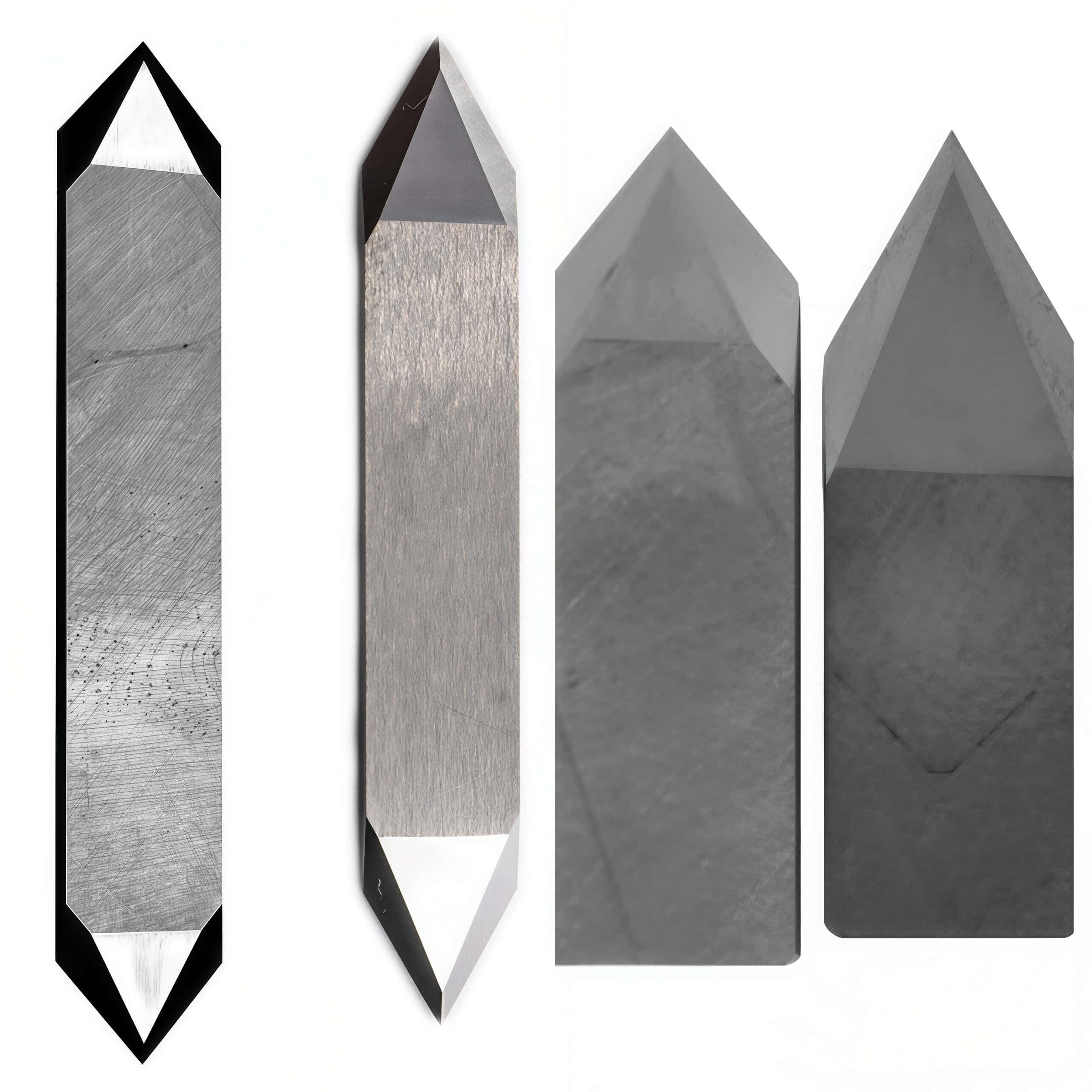

Esko Kongsberg Bld-Df212 Df213 Df112 Df113 Sword Knife Blade
BLD-DF212 Specifications
This tungsten carbide blade has an overall length of 50 mm, width of 8 mm, thickness (shank diameter) of 1.5 mm, and maximum cutting depth of 4.8 mm. It features a 50° angle and cutting edge length of 4.8 mm, suitable for canvas, hard foam, and PVC.
BLD-DF213 Specifications
The blade measures 50 mm in overall length, 8 mm wide, 1.5 mm thick, with a maximum cutting depth of 6.9 mm. It supports a 50° angle and is designed for general-purpose cutting of cardboard, foil, and tarpaulin.
BLD-DF112 Specifications
Dimensions include a height/length of 25 mm, width of 8 mm, thickness of 1.5 mm, and max cutting depth around 4.5-5.0 mm. With a 50° angle, it handles paper, vinyl, and styrene.
BLD-DF113 Specifications
It has a total length of 25 mm, width of 8 mm, thickness of 1.5 mm, and maximum cutting depth of 6.5-6.9 mm. The 60° angle makes it ideal for corrugated cardboard and polycarbonate.
Dimensions Comparison
|
Blade Model |
Length/Height (mm) |
Width (mm) |
Thickness (mm) |
Max Cut Depth (mm) |
Edge Angle |
|
50 |
8 |
1.5 |
4.8 |
50° |
|
|
50 |
8 |
1.5 |
6.9 |
50° |
|
|
25 |
8 |
1.5 |
4.5-5.0 |
50° |
|
|
25 |
8 |
1.5 |
6.5-6.9 |
60° |
