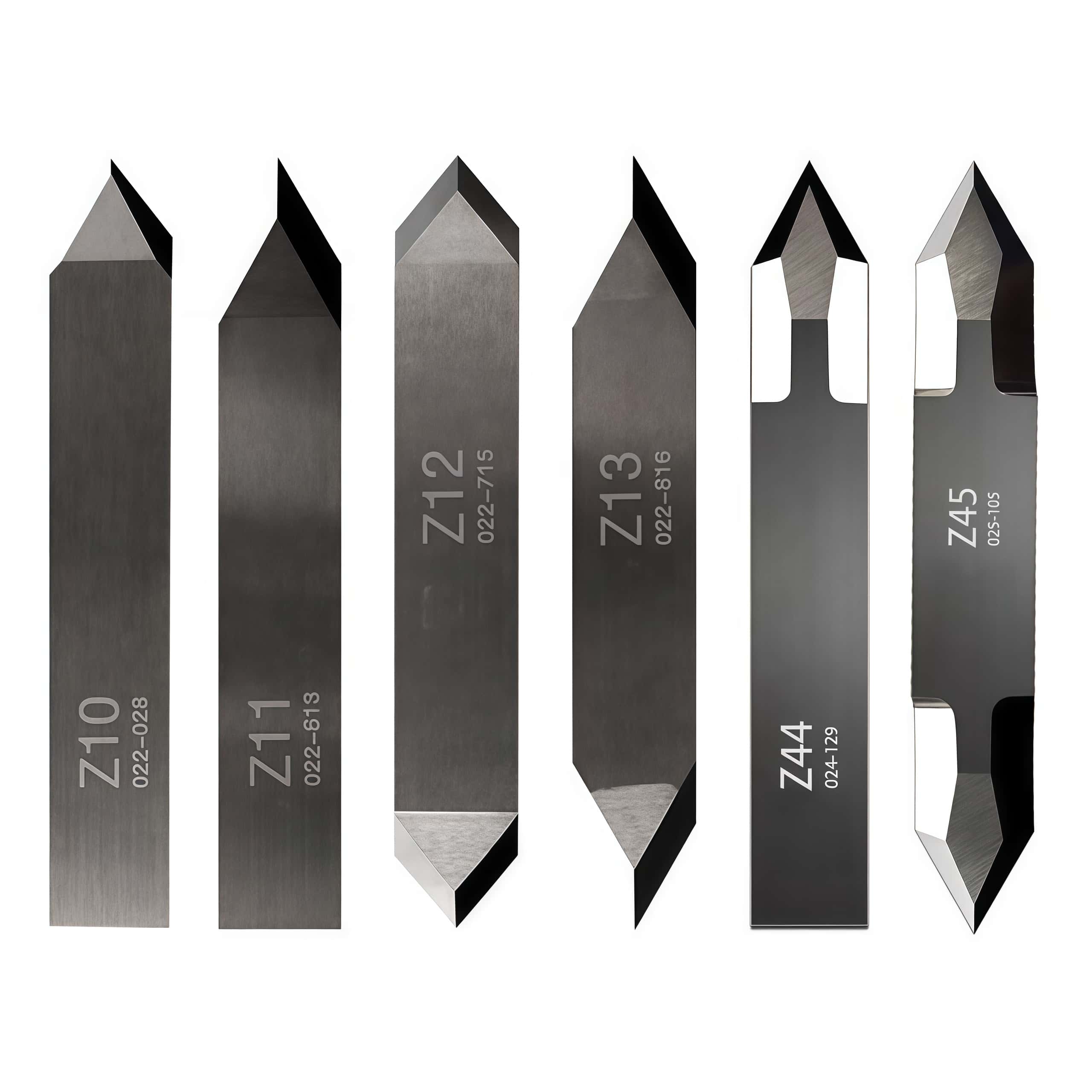

Zund Z10 Z11 Z12 Z13 Z44 Z45 Digital Cutter Compatible Knife Blades

For Zund digital cutters, the Z10, Z11, Z12, Z13, Z44, and Z45 are flat-stock drag blades typically made from tungsten carbide for high durability. These blades are primarily used with non-powered Universal Cutting Tools (UCT) and Static Cutting Tools (SCT) to achieve high processing speeds on various flexible and semi-rigid materials

Blade Specifications & Compatibility

Blade Model	Cutting Angle	Max Cut Depth	Key Features & Applications
Z10	50°	4.8 mm	Single-edged; ideal for reflective vinyl, PVC, and textiles.
Z11	60°	6.9 mm	Single-edged; suited for hard materials like tarpaulin, PVC banners, and polycarbonate.
Z12	50°	4.8 mm	Double-edged version of Z10 ; provides double the service life.
Z13	60°	6.9 mm	Double-edged version of Z11 ; identical parameters with extended life.
Z44	45° / 90°	~1.5 mm thickness	Double-sided; designed for fibrous materials like carpet and thick tarpaulin.
Z45	45° / 90°	~1.5 mm thickness	Upgraded double-sided version of Z44 , often featuring DLC (Diamond-Like Carbon) coating for reduced friction and longer life.

Selecting the Appropriate Blade
For Precision Vinyl/Film: Opt for the Z10 or its double-edged version, the Z12. Both feature a 50° angle tailored for cutting thin, adhesive-backed materials with precision.
For Durable/Thick Materials: The Z11 or Z13, designed with a 60° angle, performs best on tougher stocks such as folding cartons or polyester fabrics. Their broader angle is ideal for managing higher levels of resistance.
For Carpet/Fibrous Materials: The Z44 or Z45 blades are the best choice due to their flat-stock construction, which is specifically crafted to "drag" smoothly through heavy fibers without causing snags.
