How Do Sinajet Blade Numbers N17, Y17, And Y24 Map To Specific Cutter Models
The Sinajet blade numbers N17, Y17, and Y24 map to specific types and models of Sinajet cutters primarily as follows:
· N17 Series (e.g., N17-05): These are oscillating or specialized knife blades designed for various Sinajet digital flatbed cutters. They come in multiple shapes and forms suited for different material types and cutting tasks. The N17 series blades fit machines that accommodate oscillating blades, often used for cutting materials like textiles, composites, and vinyl.
· Y17 and Y24 Series: These are rotary (circular) tungsten carbide knife blades specifically designed for Sinajet flatbed cutting systems. Both Y17 and Y24 blades typically have an outer diameter of 38.5 mm, inner diameter of 8 mm, and blade thickness of 0.63 mm. They are compatible with Sinajet flatbed cutters that use rotary cutting tools. These blades are ideal for precise cuts on materials such as textiles, leather, films, PVC, corrugated paper, composite boards, EVA sponge, and carbon fiber honeycomb boards.
Summary of Blade-to-Cutter Mapping:
|
Blade Series |
Type |
Compatible Cutter Type |
Common Applications |
|
N17 Series |
Oscillating |
Sinajet digital cutters supporting oscillating knives |
Textiles, composites, vinyl, specialized cuts |
|
Y17 Series |
Rotary Circular |
Sinajet flatbed cutter models with rotary tool mount |
Textiles, leather, films, composites |
|
Y24 Series |
Rotary Circular |
Sinajet flatbed cutter models with rotary tool mount |
Similar to Y17, for precise multi-material cutting |
Both Y17 and Y24 rotary blades require the corresponding rotary blade mounting system designed for the Sinajet flatbed cutter models. The N17 series oscillating blades fit into the oscillating knife holder mount of compatible Sinajet cutters.
For exact cutter model compatibility and possible adapter requirements, verifying the cutter’s specifications and blade fitting dimensions (diameter, thickness, and mounting style) with the blade datasheets or supplier is important.
More knife type:http://www.china-oyea.com\

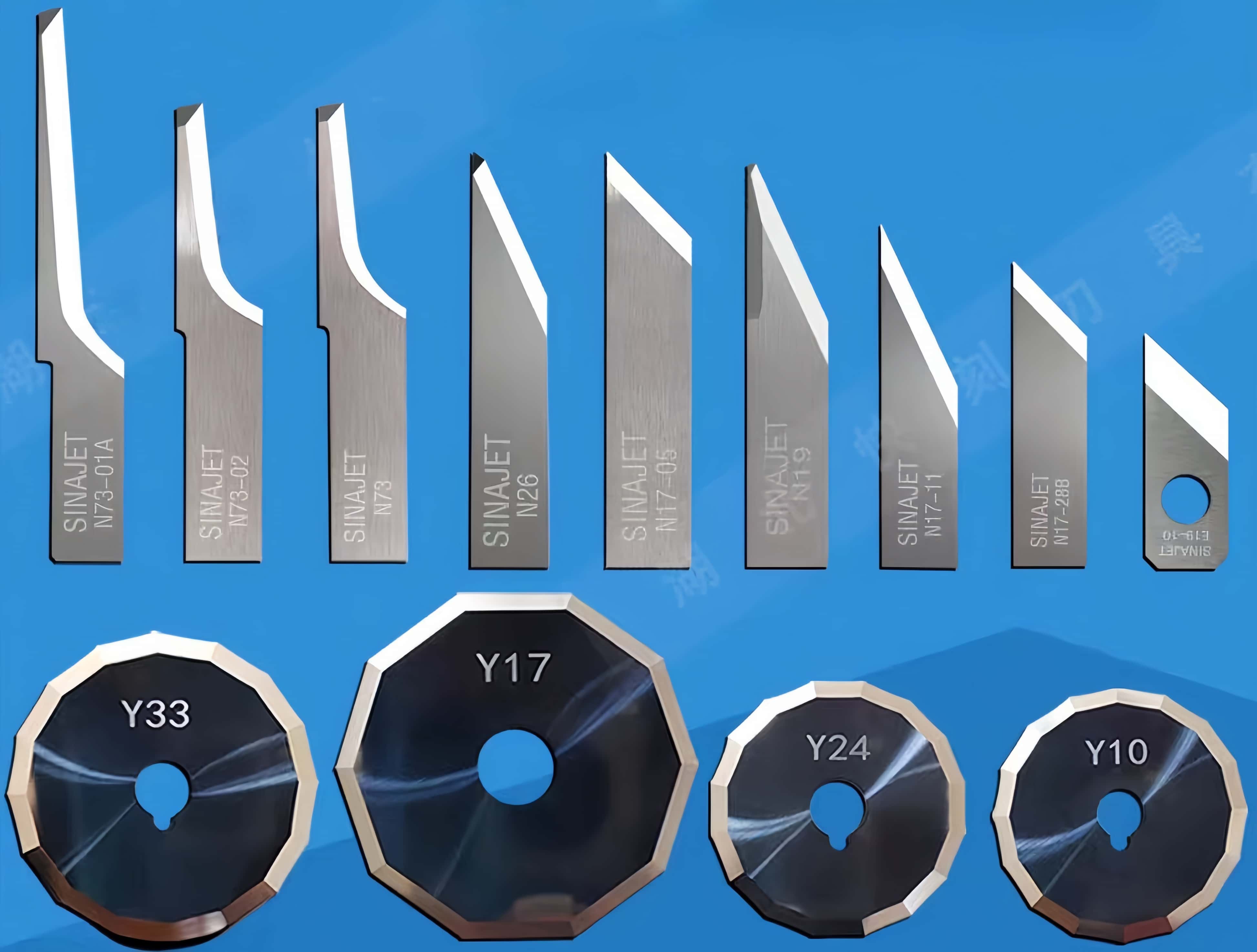

Sinajet Cutter Tungsten Carbide Knives/Knife Blades
N04 N04-1 N05 N61-02 N10-01 N10-05 N10-06 N11 N17 N17-01 N17-02 N17-03 N17-05 N17-06 N17-07 N17-08 N17-09 N17-10 N17-11 N17 -12 N17-13 N17-14 N17-15 N17-16 N17-19 N17-20 N17-21 N17-22 N17-23 N17-24 N17-24 N17-28B E19-10 N27-01 N28 N29 N29-01 N30 Y10 Y17 Y24 Y33 N10-05 N10-06 N11 N17 N17-01 N17-05 N19 N26 N26-1 N26-03 N30-1 N42 N61-02 N64 N69 N71 N73 N73-01 N73-01A N73-02 N73-04
Circular blade
Y24 Y10 Y17 Y33
Punching Tools/Notching bits
D03
Sinajet Q04 V-Groove Cutting Blades
