1. Safety First: Power off the cutter or bring it to a safe state before blade replacement.
2. Remove the Old Blade:
- Loosen the blade holder on your tangential or drag knife tool.
- Carefully slide or lift out the old blade.
3. Insert the New Blade:
- Align the new carbide drag knife blade in the blade holder. Ensure the blade's notch or friction point fits precisely into the holder's matching slot.
- Securely fasten the blade by tightening the screw or blade holder mechanism.
- The blade tip should protrude just enough—not thicker than your material thickness—to cut properly.
4. Adjust Settings:
- On the cutter control panel, change the tool setting to "Drag Knife" if switching from a tangential blade.
- Set the blade depth and pressure according to the material and blade angle (common blade angles are 30°, 45°, 60°).
- Perform a test cut to verify accuracy and adjust depth/pressure if needed.
5. Calibration:
- Some brands like Summa and Kongsberg may require calibration steps after blade replacement to ensure cutting precision.
Additional Notes:

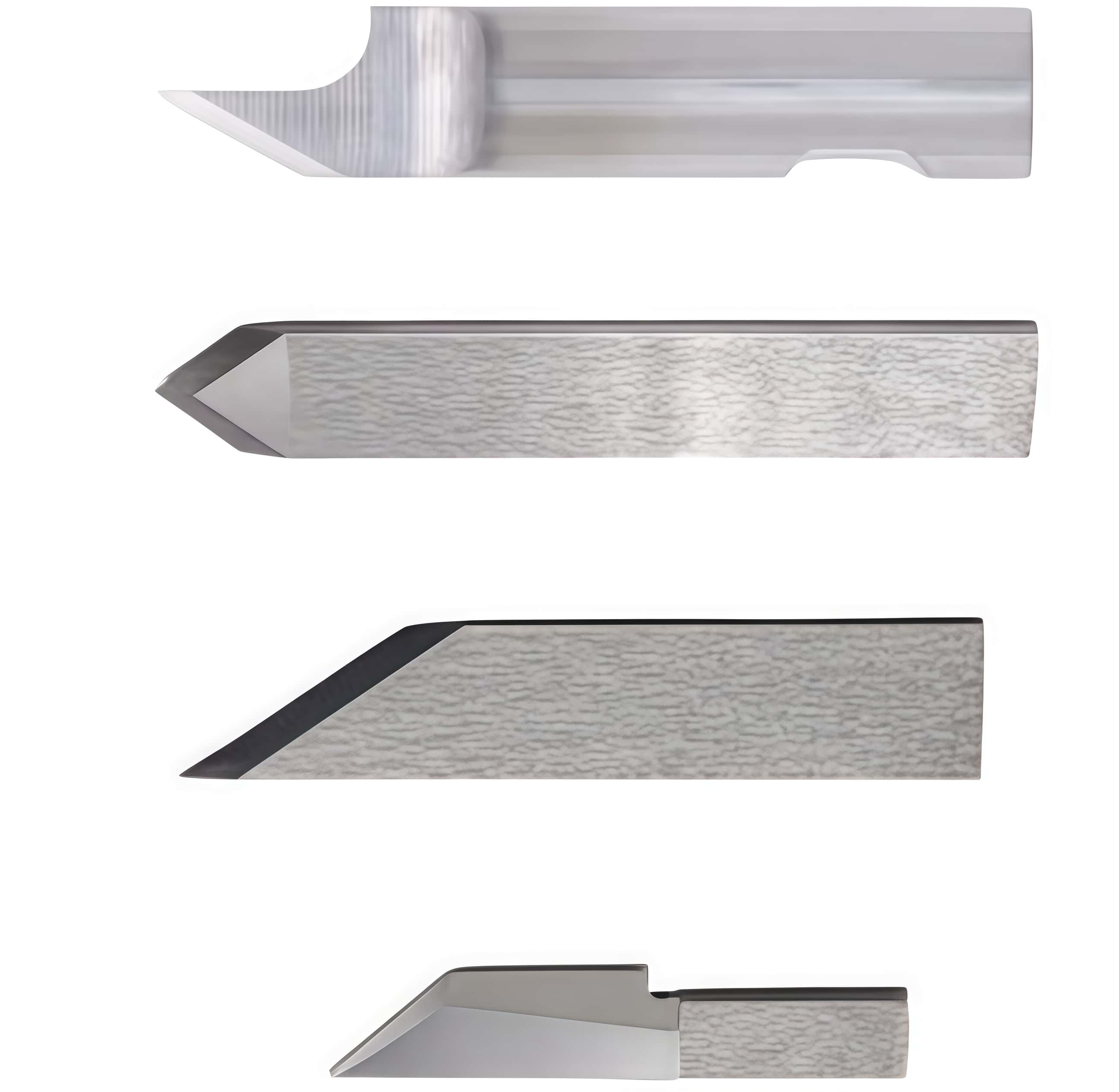

- Drag carbide knife blades are suitable for cutting vinyl, film, foam, cardboard, textiles, and other flexible materials.
- Quality blades made from tungsten carbide provide durability and precision.
- Use compatible blade holders designed for your cutter model (Summa, Zund, Esko, Multicam).
- For certain brands (e.g., Kongsberg), quick-release mechanisms like air chucks may be used to facilitate blade changes with minimal tools.
This summarized process applies to your Summa, Zund, Esko, and Multicam cutters for efficient and safe drag carbide knife blade installation.
Shenzhen Oyea Machinery Co., Ltd specializes in the production and distribution of carbide knife blades compatible with Summa, Zund, Esko, and Multicam equipment. Their offerings pertain to various sectors, including manufacturing, wholesale, retail sales, consumables, spare parts, OEM/ODM services, and factory solutions. With an extensive focus on delivering high-quality products and fostering reliability, Oyea Machinery stands out as a trusted partner in the global market.
The company has established a solid international presence, catering to regions such as Europe, the USA, the Middle East, and Asia. Countries served include Germany, France, the UK, Poland, the United States, Russia, Vietnam, Thailand, Indonesia, Singapore, the Netherlands, Switzerland, South Korea, Japan, Turkey, the Philippines, Hong Kong, Taiwan, Italy, Spain, Hungary, and the Czech Republic. Shenzhen Oyea Machinery remains committed to addressing diverse customer needs through tailored solutions and innovative practices. These efforts underscore their dedication to building sustainable partnerships and maintaining cutting-edge manufacturing standards, continually setting new benchmarks in the industry.
