iEcho Cutting Machine Series
BK4 Series: High-speed digital system with an integrated frame, ideal for automotive interiors, advertising, and furniture. It supports automatic tool changing and high-resolution camera positioning.
PK Series (PK0604, PK0705, PK1209): Automated, intelligent cutting systems for small-scale production of labels, stickers, and packaging (up to 10mm thickness).
TK Series: Tailored for textile, fabric, and flexible material cutting with high-speed, large-format capabilities.
GLSC/GLSA Series: Intelligent automatic multi-layer cutting systems designed for high-volume production.
iEcho Knife Blade Types & Applications
The tool system on iEcho machines allows for precise cutting depth control, including kiss-cutting (half-cutting) and through-cutting.
Electric Oscillating Tool (EOT): High-speed vibration cutting for, rigid, and corrugated materials.
Pneumatic Oscillating Tool (POT): Used for heavy-duty cutting of dense materials like rubber or foam (blades like E64).
Universal Cutting Tool (UCT/Drag Knife): Handles standard materials like cardboard and thin PVC.
Kiss-Cut Tool (KCT): Specialized for self-adhesive vinyl and sticker cutting.
Driven Rotary Tool (DRT): Perfect for textiles and soft materials.
V-Cut Tool: Specialized for producing "V" shaped grooves in foam board or corrugated cardboard.

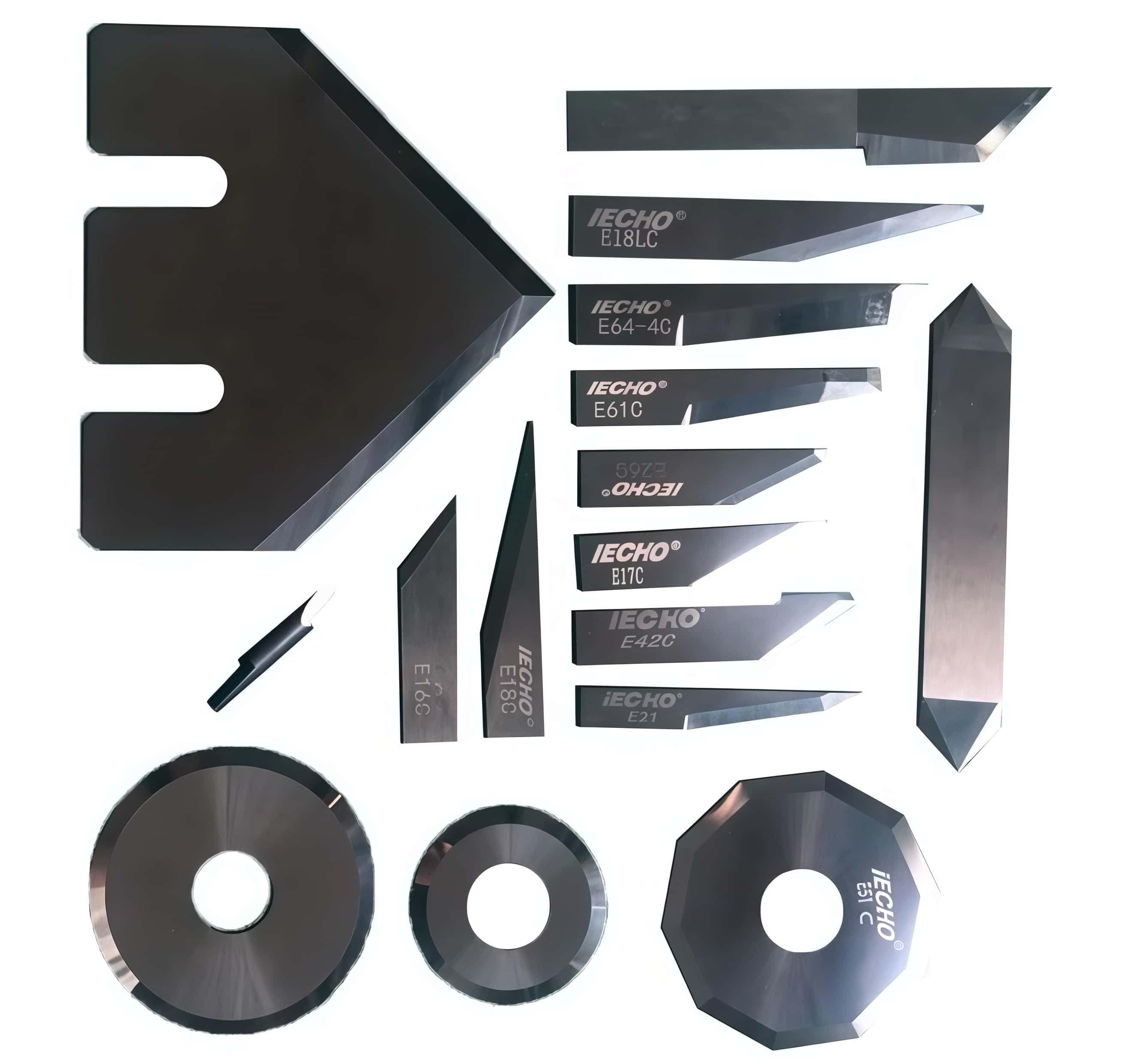

iEcho Knife Blade Models & Tool Compatibility
Blades are typically made of tungsten carbide and vary by thickness (0.6mm to 1.5mm) and tip angle.
|
Blade Model |
Type |
Tool Compatibility |
Typical Application |
|
Straight Drag |
Universal / KCT |
General-purpose, thin paper, and cardboard. |
|
|
V-Cut |
V-Cut Tool |
0°–45° chamfering for corrugated and sandwich boards. |
|
|
Oscillating |
EOT / POT |
E17 is a long-life version for deep cuts (up to 12mm). |
|
|
Oscillating |
EOT / POT |
High-precision blades for depths up to 26mm in rigid materials. |
|
|
Rotary |
DRT (Driven Rotary) |
Circular blades for cutting textiles and woven fibers. |
|
|
Heavy-Duty |
POT |
Thick 1.5mm blades for heavy foam or rubber (up to 57mm depth). |
· EOT (Electric Oscillating Tool): Uses high-frequency vibration to cut medium-density materials.
· POT (Pneumatic Oscillating Tool): Air-driven for high-speed cutting of thick, dense materials like honeycomb board.
· KCT (Kiss-Cut Tool): Specifically for cutting the top layer of adhesive materials (vinyl/stickers) without piercing the backing.
· DRT (Driven Rotary Tool): Rotates a circular blade at high speeds to reduce drag when cutting fabrics.
-
