Colex Sharpcut Digital Flatbed Cutter Types And Knives Knife Blades

Colex Sharpcut Digital Flatbed Cutter Types And Knives Knife Blades

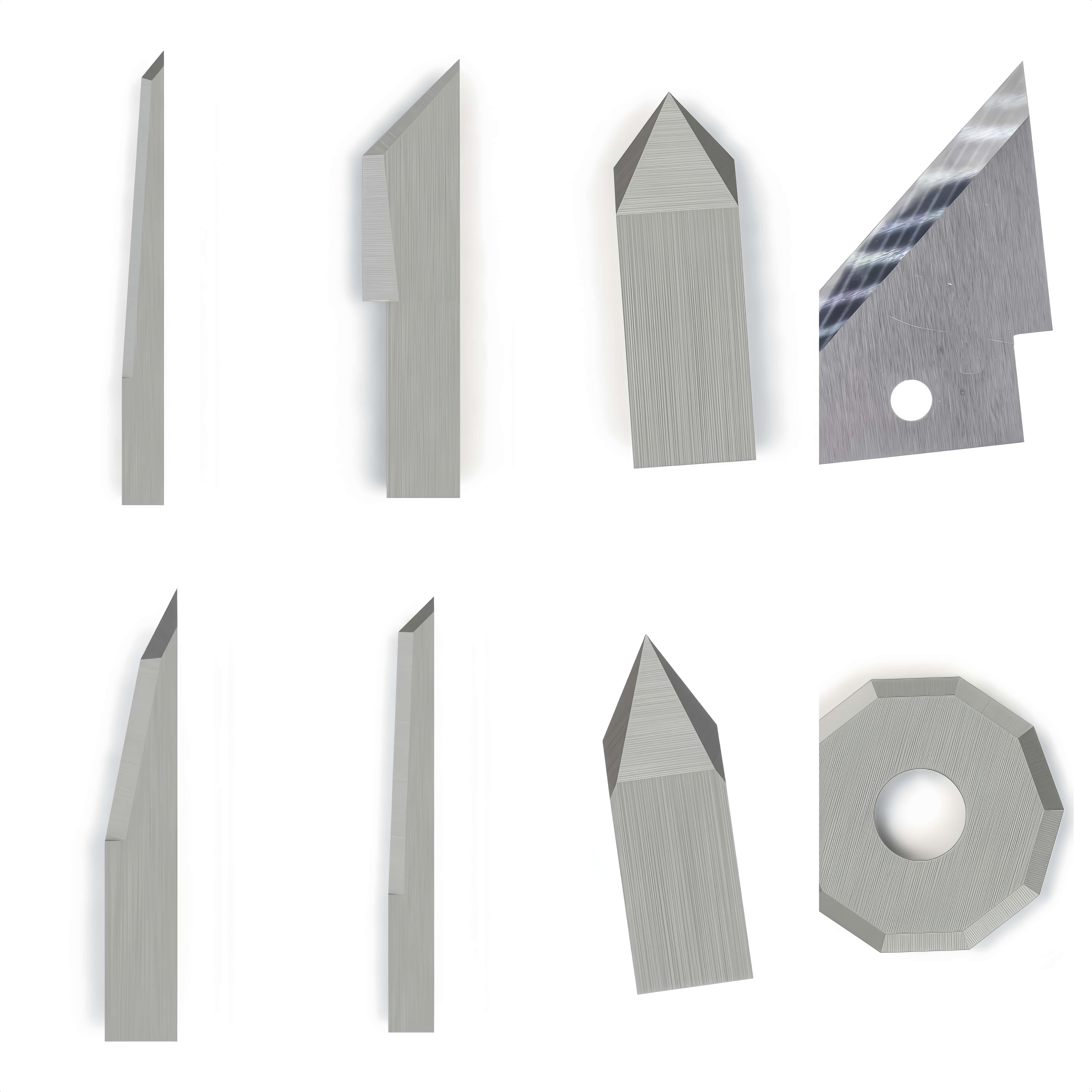

COLEX T00330 Universal Knife Blades Compatible Cutting Systems

The Colex SharpCut series is a line of industrial digital flatbed cutters designed for high-speed routing and precision cutting across various materials. All models feature a Universal Triple Tool Head that allows for quick transitions between routing, knife-cutting, and creasing.

Colex SharpCut Types
The series is primarily categorized by its table size and workflow configuration:
SharpCut SX Series (Static Table): Designed for rigid substrate finishing and signage, these systems use a static bed with multi-zone vacuum systems.
SharpCut SXC Series (Conveyor Table): Features an automated conveyor system to speed up the removal of finished jobs and handle roll-to-roll media or fabrics.
SharpCut PX Series: Specialized for packaging applications such as corrugated containers, folding cartons, and point-of-purchase (POP) displays.

Table Sizes & Models
Common work areas include:
5' x 5' (SX1717 / SXC1717)
5.5' x 10.5' (SX1732 / SXC1732)
10' x 5' (SX3216 / SXC3216)
10' x 10' (SX3232 / SXC3232)

Common Blade Replacements

Blade Type	Part Number	Typical Application
Kiss-Cutting Blade	T00212	0.2 mm to 0.5 mm label cutting
Double-Edge Blade	T00312 / T00313	80° or 60° for rigid plastics and vinyl
Oscillating Blade	T00418 / T00428	Ranges from 6 mm to 32 mm for varied foam thicknesses
V-Cut Blade	T00340	Specialized for folding materials
Coroplast Blade	T00335 / T00336	30° or 45° angles for fluted plastic
