Aol Sinajet Ruk Emma Cutting Systems Types And Knives Blades

Common Cutting System Tools

These manufacturers offer modular tools that are often interchangeable or specific to certain machine series:

· Oscillating Knife: Uses high-frequency vibration to cut through thicker or denser materials like foam, honeycomb board, rubber, and heavy cardboard.

· Active/Passive Circular Knife: Best suited for textiles, fabrics, and thin flexible materials.

· Drag Knife: Used for thinner substrates like film, stickers, and standard paper.

· V-Cut Tool: Designed for miter cutting at specific angles (e.g., 90° or 120°) to create folds in rigid boards.

· Kiss-Cut Tool: Precision tool for cutting only the top layer of self-adhesive materials.

· Pneumatic Knife: Driven by air for heavy-duty cutting of tough materials like thick rubber sheets or high-density foam.

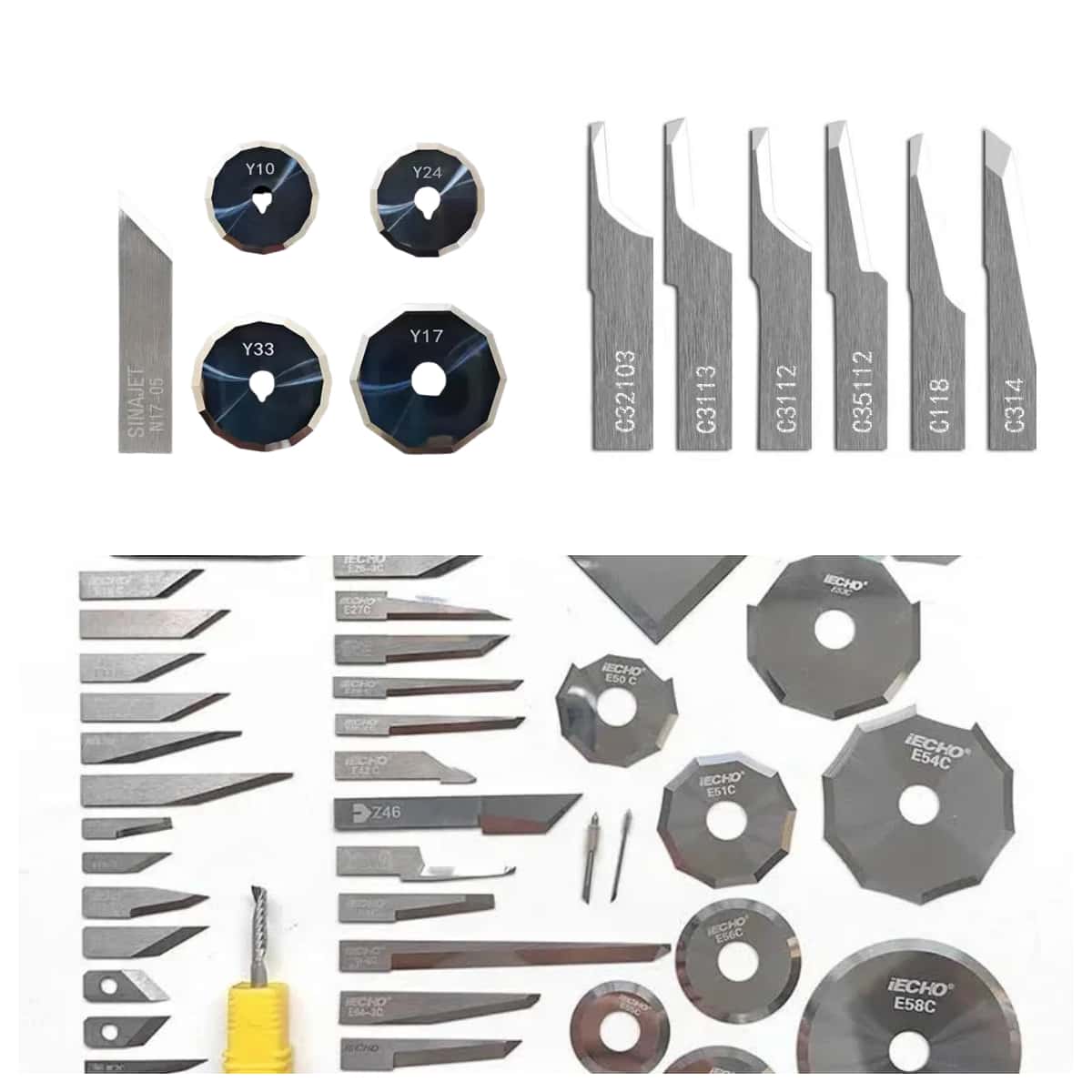

Blade Types and Specifications

Blades are primarily crafted from tungsten carbide for high durability. Selecting the correct blade depends on the material's thickness and density.

Selection Considerations

· Blade Length: Ensure the blade is at least 5mm longer than the material's thickness.

· Blade Angle: Use 0° blades for low-density materials; steeper angles (30°–45°) are better for denser substrates.

· Edge Type: Single-edged blades are standard, while double-edged blades (like RUKDP004) aid penetration in flexible or difficult materials.

•
  Emma Oscillating Knives Knife Blades For Emma Cutting Machine Cutting System
•
  Sinajet Cutter Tungsten Carbide Knives/Knife Blades
•
  RUK Carbide Cutter Knives Knife Blades Router Bits Replacement Price
•
  Aol Cnc Vibrating Knife Blade And Round Knife Blades
